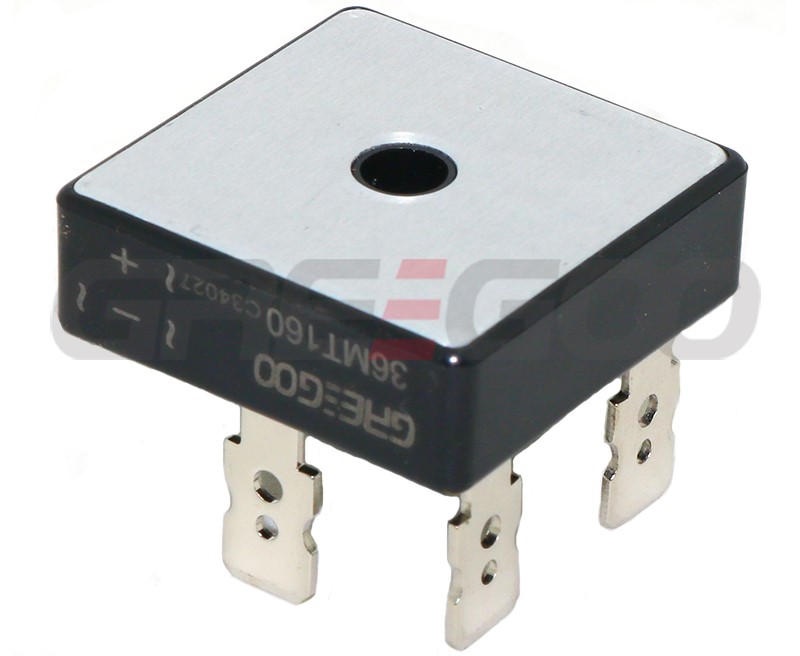

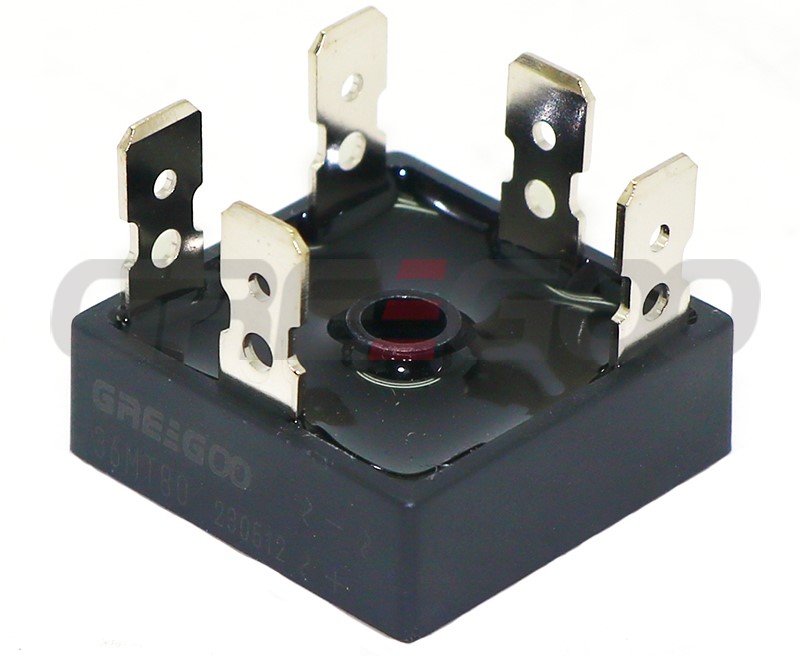

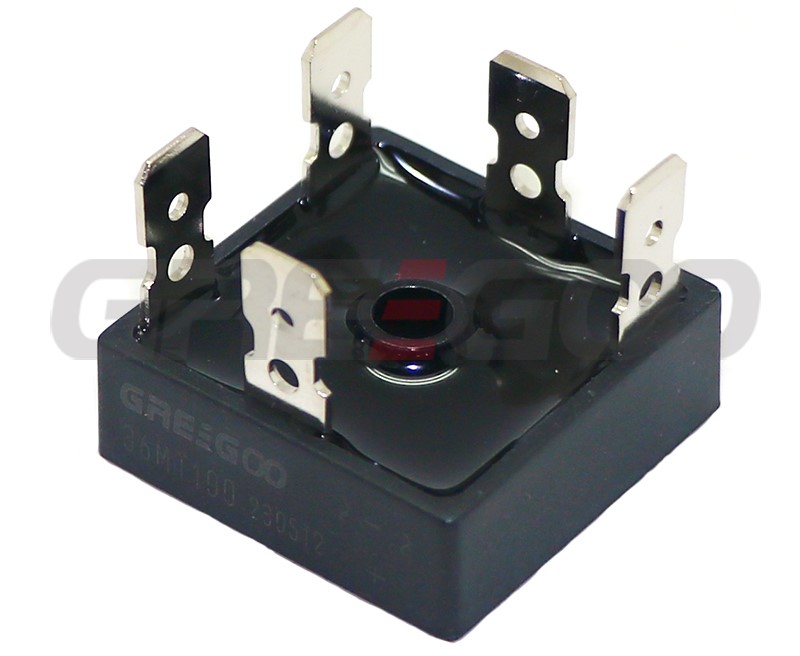

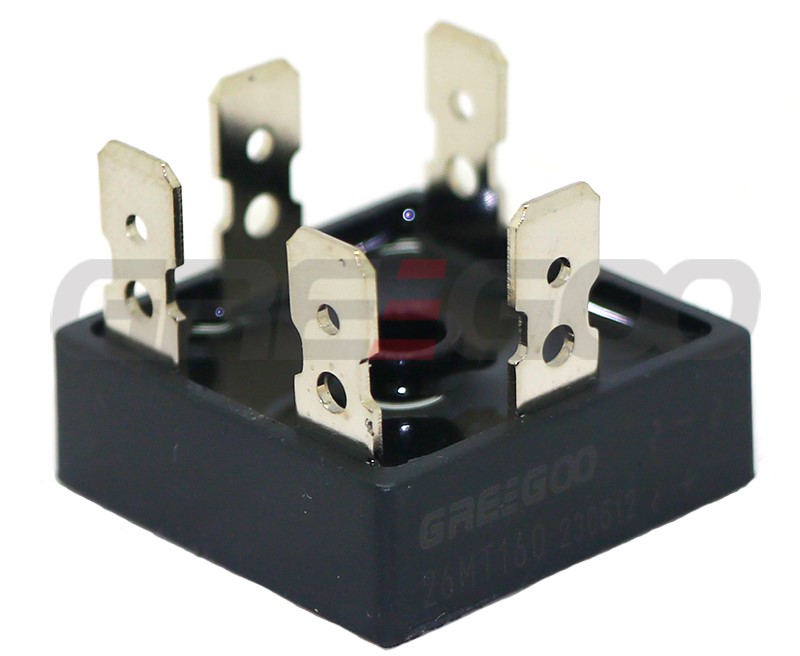

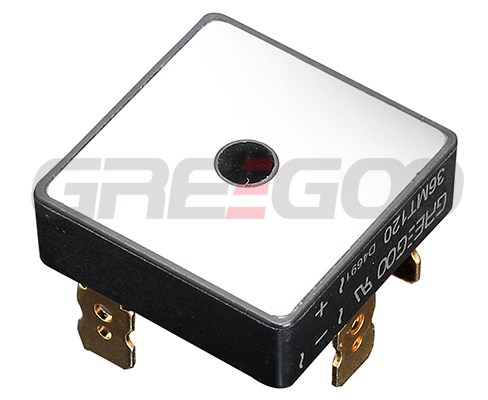

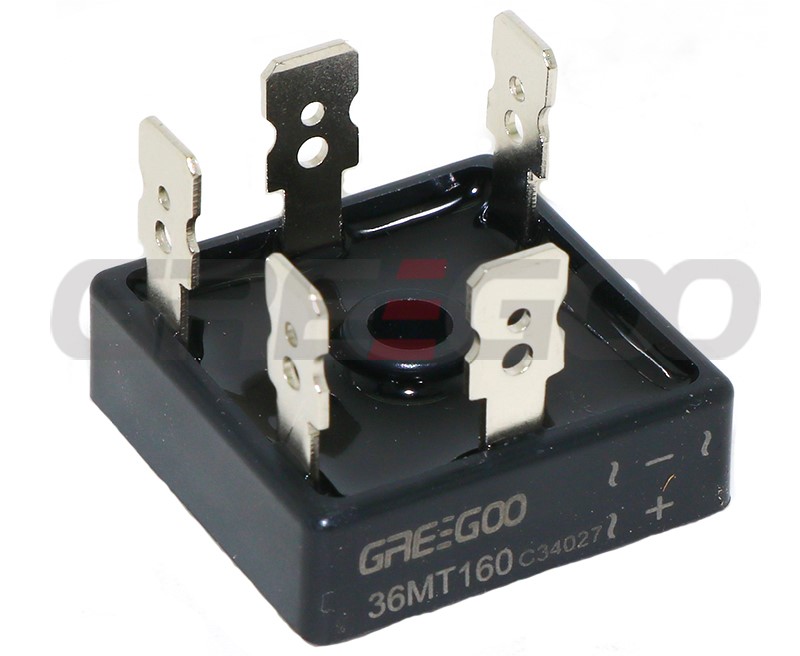

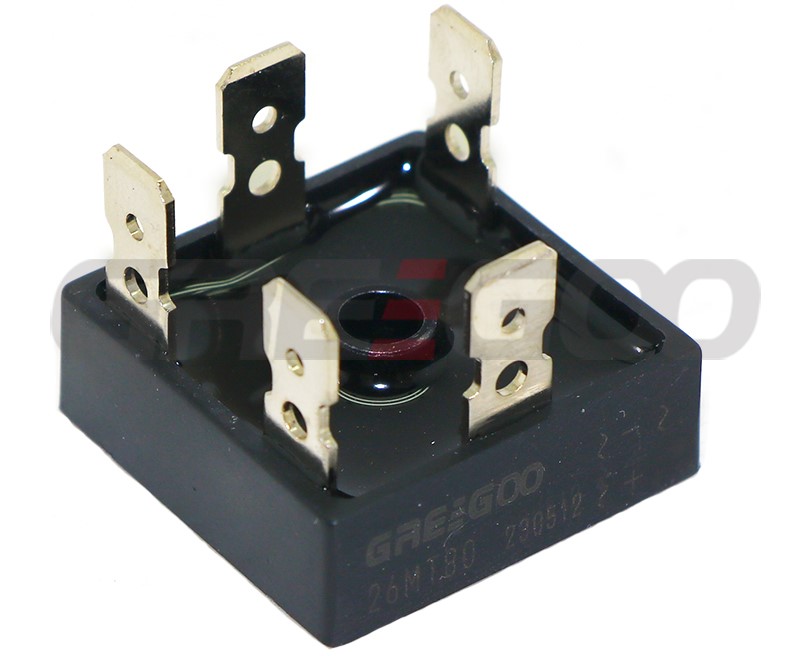

Three phase bridge rectifier 26/36MT 25/35A
Application
- Power supply for DC power device
- Input rectifier for PWM converter
- DC motor
- Rectifying device for frequency convertors with power under/and 2.2KW
Feature
- Glass-passivated chip ensures high stability
- Low forward voltage drop
- Isolation voltage 2500V～
- Small volume, light weight
- Low thermal resistance, high heat-conductivity, low temperature rise
| Order # | V RRM | I O | @T | I FSM |
| V | A | ℃ | A | |
| 26MT80 | 800 | 25 | 55 | 300 |
| 26MT100 | 1000 | 25 | 55 | 300 |
| 26MT120 | 1200 | 25 | 55 | 300 |
| 26MT160 | 1600 | 25 | 55 | 300 |
| 36MT80 SKD35-08 | 800 | 35 | 55 | 400 |
| 36MT100 SKD35-10 | 1000 | 35 | 55 | 400 |
| 36MT120 SKD35-12 | 1200 | 35 | 55 | 400 |
| 36MT160 SKD35-16 | 1600 | 35 | 55 | 400 |
