10-40A 3 phase SSR
As premier 3 phase solid state relay manufacturer in China, GREEGOO takes pride in our state-of-the-art factory. Explore our range of high-quality 3 phase solid state relay at competitive prices. Experience excellence with GREEGOO – your trusted partner for superior 3 phase solid state relay solution. 3 phase solid state relay 25A | 3 phase solid state relay 40A | 3 phase solid state relay 10A | 3 phase ssr relay 40A | 3 phase ssr relay 25A | 3 phase ssr relay 10A | 60A/100A 3 phase solid state relay | 3 phase solid state relay 200A | Solid state contactor | 3 phase ssr relay 500A
Q1: What type of 3 phase solid state relay can you supply?
A1: Greegoo can offer triacs output 10A, 25A and 40A and SCR output 3 phase solid state relay at 40A, 60A, 80A, 100A, 120A, 150A, 200A, 300A, 400A and 500A integrated, 500A to 1800A can be assembled with heatsink and axial fan.
Q2: How about the control voltage of solid state relay you can offer?
A2: About the control voltage, we have 4-32VDC, 80-265VAC, 20-265VAC, 18-36V AC/DC.
Q3: Do you have analog control SSR relay?
A3: Yes, we have, it's our control solid state relay, the control signal can be 0-5V, 0-10V, 4-20mA or potentiometer or 3 in one type of control relay.
Q4: How many installation type of your SSR?
A4: We have panel mount, plug-in type, PCB type, DIN rail mount and Fast-on terminals connection type.
Q5: Exception of normal open solid state relay, can you produce normal close one?
A5: Yes, we can, please direct your enquiry to us for more information.
Q6: About DC solid state relay, how many types can you offer?
A6: We have panel mount 10A to 200A, modular type 120A to 2000A under 60VDC, 100VDC, 200VDC, 400VDC, 600VDC and 1200VDC. DC switching solid state relay, DC solid state regulator, Dc motor reversing Solid state relay and DC automotive relay.
Q7: About single phase solid state relay, there are so many types, how to choose?
A7: Our SSR relays are ideal replacement of Crydom, Fotek, Omron, Celduc, Carlo Gavazzi, Schneider and Crouzet etc.
Q9: How many channels output solid state relay do you have?
A9: We have 1 channel, 2 channel, 3 channel, 4 channel, 5 channel, and 8 channel at integrated version and 12 channel output at assembly condition.
Q10: What is the advantage of Greegoo's Solid state relay?
A10: Greegoo is enjoying a brisk demand in the overseas market for high quality. We are using triacs for 10A, 25A and 40A, 40A and more are using SCR output, T3 copper base, ON brand optocoupler, integrated PCB design and new but perfect electronic components to guarantee the quality of Greegoo's Solid state relays.

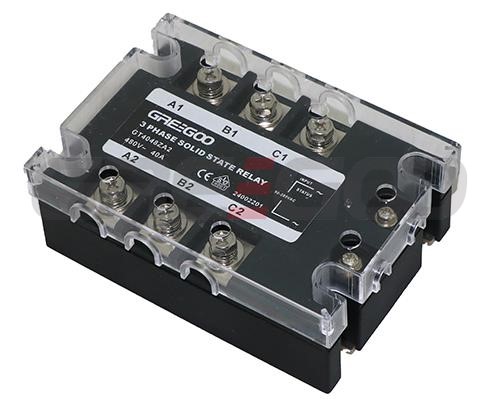

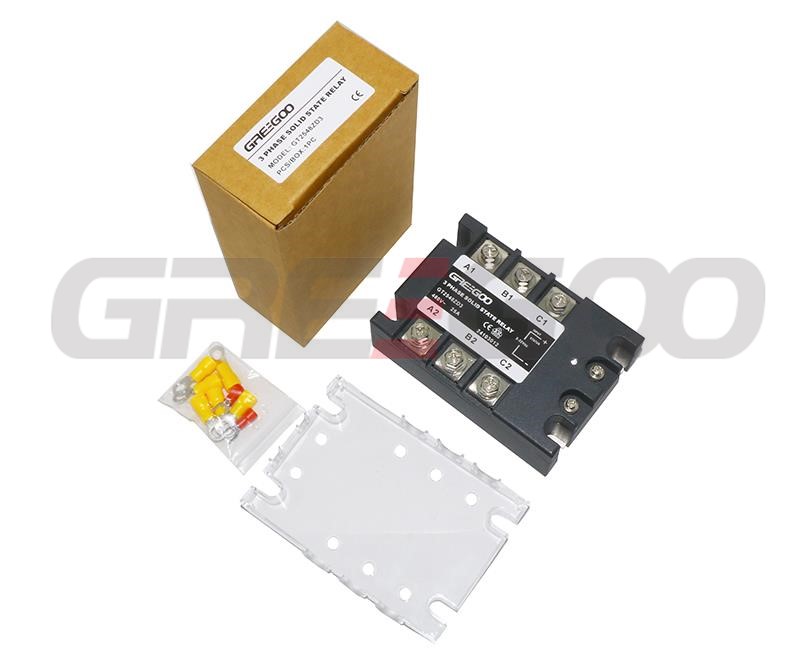

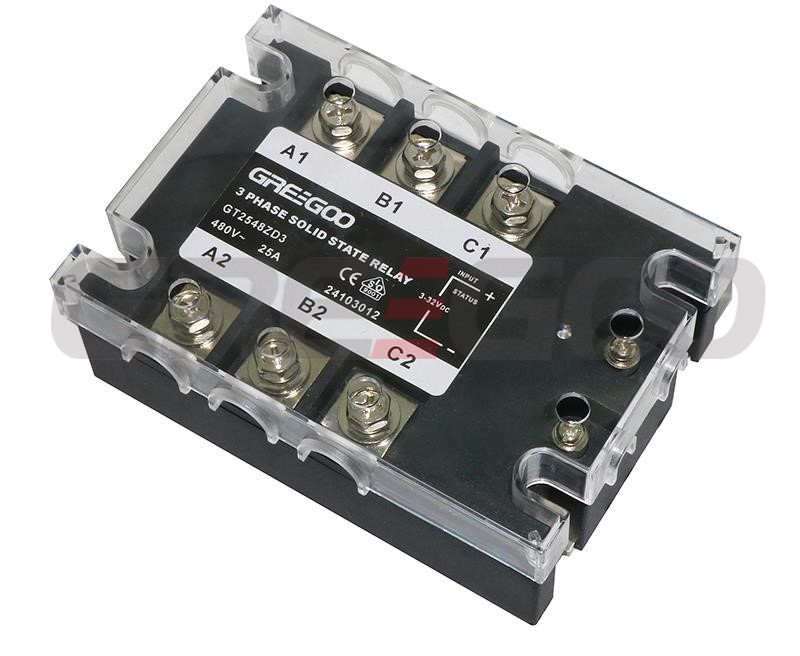

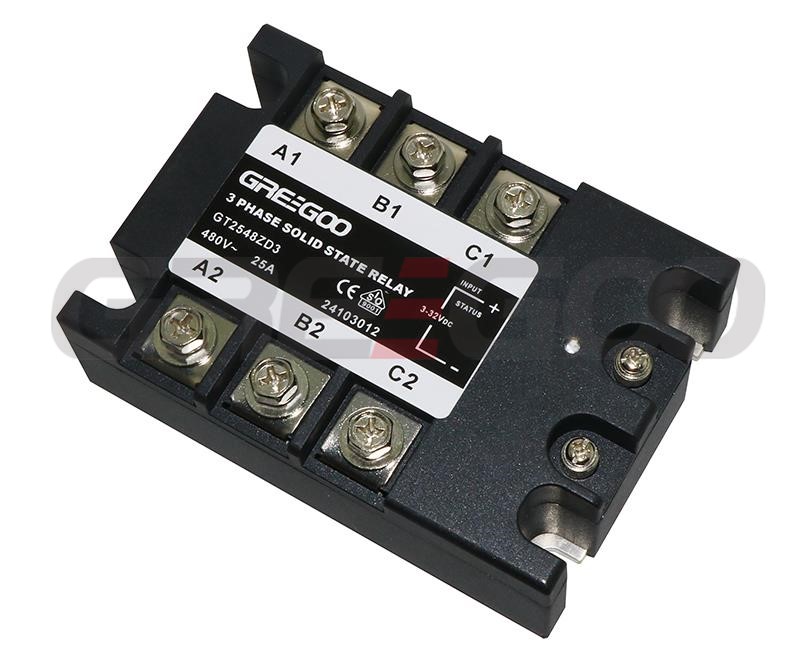

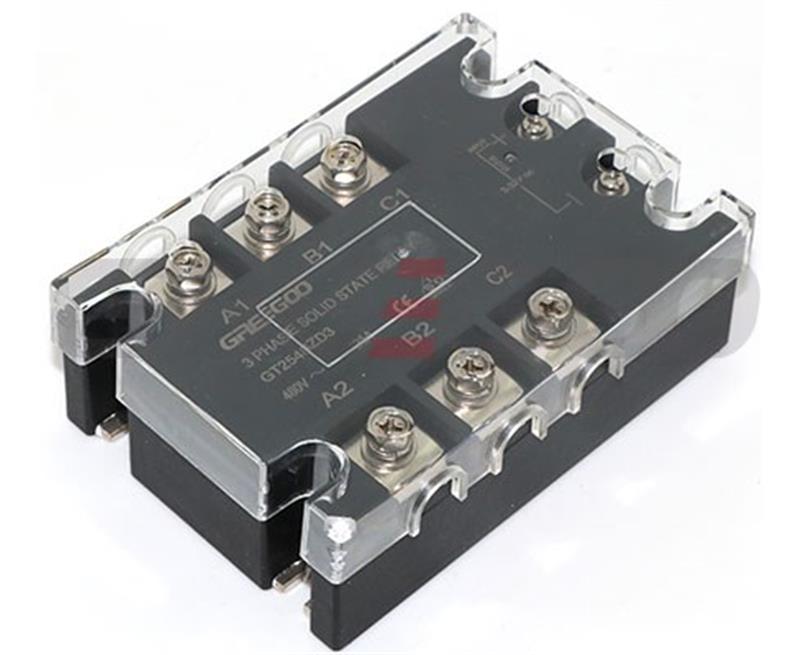

3 phase solid state relays (Triacs output 10A to 40A)
GT series three phase Solid State Relays is used three phase loads. triacs output. GT series is Dual triacs Power Hybrid technology provides highly efficient thermal management for greatly increased cyclic life.
Feature:
- Rated operational current 3X10, 3X15, 3X25, 3X40A.
- Both “Zero crossing” & “Random Switching” versions.
- Input Voltage Range 4 to 16 Vdc, 4 to 32 Vdc, 90 to 250Vac.
- 2500 Vrms Optical Isolation.(input/output)
- LED-indication for control input.
Symbo Meaning
GT1234
G - Greegoo
T - Three phase
1 - 10-10A, 15-15A, 25-25A, 40-40A
2 - 48-480V
3 - Z-zero control, R-random control
4 - D1-4-16Vdc, D3-4-32Vdc A2-90-250Vac
For example: GT4048ZD3, 3 phase, 40A, 480Vac, 3-32Vdc control
Voltage | Control Voltage | Operational current | |||
10A | 15A | 25A | 40A | ||
480 VAC "Zero crossing switching" | 4~16 Vdc | GT1048ZD1 | GT1548ZD1 | GT2548ZD1 | GT4048ZD1 |
4~32 Vdc | GT1048ZD3 | GT1548ZD3 | GT2548ZD3 | GT4048ZD3 | |
90~250Vac | GT1048ZA2 | GT1548ZA2 | GT2548ZA2 | GT4048ZA2 | |
480 VAC Random control | 4~16 Vdc | GT1048RD1 | GT1548RD1 | GT2548RD1 | GT4048RD1 |
4~32 Vdc | GT1048RD3 | GT1548RD3 | GT2548RD3 | GT4048RD3 | |
90~250Vac | GT1048RA2 | GT1548RA2 | GT2548RA2 | GT4048RA2 |
![40A-120A 3 phase solid state relays](/UploadFiles/BigImages/copy-GTH12048ZD3-1.jpg)
40A-120A 3 phase solid state relays
Solid state switching contactor, SCR output, 40A, 60A, 80A, 100A, 120A SSR, 3 phase SSR relays.
View More![GTS34 GTS31 GTS32 Three phase Solid state relay with micro switch or pushbutton control](/UploadFiles/BigImages/copy-GTH30066ZD3-SSR1202103021211184954.jpg)
GTS34 GTS31 GTS32 Three phase Solid state relay with micro switch or pushbutton control
10A to 500A, 3 phase, micro switch or push button control, solid state contactor.
View More![Solid state contactors](/UploadFiles/product/smallSolid-State-Relays-1201702240854527668.jpg)

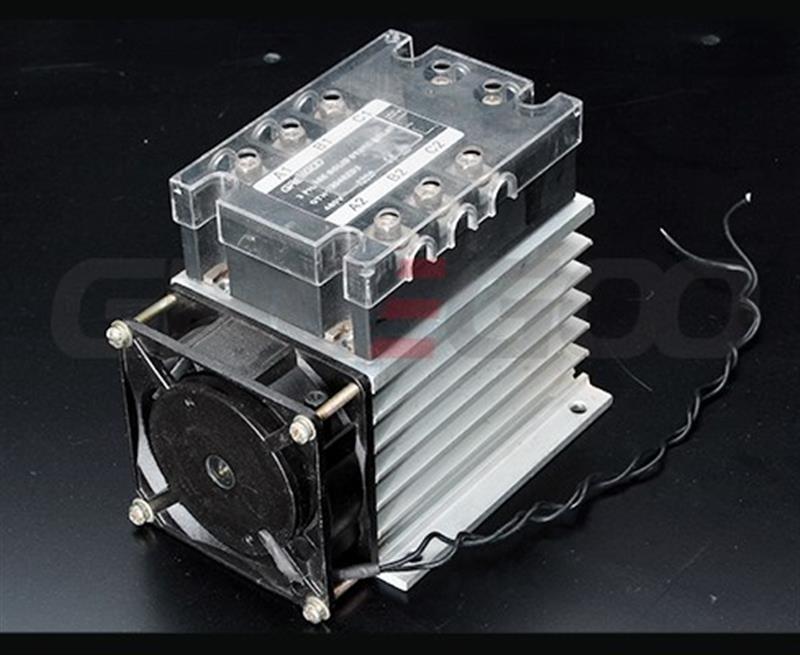

Solid state contactors

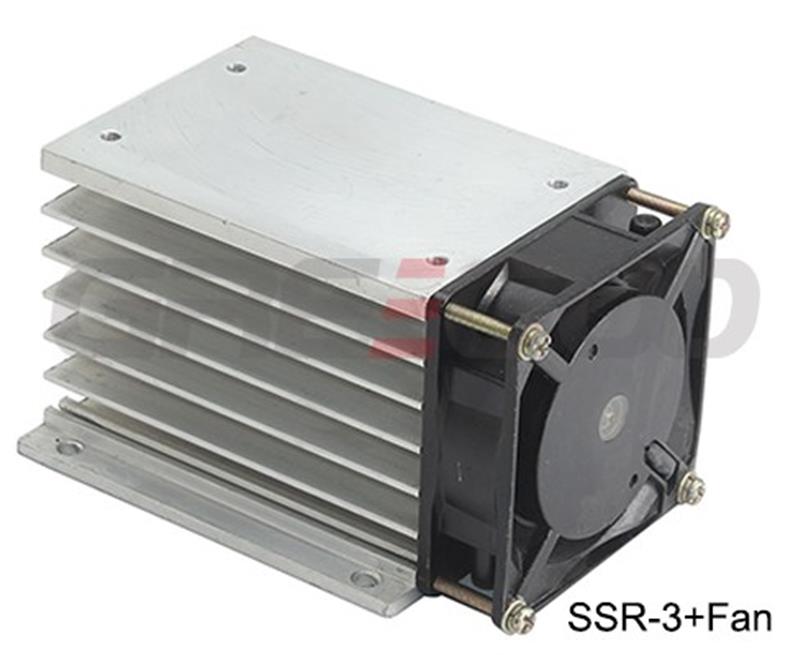

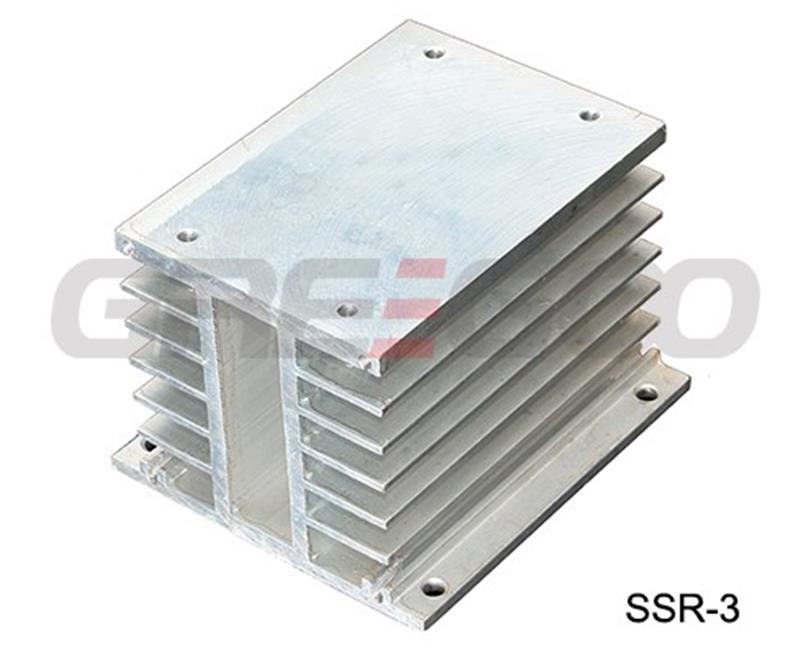

3 phase solid state contactors, heatsink, axial fan, thermostat and SSR assemblies, 200A to 1800A, ready to use.
