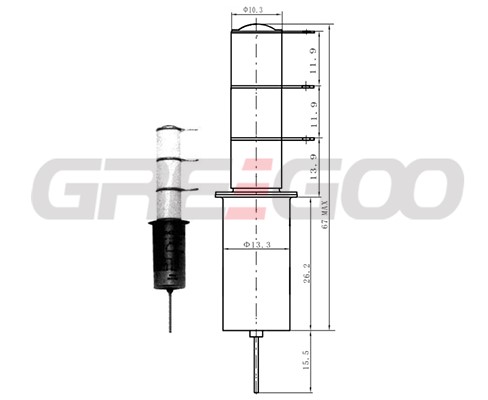

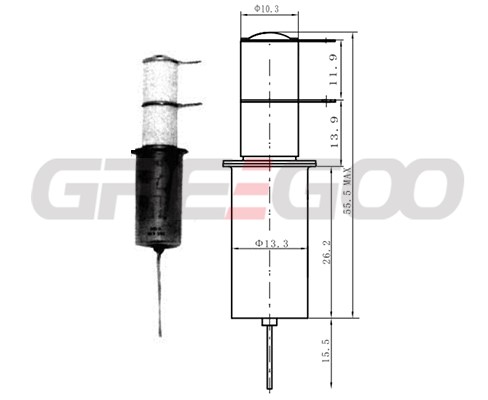

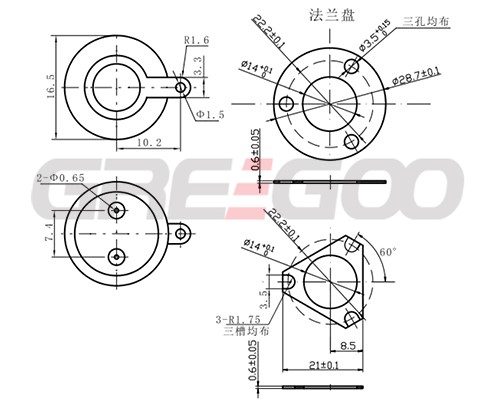

10KV HV Relay GHR-43A/B/C

◆ Compact, space-saving design
◆ Vacuum dielectric for power switching low current loads.
◆ Widely used in antenna coupler applications

◆ Short actuator, low profile, 10kV relay

Specification

Product Specification			Units	GHR43A	GHR43B	GHR43C
Contact Form				A	B	C
Contact Arrangement				SPST-NO	SPST-NC	SPDT
Test Voltage,(kV, Peak), Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz)			KV Peak	11	11	11
Rated Operating Voltage, (kV,Peak), Contacts & to Base (15 μA Leakage Max.)		DC or 60Hz	KV Peak	10	10	10
		2.5MHz	KV Peak	7	7	7
		16MHz	KV Peak	6	6	6
		32MHz	KV Peak	4	4	4
Continuous Current, Carry Max		DC or 60Hz	Amps	25	25	25
		2.5MHz	Amps	20	20	20
		16MHz	Amps	13	13	13
		32MHz	Amps	10	10	10
Coil Hi -Pot (V RMS, 60 Hz)			V	500	500	500
Capacitance	Across Open Contacts		pF	1.2	1.2	1.2
Capacitance	Contacts to Ground		pF	1.2	1.2	1.2
Resistance, Contact Max @ 1A, 28Vdc			Ω	0.02	0.02	0.02
Operate Time, Max			ms	10	10	10
Release Time, Max			ms	10	10	10
Operating Temperature Ambient			°C	-55~ 125	-55~ 125	-55~ 125
Shock, 1/2 Sine11ms (Peak)			G’s	50	50	50
Vibration, Sine (10-2000 Hz Peak)			G’s	10	10	10
Mechanical Life			Cycles	2 million	2 million	2 million
Weight			g	28	28	28

Coil Rating

How to order
