15KV GAS filled HV Relay GHR-15

Home Products Vacuum Relay and CapacitorGas filled high voltage relay15KV GAS filled HV Relay GHR-15

15KV GAS filled HV Relay GHR-15
15KV GAS filled HV Relay GHR-15
15KV GAS filled HV Relay GHR-15
15KV GAS filled HV Relay GHR-15
15KV GAS filled HV Relay GHR-15

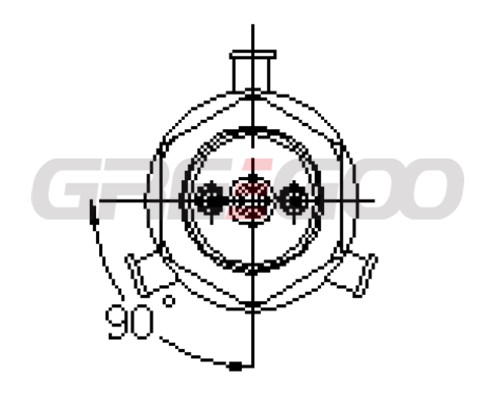

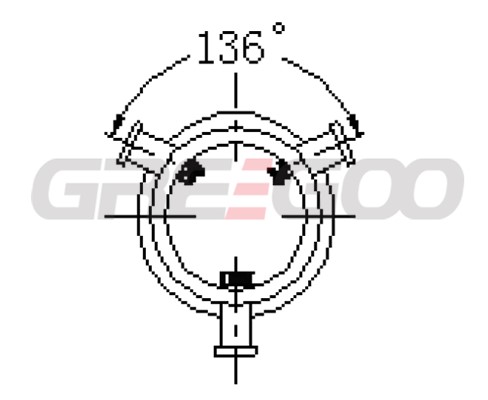

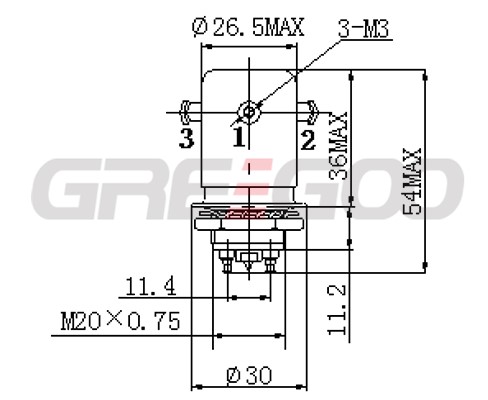

Specification

15KV GAS filled HV Relay GHR-15

Product Specification

Units         .

GHR-15-WP

Contact Form



C

Contact Arrangement



SPDT

Test Voltage,(kV, Peak), Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz)

KV Peak

17

Rated Operating Voltage,

(kV,Peak),

Contacts & to Base

(15 μA Leakage Max.)

DC or 60Hz

KV Peak

15

2.5MHz

KV Peak

-

16MHz

KV Peak

-

32MHz

KV Peak

-

Continuous Current, Carry Max

DC or 60Hz

Amps

12

2.5MHz

Amps

-

16MHz

Amps

-

32MHz

Amps

-

Coil Hi -Pot (V RMS, 60 Hz)

V

500

Capacitance

Across Open Contacts

pF

0.5

Contacts to Ground

pF

1

Resistance, Contact Max @ 1A, 28Vdc

Ω

1

Operate Time, Max

ms

15

Release Time, Max

ms

9

Operating Temperature Ambient

°C

-55~ 125

Shock, 1/2 Sine11ms (Peak)

G’s

50

Vibration, Sine (10-2000 Hz Peak)

G’s

10

Mechanical Life

Cycles

1 million               .

Weight

g

84

Coil Rating

COIL RATINGS

Nominal, Volts dc

220

110

27

24

12

Pick-up, Volts dc,Max

150

70

16

16

8

Drop-Out, Volts dc,Min

10

2

1.5

1.5

0.5

Coil Resistance (Ω±10%)

10000

5400

270

180

48

※ Ratings listed are for 25°C

Product Details



◆SF-6 gas-filled for power switching on the"make"
◆Long load life in capacitive discharge applications

◆Recommneded for ESD testing and safety interlock applications

◆Consult factory for load switching applications
