15KV HV Relay GHR-13/013 DPDT

Copper contacts, capable of carrying large currents, double-pole double-throw, commonly used in circuits requiring feedback signals.
Vacuum medium, capable of effectively extinguishing arcs when opened under load.
Bolted high-voltage connectors for simple wiring.

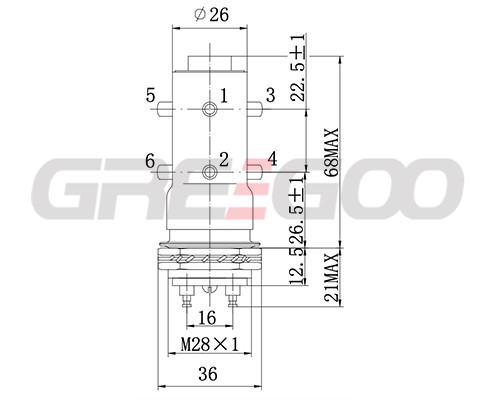

Specification

Specification			Units	GHR-13/013
Contact Form				C
Contact Arrangement				DPDT
Test Voltage,(kV,Peak),Test Max,Contacts &to Base(15μ A Leakage Max.,dc or 60Hz)			KV Peak	15
Rated Operating Voltage,(kV,Peak), Contacts &to Base (15 μ A Leakage Max.)		DC or 60Hz	KV Peat	12
		2.5MHz	KV Peak	10
		16MHz	KV Peak	8
		32MHz	KV Peak	-
Continuous Current Carry Max		DC or 60Hz	Amps	50
		2.5MHz	Amps	30
		16MHz	Amps	17.5
		32MHz	Amps	10
Coil Hi-Pot (V RMS,60 Hz)			V	500
Capacitance	Across Open Contacts		pF	1
Capacitance	Contacts to Ground		pF	1.5
Resistance,Contact Max @1A,28Vdc			Ω	0.012
Operate Time,Max			ms	20
Release Time,Max			ms	8
Operating Temperature Ambient			℃	-55~+125
Shock,1/2 Sine11ms (Peak)			G's	50
Vibration,Sine(10-2000Hz Peak)			G's	10
MechanicalLife			Cycles	1million
Weight			g	380

Coil Rating

Nominal Voltage (DC): 26.5V
Maximum Pick-up Voltage (DC): 16V
Minimum Drop-Out Voltage (DC): 1-10V
Coil Resistance (Ω ±10%): 285Ω
