20KV HV Relay GHR-10

Home Products Vacuum Relay and Capacitor20KV Vacuum Relay20KV HV Relay GHR-10

20KV HV Relay GHR-10
20KV HV Relay GHR-10
20KV HV Relay GHR-10
20KV HV Relay GHR-10

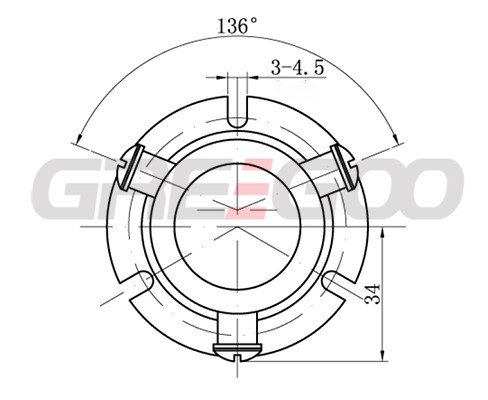

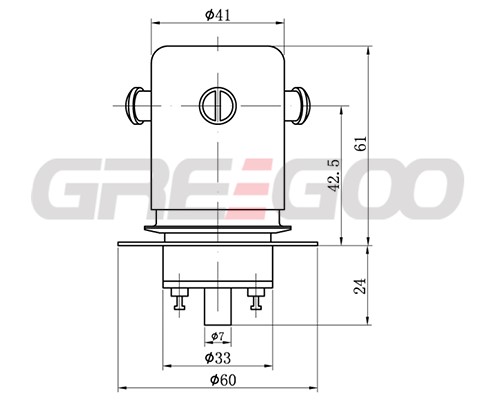

Product Details

20KV HV Relay GHR-10



◆ Specifically designed for load switching applications

◆ Durable tungsten contacts for hot load switching



Specification
Product Specification

Units

GHR-10

Contact Form



C

Contact Arrangement



SPDT

Test Voltage,(kV, Peak), Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz)

KV Peak

22

Rated Operating Voltage,

(kV,Peak),
Contacts & to Base
(15 μA Leakage Max.)

DC or 60Hz

KV Peak

20

2.5MHz

KV Peak

-

16MHz

KV Peak

-

32MHz

KV Peak

-

Continuous Current, Carry Max

DC or 60Hz

Amps

50

2.5MHz

Amps

-

16MHz

Amps

-

32MHz

Amps

-

Coil Hi -Pot (V RMS, 60 Hz)

V

500

Capacitance

Across Open Contacts

pF

3

Contacts to Ground

pF

3.5

Resistance, Contact Max @ 1A, 28Vdc

Ω

0.025

Operate Time, Max

ms

30

Release Time, Max

ms

8

Operating Temperature Ambient

°C

-55~ 125

Shock, 1/2 Sine11ms (Peak)

G’s

50

Vibration, Sine (10-2000 Hz Peak)

G’s

10

Mechanical Life

Cycles

1million

Weight

g

300

Coil Rating

COIL RATINGS

Nominal, Volts dc

24

Pick-up, Volts dc,Max

16

Drop-Out, Volts dc,Min

1-10

Coil Resistance (Ω±10%)

190

※ Ratings listed are for 25°C
