◆ Durable tungsten contacts for hot load switching
◆ Vacuum dielectric for low and stable contact resistance

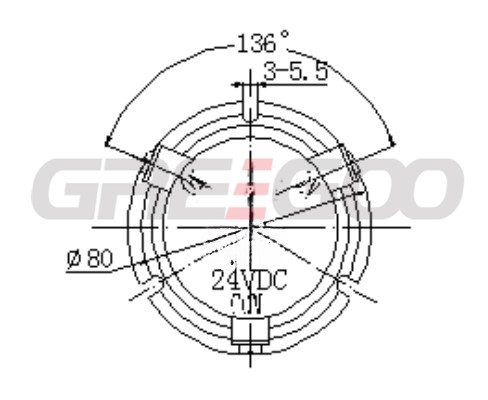

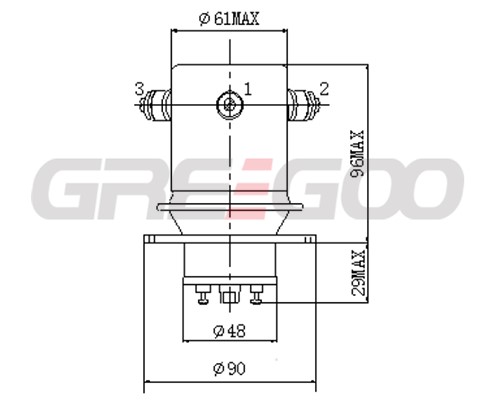

Product Specification |
Units |
GHR-6/055 |
GHR-6/055A |
||
Contact Form |
C |
C |
|||
Contact Arrangement |
SPDT |
SPDT |
|||
Test Voltage,(kV, Peak), Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz) |
KV Peak |
30 |
30 |
||
Rated Operating Voltage,
(kV,Peak), |
DC or 60Hz |
KV Peak |
25 |
25 |
|
2.5MHz |
KV Peak |
- |
18 |
||
16MHz |
KV Peak |
- |
12 |
||
32MHz |
KV Peak . |
- |
- |
||
Continuous Current, Carry Max |
DC or 60Hz |
Amps |
75 |
150 |
|
2.5MHz |
Amps |
- |
70 |
||
16MHz |
Amps |
- |
45 |
||
32MHz |
Amps |
- |
- |
||
Coil Hi -Pot (V RMS, 60 Hz) |
V |
500 |
500 |
||
Capacitance |
Across Open Contacts |
pF |
5 |
5 |
|
Contacts to Ground |
pF |
5 |
5 |
||
Resistance, Contact Max @ 1A, 28Vdc |
Ω |
0.025 |
0.005 |
||
Operate Time, Max |
ms |
100 |
100 |
||
Release Time, Max |
ms |
15 |
15 |
||
Operating Temperature Ambient |
°C |
-55~+125 . |
-55~+125 . |
||
Shock, 1/2 Sine11ms (Peak) |
G’s |
50 |
50 |
||
Vibration, Sine (10-2000 Hz Peak) |
G’s |
10 |
10 |
||
Mechanical Life |
Cycles |
1 million |
1 million |
||
Weight |
g |
1060 |
1060 |
COIL RATINGS |
|
Nominal, Volts dc |
24 |
Pick-up, Volts dc,Max |
16 |
Drop-Out, Volts dc,Min |
1-10 . |
Coil Resistance (Ω±10%) |
60 |
Ratings listed are for 25°C, sea level conditions
