General information

SKKT series thyristor modules

Modules SKKT Semikron are monolithic design with dual topology of semiconductor thyristors (thyristor-thyristor type). Used in DC and AC circuits with loads to 570A and reverse pulse voltages up to 2200V.

SEMIPACK family has three different internal constructions:

Soldered construction (SEMIPACK 1) – the contact is established by solder layers;
Bonded construction (SEMIPACK 2, 3) – the connection between top electrode of the chips and DBCs is realized by bond wires;
Pressure contact construction (SEMIPACK 3, 5) – the contact is established by pressure, solder free assembly.

SKKT thyristor modules are used in various power equipment - power and control units, power regulators, AC regulators, converters, controllers of blast furnaces or chemical processes, welding equipment, and as rectifiers for AC converters.

Package

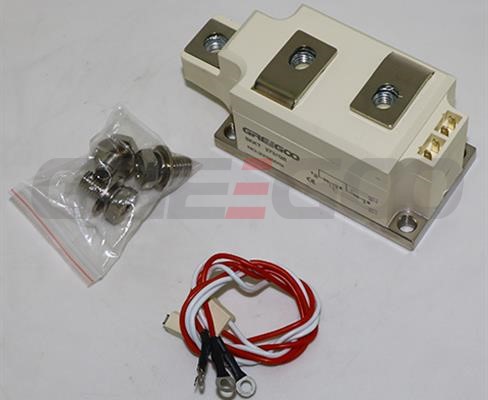

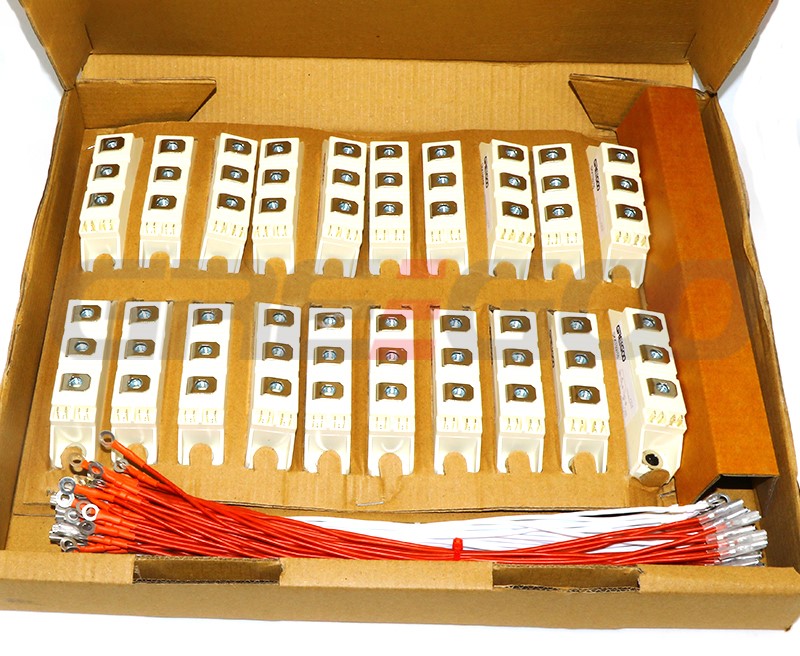

Semikron SKKT thyristor module package

Semipack 1 Specification

Series	Type	ITAv/lFAV (Tc=85℃)	VRRM/VDRM	ITSM IFSM	I²t	VT(TO)	rT	tq	Tvj max	Rthj-c) (per chip)
		A	V	A	kA².s	V	mΩ	μs	℃	℃/W
SKKT 20	SKKT 20/08E	20	800-1600	280	0.39	1.00	16	80	125	1.30
	SKKT 20/12E
	SKKT 20/14E
	SKKT 20/16E
SKKT 20B	SKKT 20B/08E	20	800-1600	280	0.39	1.00	16	80	125	1.30
	SKKT 20B/12E
	SKKT 20B/14E
	SKKT 20B/16E
SKKT 27	SKKT 27/08E	25	800-1600	480	1.15	0.90	12	80	125	0.95
	SKKT 27/12E
	SKKT 27/14E
	SKKT 27/16E
SKKT 27B	SKKT 27B/08E	25	800-1600	480	1.15	0.90	12	80	125	0.95
	SKKT 27B/12E
	SKKT 27B/14E
	SKKT 27B/16E
SKKT 42	SKKT 42/08E	40	800-1000	850	3.6	1.00	4.5	80	125	0.69
	SKKT 42/12E
	SKKT 42/14E
	SKKT 42/16E
	SKKT 42/18E
SKKT 42B	SKKT 42B/08E	40	800-1000	850	3.6	1.00	4.5	80	125	0.69
	SKKT 42B/12E
	SKKT 42B/14E
	SKKT 42B/16E
	SKKT 42B/18E
SKKT 57	SKKT 57/08E	50	800-1800	1250	8.0	0.90	3.5	80	125	0.60
	SKKT 57/12E
	SKKT 57/14E
	SKKT 57/16E
	SKKT 57/18E
SKKT 57B	SKKT 57B/08E	50	800-1800	1250	8.0	0.90	3.5	80	125	0.60
	SKKT 57B/12E
	SKKT 57B/14E
	SKKT 57B/16E
	SKKT 57B/18E
SKKT 57 H4	SKKT 57/20E H4	50	2000-2200	1250	8.0	0.90	3.5	80	125	0.60
	SKKT 57/22E H4
SKKT 58	SKKT 58/16E	55	1600	1200	7.2	1.00	4.8	170	130	0.49
SKKT 58B	SKKT 58B/16E
SKKT 72	SKKT 72/08E	70	800-1800	1450	10.5	0.90	3.5	80	125	0.37
	SKKT 72/12E
	SKKT 72/14E
	SKKT 72/16E
	SKKT 72/18E
SKKT 72B	SKKT 72B/08E	70	800-1800	1450	10.5	0.90	3.5	80	125	0.37
	SKKT 72B/12E
	SKKT 72B/14E
	SKKT 72B/16E
	SKKT 72B/18E
SKKT 72 H4	SKKT 72/20E H4	70	2000-2200	1450	10.5	0.90	3.5	80	125	0.37
	SKKT 72/22E H4

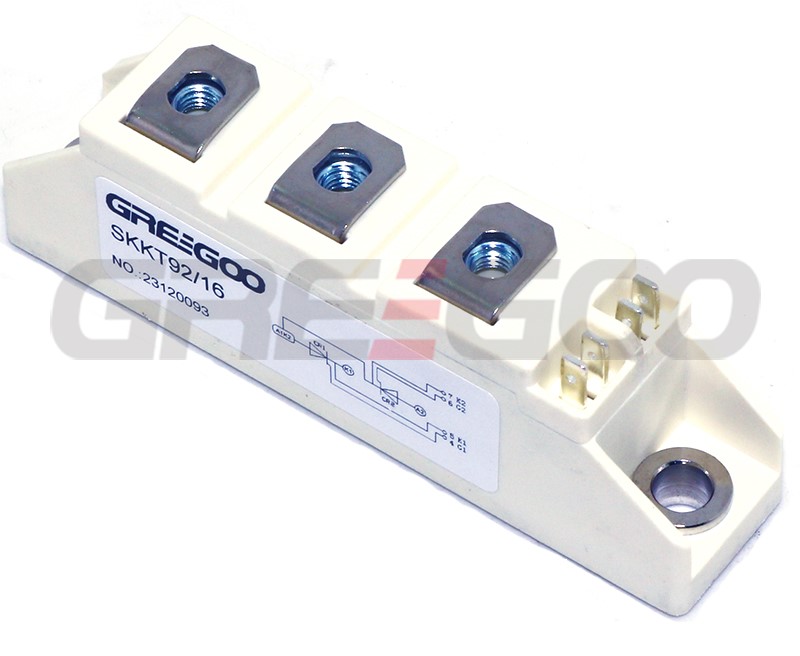

SKKT 92	SKKT 92/08E	95	800-1800	1750	15	0.90	2.0	100	125	0.30
	SKKT 92/12E
	SKKT 92/14E
	SKKT 92/16E
	SKKT 92/18E
SKKT 92B	SKKT 92B/08E	95	800-1800	1750	15	0.90	2.0	100	125	0.30
	SKKT 92B/12E
	SKKT 92B/14E
	SKKT 92B/16E
	SKKT 92B/18E
SKKT 106	SKKT 106/08E	106	800-1800	1900	18	0.90	2.0	100	130	0.30
	SKKT 106/12E
	SKKT 106/14E
	SKKT 106/16E
	SKKT 106/18E
SKKT 106B	SKKT 106B/08E	106	800-1800	1900	18	0.90	2.0	100	130	0.30
	SKKT 106B/12E
	SKKT 106B/14E
	SKKT 106B/16E
	SKKT 106B/18E
SKKT 107	SKKT 107/16E	119	1600	1900	18	0.90	3.35	200	130	0.20
SKKT 107B	SKKT 107B/16E

Semipack 1 dimensions

Semipack 2 specification

Series	Type	ITAv/lFAV (Tc=85℃)	VRRM/VDRM	ITSM IFSM	I²t	VT(TO)	rT	tq	Tvj max	Rthj-c) (per chip)
		A	V	A	kA².s	V	mΩ	μs	℃	℃/W
SEMIPACK2
SKKT 122	SKKT 122/08E	129	800-1800	3200	51.2	0.85	2.0	120	125	0.21
	SKKT 122/12E
	SKKT 122/14E
	SKKT 122/16E
	SKKT 122/18E
SKKT 132	SKKT 132/08E	137	800-1800	4000	80	1.00	1.6	150	125	0.19
	SKKT 132/12E
	SKKT 132/14E
	SKKT 132/16E
	SKKT 132/18E
SKKT 132 H4	SKKT 132/20E H4	128	2000-2200	3800	72	1.10	2.0	150	125	0.18
	SKKT 132/22E H4
SKKT 163	SKKT 162/08E	156	800-1800	5000	125	0.85	1.5	150	125	0.18
	SKKT 162/12E
	SKKT 162/14E
	SKKT 162/16E
	SKKT 162/18E
SKKT 162 H4	SKKT 162/20E H4	143	2000-2200	4800	115	0.95	2.0	150	125	0.17
	SKKT162/22E H4
	SKKT 162/20E H4	143	2000-2200	4800	115	0.95	2.0	150	125	0.17
	SKKT 162/22E H4
SKKT 172	SKKT 172/14E	175	1400-1800	5000	125	0.83	1.3	175	125	0.164
	SKKT 172/16E
	SKKT 172/18E
SKKT 215	SKKT 215/16E	215	1600-1800	5700	162.5	0.85	1.2	150	125	0.125
	SKKT 215/18E

Semipack 2 thyristor module

Semipack 3 specification

Series	Type	ITAv/lFAV (Tc=85℃)	VRRM/VDRM	ITSM IFSM	I²t	VT(TO)	rT	tq	Tvj max	Rthj-c) (per chip)
		A	V	A	kA².s	V	mΩ	μs	℃	℃/W
SEMIPACK 3
SKKT 250	SKKT 250/08E	250	800-1800	8000	405	0.93	0.45	150	130	0.15
	SKKT 250/12E
	SKKT 250/14E
	SKKT 250/16E
	SKKT 250/18E
SKKT 273	SKKT 273/12E	273	1200-1800	8000	320	0.90	0.92	150	130	0.108
	SKKT 273/16E
	SKKT 273/18E
SKKT 280 H4	SKKT 280/20E H4	252	2000-2200	7500	281	0.90	0.75	150	125	0.116
	SKKT 280/22E H4
SKKT323	SKKT 323/12E	320	1200-1800	8200	336	0.81	0.85	150	130	0.095
	SKKT 323/16E
	SKKT 323/18E
SKKT 330	SKKT 330/08E	305	800-1800	8000	320	0.80	0.60	150	130	0.116
	SKKT 330/12E
	SKKT 330/16E
	SKKT 330/18E

Semipack 3 semikron thyristor module

Semipack 5 specification

Series	Type	ITAv/lFAV (Tc=85℃)	VRRM/VDRM	ITSM IFSM	I²t	VT(TO)	rT	tq	Tvj max	Rthj-c) (per chip)
		A	V	A	kA².s	V	mΩ	μs	℃	℃/W
SEMIPACK 5
SKKT 460	SKKT 460/16E	460	1600-2200	15500	1200	0.88	0.45	200	130	0.074
	SKKT 460/22E H4
SKKT 570	SKKT 570/12E	570	1200-1800	15500	1200	0.78	0.32	200	135	0.072
	SKKT 570/16E
	SKKT 570/18E

Semipack 5 dimensions

All Specification

SKKT 15 to 570A thyristor modules

Type	V_RRM V_DRM	I_TAV I_FAV @ T_C	T_C	I_TSM I_FSM @ T_jmax	V_T(TO) @ T_jmax	r_T @ T_jmax	R_th(j-c) cont. per chip	R_th(c-s) per chip	T_j	Case
	V	A	℃	A	V	mΩ	K/W	K/W	℃
SKKT 15	600-1600	13.5	85	280	1.1	20	1.6	0.2	-40 ... 125	W15
SKKT 20	800-1600	18	85	280	1	16	1.2	0.2	-40 ... 125	W20
SKKT 20B	800-1600	18	85	280	1	16	1.2	0.2	-40 ... 125	W20
SKKT 27	800-1600	25	85	480	0.9	12	0.9	0.2	-40 ... 125	W20
SKKT 27B	800-1600	25	85	480	0.9	12	0.9	0.2	-40 ... 125	W20
SKKT 42	800-1800	40	85	850	1	4.5	0.65	0.2	-40 ... 125	W20
SKKT 42B	800-1800	40	85	850	1	4.5	0.65	0.2	-40 ... 125	W20
SKKT 57	800-1800	50	85	1250	0.9	3.5	0.57	0.2	-40 ... 125	W20
SKKT 57B	800-1800	50	85	1250	0.9	3.5	0.57	0.2	-40 ... 125	W20
SKKT 58/16 E	1600	55	85	1200	1	4.8	0.47	0.22	-40 ... 130	W20
SKKT 58B16 E	1600	55	85	1200	1	4.8	0.47	0.22	-40 ... 130	W20
SKKT 72	800-1800	70	85	1450	0.9	3.5	0.35	0.2	-40 ... 125	W20
SKKT 72B	800-1800	70	85	1450	0.9	3.5	0.35	0.2	-40 ... 125	W20
SKKT 92	800-1800	95	85	1750	0.9	2	0.28	0.2	-40 ... 125	W20
SKKT 92B	800-1800	95	85	1750	0.9	2	0.28	0.2	-40 ... 125	W20
SKKT 106	800-1800	106	85	1900	0.9	2	0.28	0.2	-40 ... 130	W20
SKKT 106B	800-1800	106	85	1900	0.9	2	0.28	0.2	-40 ... 130	W20
SKKT 107/16 E	1600	119	85	1900	0.9	3.35	0.19	0.22	-40 ... 130	W20
SKKT 107B16 E	1600	119	85	1900	0.9	3.35	0.19	0.22	-40 ... 130	W20
SKKT 122	800-1800	129	85	3200	0.85	2	0.2	0.13	-40 ... 125	W34
SKKT 132	800-1800	137	85	4000	1	1.6	0.18	0.1	-40 ... 125	W34
SKKT 162	800-1800	156	85	5000	0.85	1.5	0.17	0.1	-40 ... 125	W34
SKKT 172	1400-1800	175	85	5000	0.83	1.3	0.155	0.1	-40 ... 125	W34
SKKT 250	800-1800	250	85	8000	0.93	0.45	0.14	0.04	-40 ... 130	W50
SKKT 273	1200-1800	273	85	8000	0.9	0.92	0.104	0.08	-40 ... 130	W50
SKKT 323	1200-1800	320	85	8200	0.81	0.85	0.091	0.08	-40 ... 130	W50
SKKT 330	800-1800	305	85	8000	0.8	0.6	0.11	0.04	-40 ... 130	W50
SKKT 460/16 E	1600	460	85	15500	0.88	0.45	0.072	0.02	-40 ... 130	W60
SKKT 570	1200-1800	570	85	15500	0.78	0.32	0.069	0.02	-40 ... 135	W60
