Product details

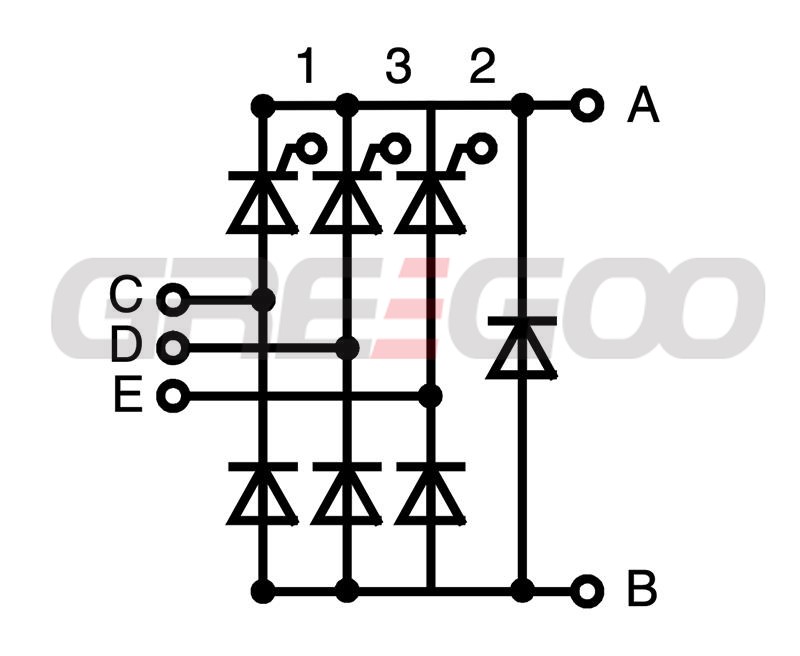

3 phase half controlled rectifier bridge with freewheeling diode
Features
- Package with copper base plate
- Isolation voltage 3000 V~
- Planar passivated chips
- Low forward voltage drop
- ¼" fast-on power terminals
Applications
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
Advantages
- Easy to mount with two screw
- Space and weight savings
- Improved temperature & power cycling capability
- Small and light weight

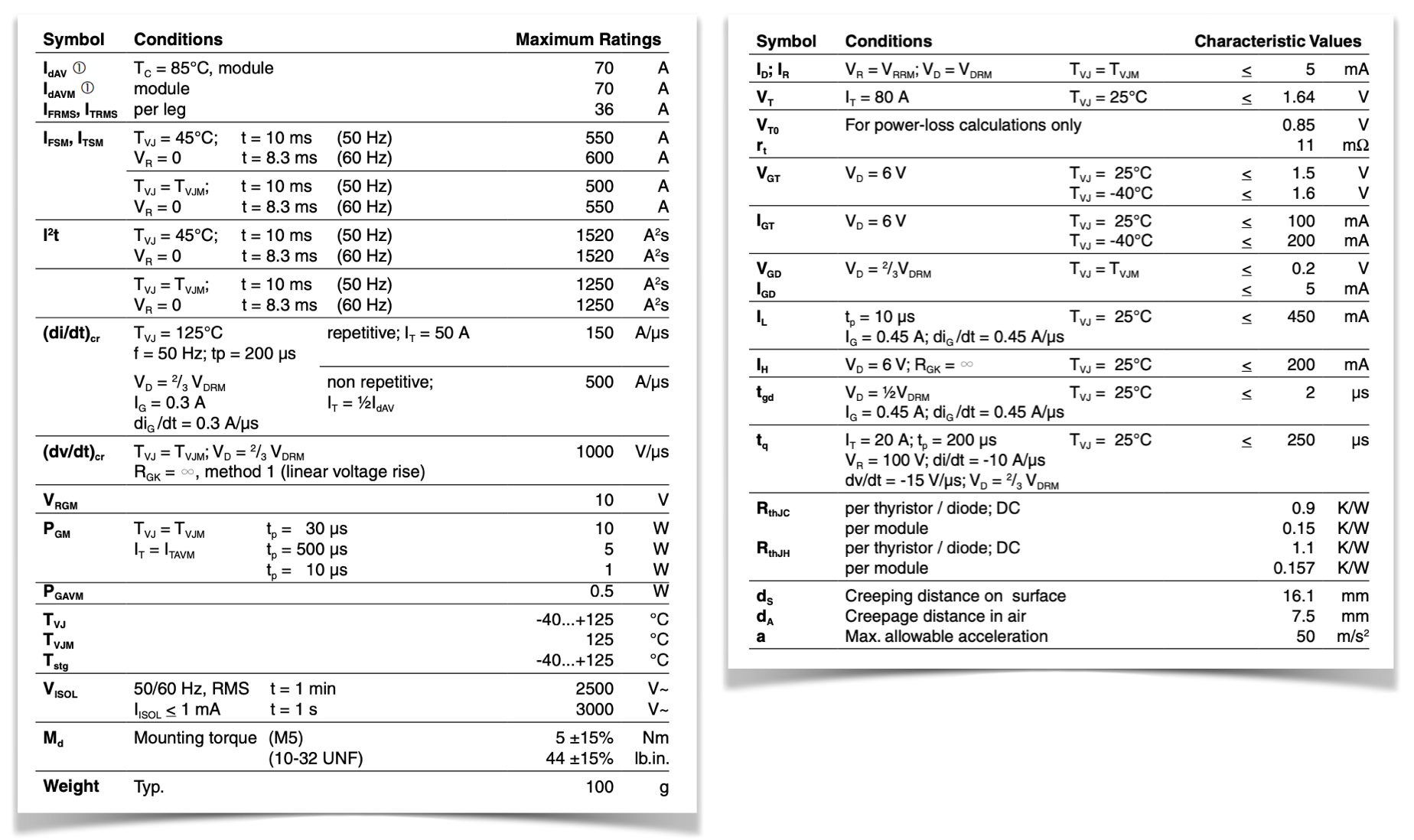

Technical Parameters

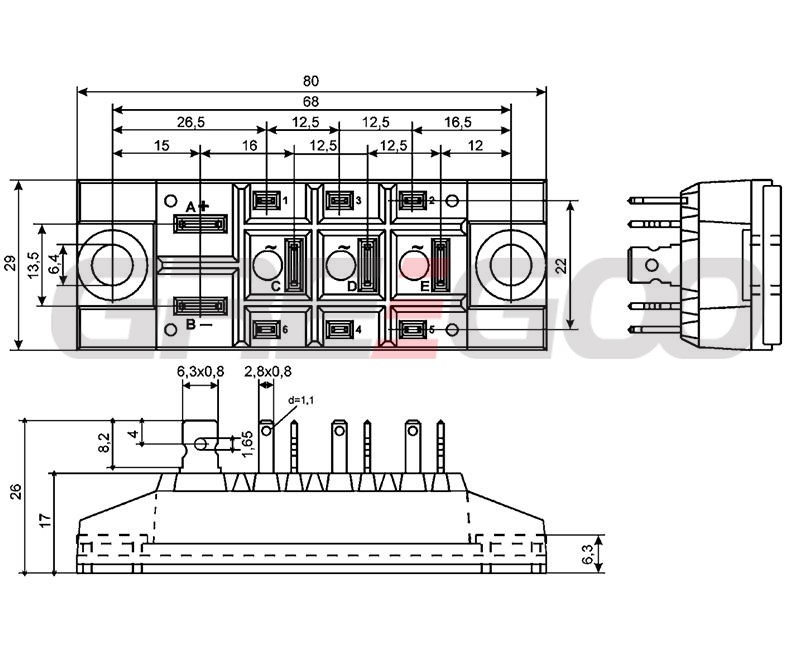

VVZF70-16io7 3ph half controllable with freewheeling diode bridge module
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
