30KV HV Relay GHR-22A/B

Home Products Vacuum Relay and Capacitor30KV to 80KV Vacuum Relay30KV HV Relay GHR-22A/B

30KV HV Relay GHR-22A/B
30KV HV Relay GHR-22A/B
30KV HV Relay GHR-22A/B
30KV HV Relay GHR-22A/B

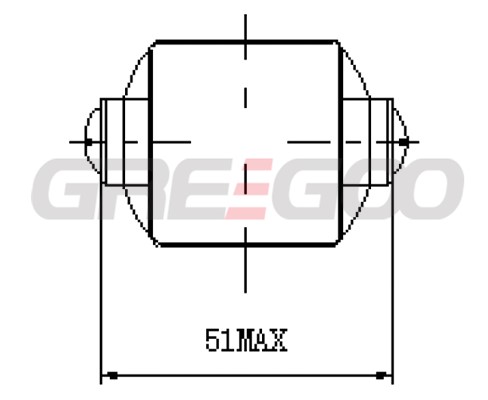

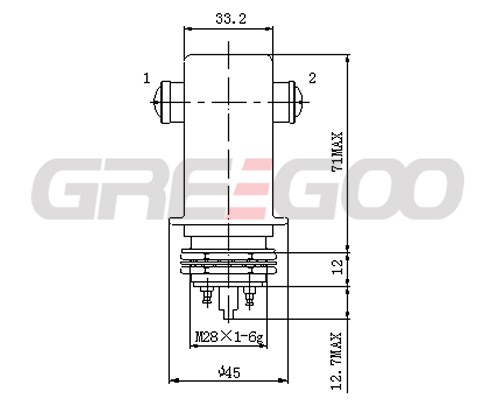

Specification

30KV HV Relay GHR-22A/B

Product Specification

Units

GHR-22A .

GHR-22B

Contact Form



A

B

Contact Arrangement



SPST-NO

SPST-NC

Test Voltage,(kV, Peak), Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz)

KV Peak

30

28

Rated Operating Voltage,

(kV,Peak),

Contacts & to Base

(15 μA Leakage Max.)

DC or 60Hz

KV Peak

28

25

2.5MHz

KV Peak

-

-

16MHz

KV Peak

-

-

32MHz

KV Peak

-

-

Continuous Current, Carry Max

DC or 60Hz

Amps

65

45

2.5MHz

Amps

-

-

16MHz

Amps

-

-

32MHz

Amps

-

-

Coil Hi -Pot (V RMS, 60 Hz)

V

500

500

Capacitance

Across Open Contacts

pF

2.5

2.5

Contacts to Ground

pF

2.5

2.5

Resistance, Contact Max @ 1A, 28Vdc

Ω

0.005

0.01

Operate Time, Max

ms

18

18

Release Time, Max

ms

10

20

Operating Temperature Ambient

°C

-55~ 125

-55~ 125

Shock, 1/2 Sine11ms (Peak)

G’s

30

30

Vibration, Sine (10-2000 Hz Peak)

G’s

10

10

Mechanical Life

Cycles

2 million

2 million

Weight

g

330

330

Coil Rating

COIL RATINGS

Nominal, Volts dc

24

Pick-up, Volts dc,Max

16

Drop-Out, Volts dc,Min

1-10 .

Coil Resistance (Ω±10%)

120

※ Ratings listed are for 25°C

Product Details



◆Durable tungsten contacts for hot load switching

◆Vacuum dielectric for low and stable contact resistance
