Product Details
4-10 channel output solid state relays
| Model | DC output (triacs) | ||||||
| Channel | NO | NC | Current | Voltage | Output type | Frequency | |
| GCM-5A10N | 5 | 5 | - | 5A | 30V | NPN | 1KHZ |

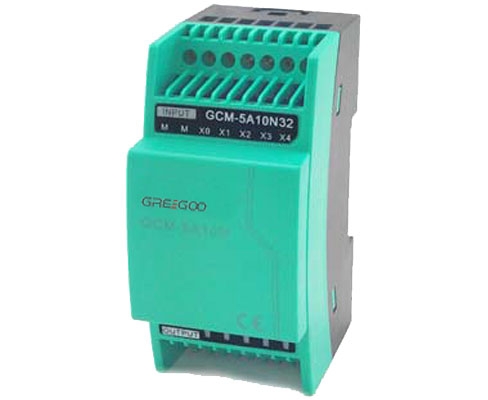

| GCM-5A10N32 | 5 | 3 | 2 | 5A | 30V | NPN | 1KHZ |
| GCM-8A10N | 8 | 8 | - | 5A | 30V | NPN | 1KHZ |
| GCM-8A10N44 | 8 | 4 | 4 | 5A | 30V | NPN | 1KHZ |
| AC output (SCR) | |||
| Model | Channel | Current | Voltage |
| GCM-8A10P6N2 | 6 | 5A | 220V |
| GCM-4A10P | 4 | 5A | 220V |
| Model | Channel | DC or AC output (relay type) | ||||
| Total | Indepenent | Output Status | Current | Voltage | On/Off frequency | |
| GCM-8S2A5R | 8 | 2 | NO | 1A | 0-30VDC OR 0-220VAC | <20 times / min |
| GCM-10A5R | 10 | - | NO | 1A | 0-30VDC OR 0-220VAC | <20 times / min |
| GCM-10S2A5R | 10 | 2 | NO | 1A | 0-30VDC OR 0-220VAC | <20 times / min |
