4-20mA or 0-5V or 10K potentiometer control SSR relayPDF

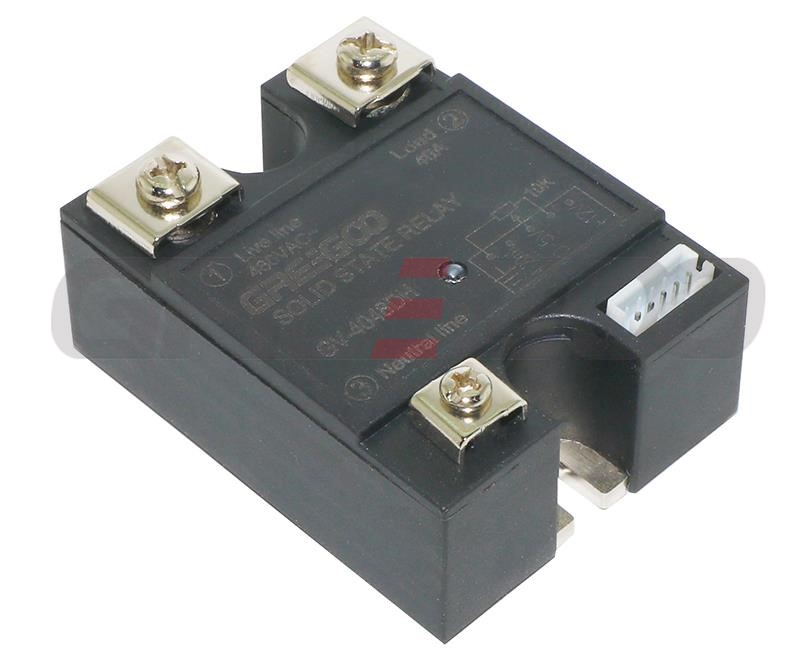

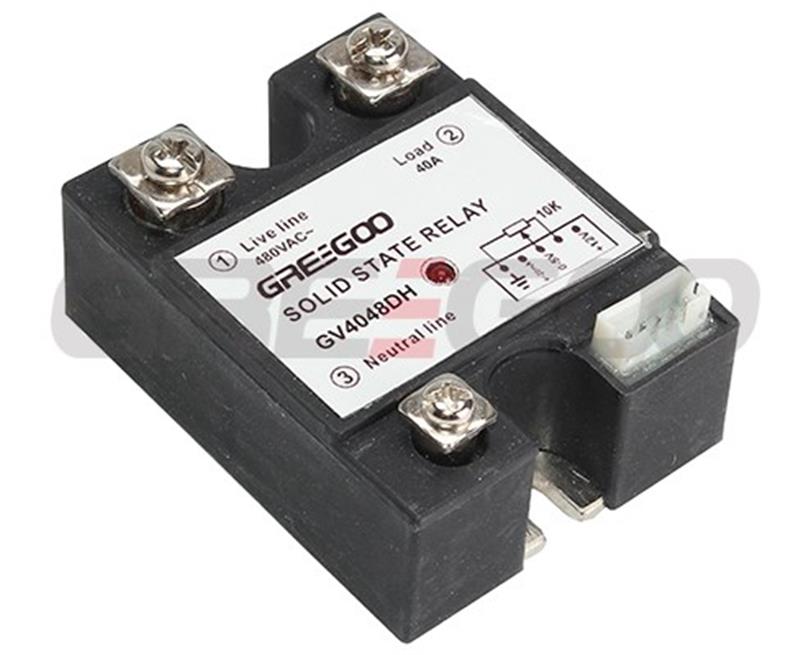

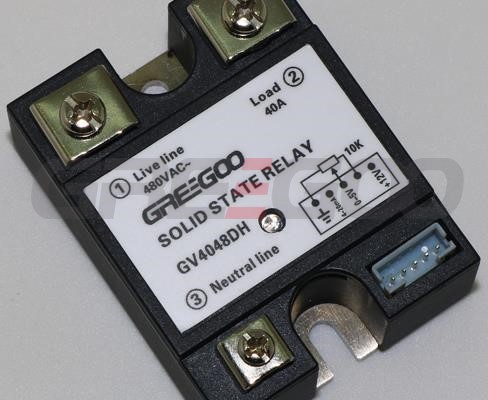

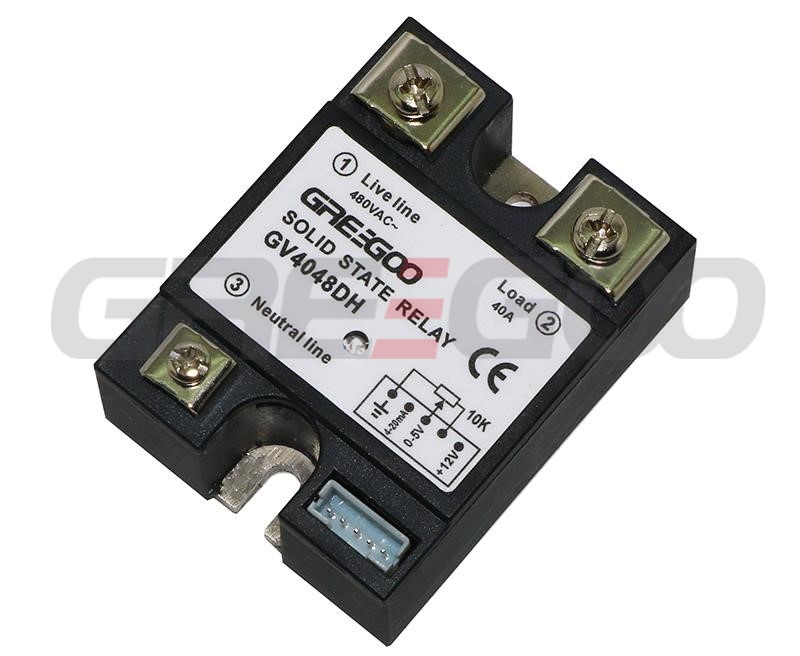

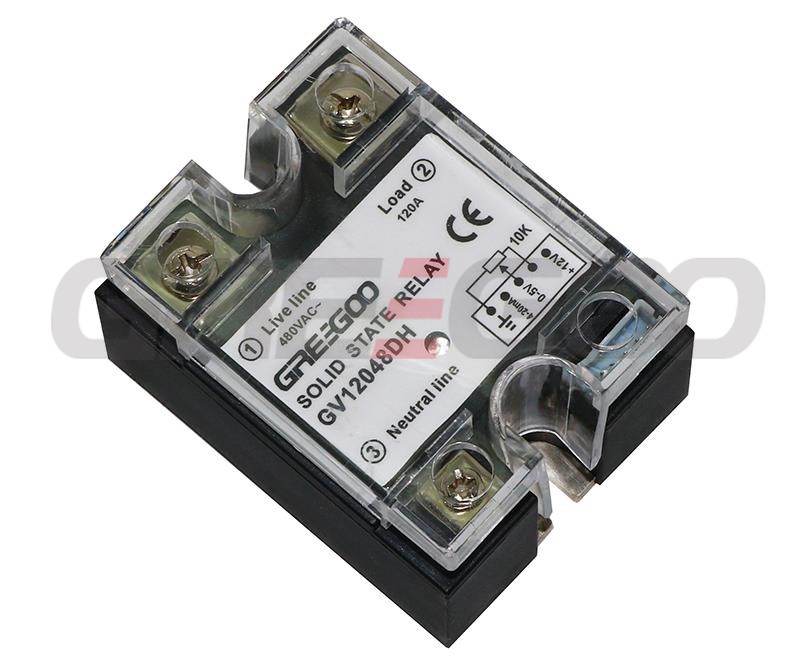

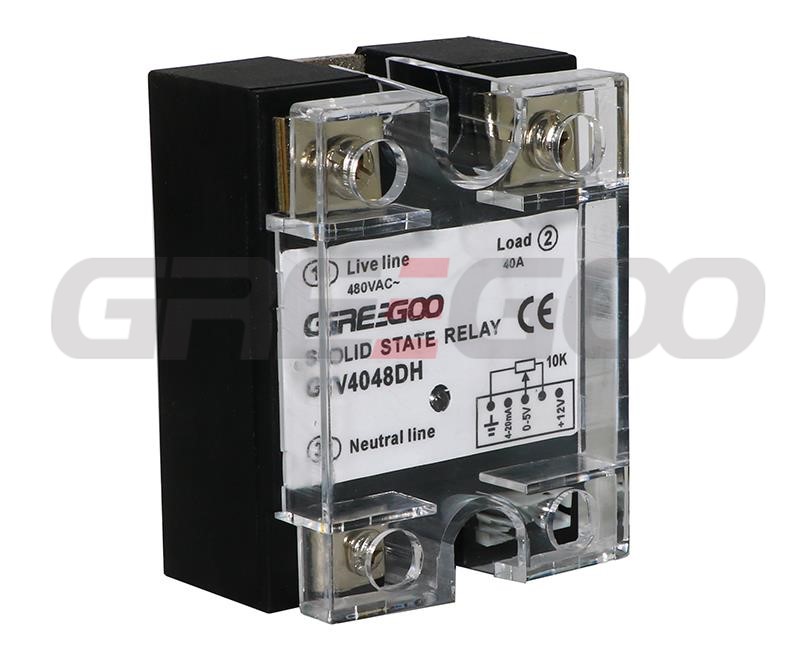

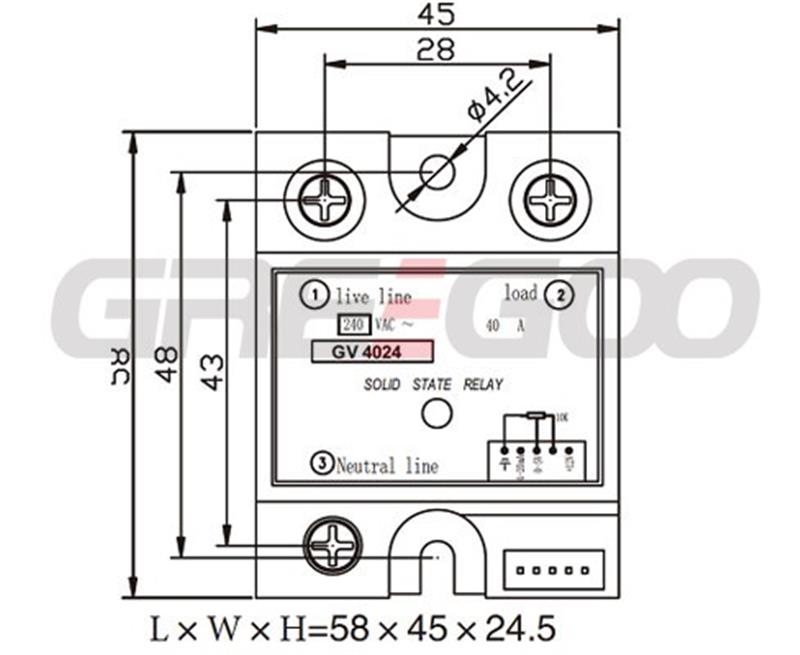

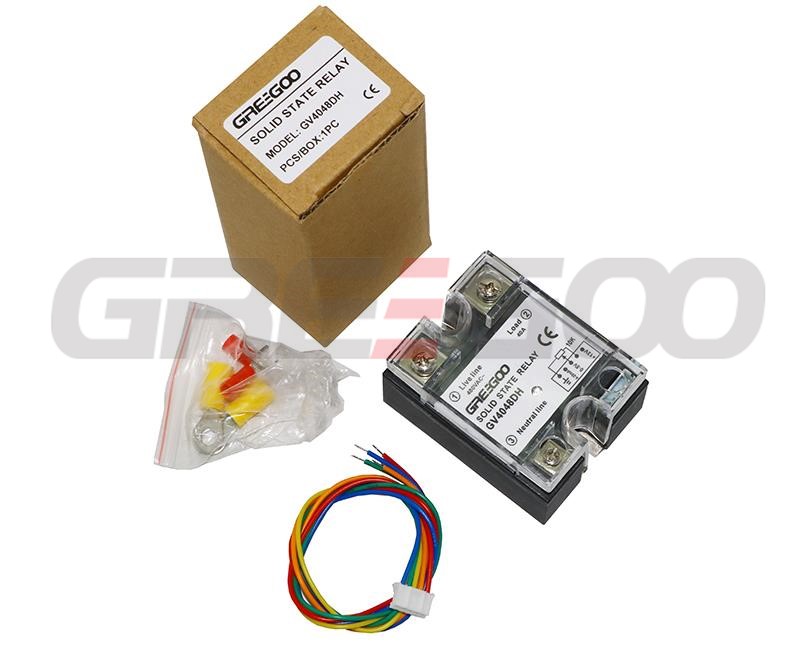

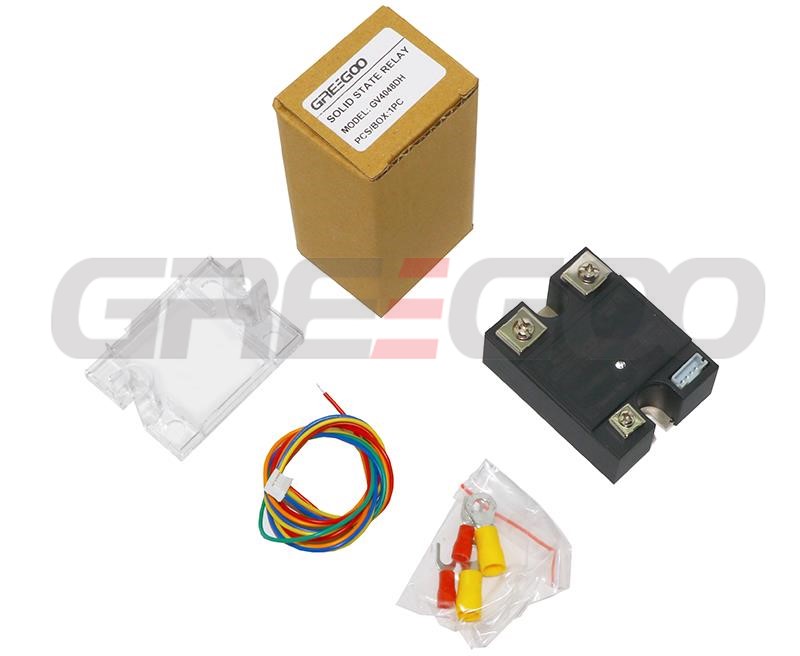

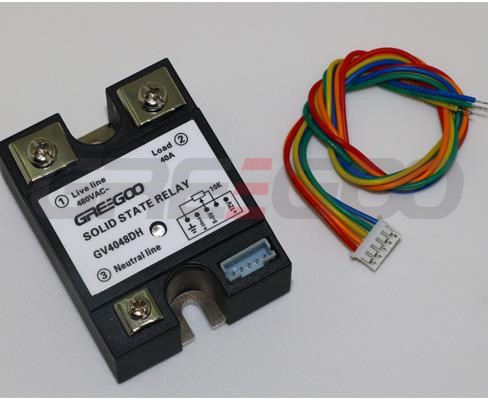

SSR RELAY WITH PROPORTIONAL CONTROL

The GV series voltage adjustable integrated solid state module is newly developed according to customers’ requests. It is characterized by input-output photoelectric isolation, integrated phase shift voltage adjustable circuit with main circuit, smart size, light weight, long service lifetime, big control power, stepless adjustment and high insulation voltage etc. It can control power of loads on output side automatically by changing the input voltage or by potentiometer manually. Meanwhile, due to its high input resistance and internal synchronization, through digital analogue converter, it can connect to computer, digital remote control, 0∼5V or 4∼20mA meters directly and make stepless adjustment for voltage, power of loads on output side conveniently. The TRIAC output are mainly applicable for resistive loads; The SCR output are mainly applicable for inductive loads. This product is widely used for lighting adjustment in illumination devices, temperature control in civil and industrial heating and soft start control etc

Features

- Standard structure and convenient mounting
- Photoelectric isolation between input and output; the isolation voltage up to 2500V
- Insulation voltage: 2500V
- Adopting “vacuum + hydric protection” soldering SCR wafer technology for copper bottom plate
- the anti-parallel SCR for those models with suffix “H”, good heat performance and long service lifetime
- Input control voltage: DC5V

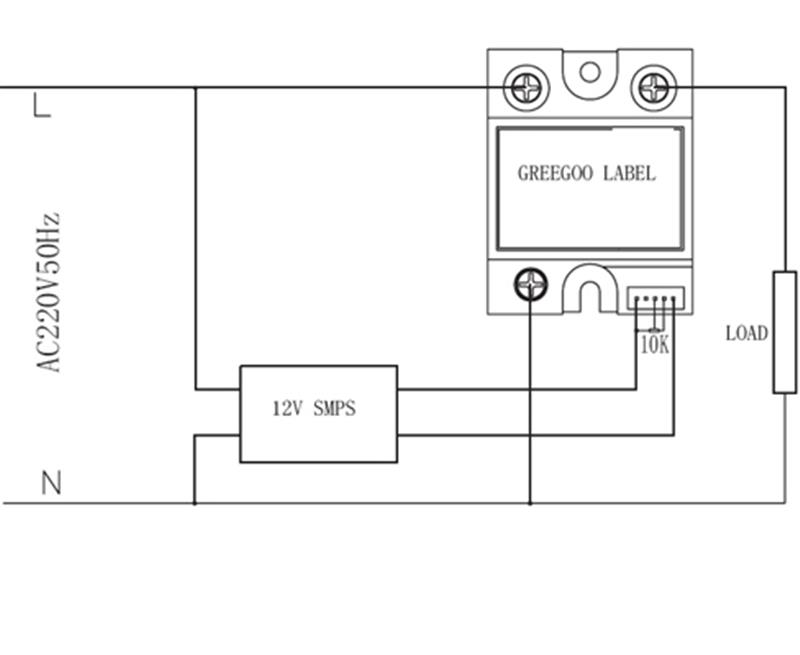

- Control signal: automatic: 0~5Vdc or 4~20mA, manual: 10K potentiometer
- Rated working voltage: 240V-440V
- Max output current: 10~120A
