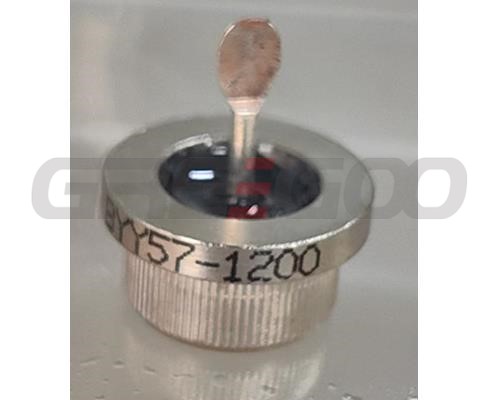

50A Silicon Power Rectifier Diode

The BYY57A/58A are hermetically sealed 50A diodes, which are available in different reverse voltage classes up to 800V.

The diodes can be delivered with limited forward voltage and reverse current differences for parallel connecting in rectifier stacks and back-off-diodes

Feature

• Forward current 50A

• Reverse voltage 75V – 800V

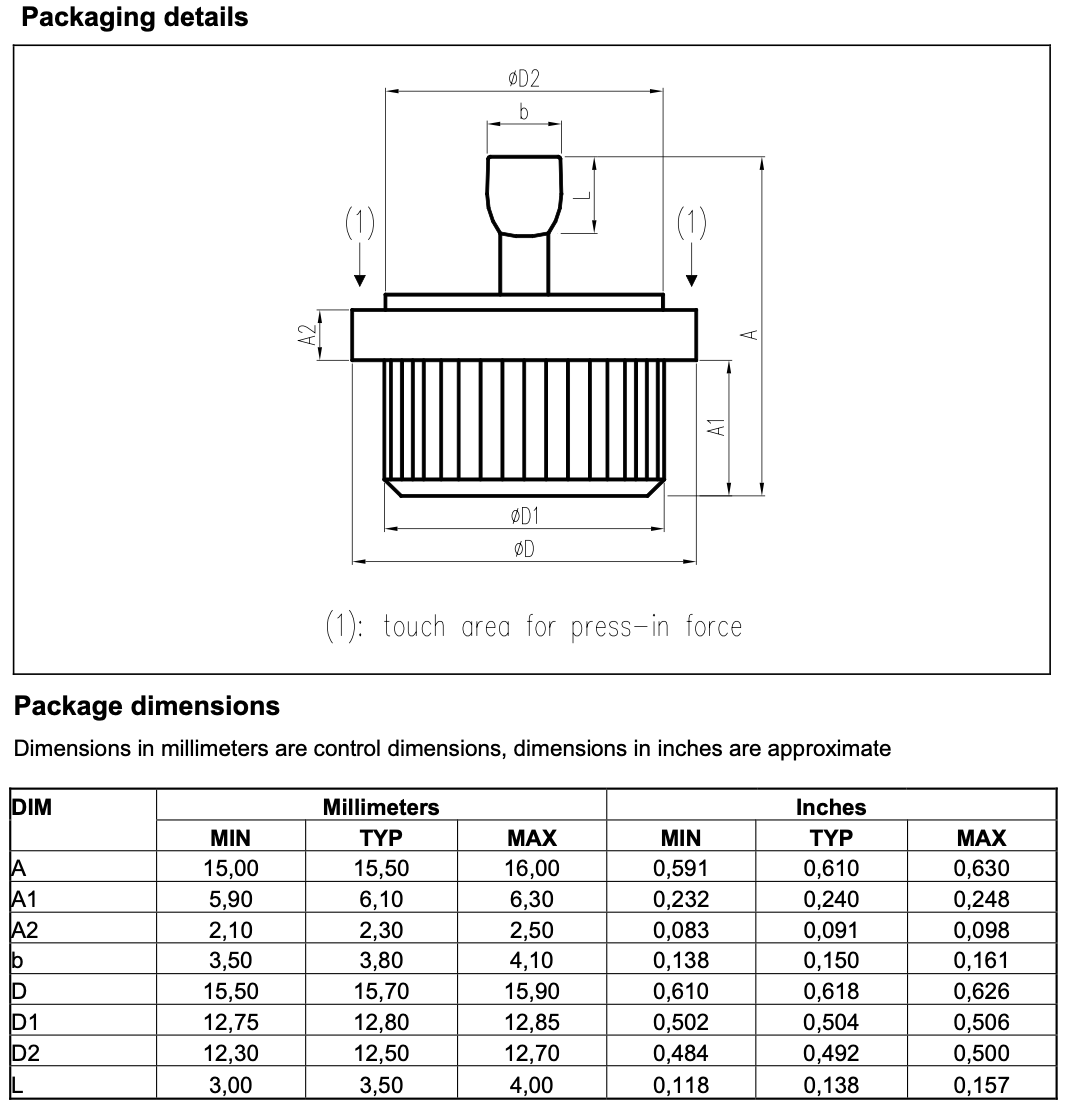

• Hermetic press-fit package

• Available in different modifications of the package

Applications

• Power supplies

• Rectifier diode in car generators

• Rectifier bridges/stacks

• Back-off-diodes
