Fast Recovery Epitaxial Diode DSEI2X61-12B

Features

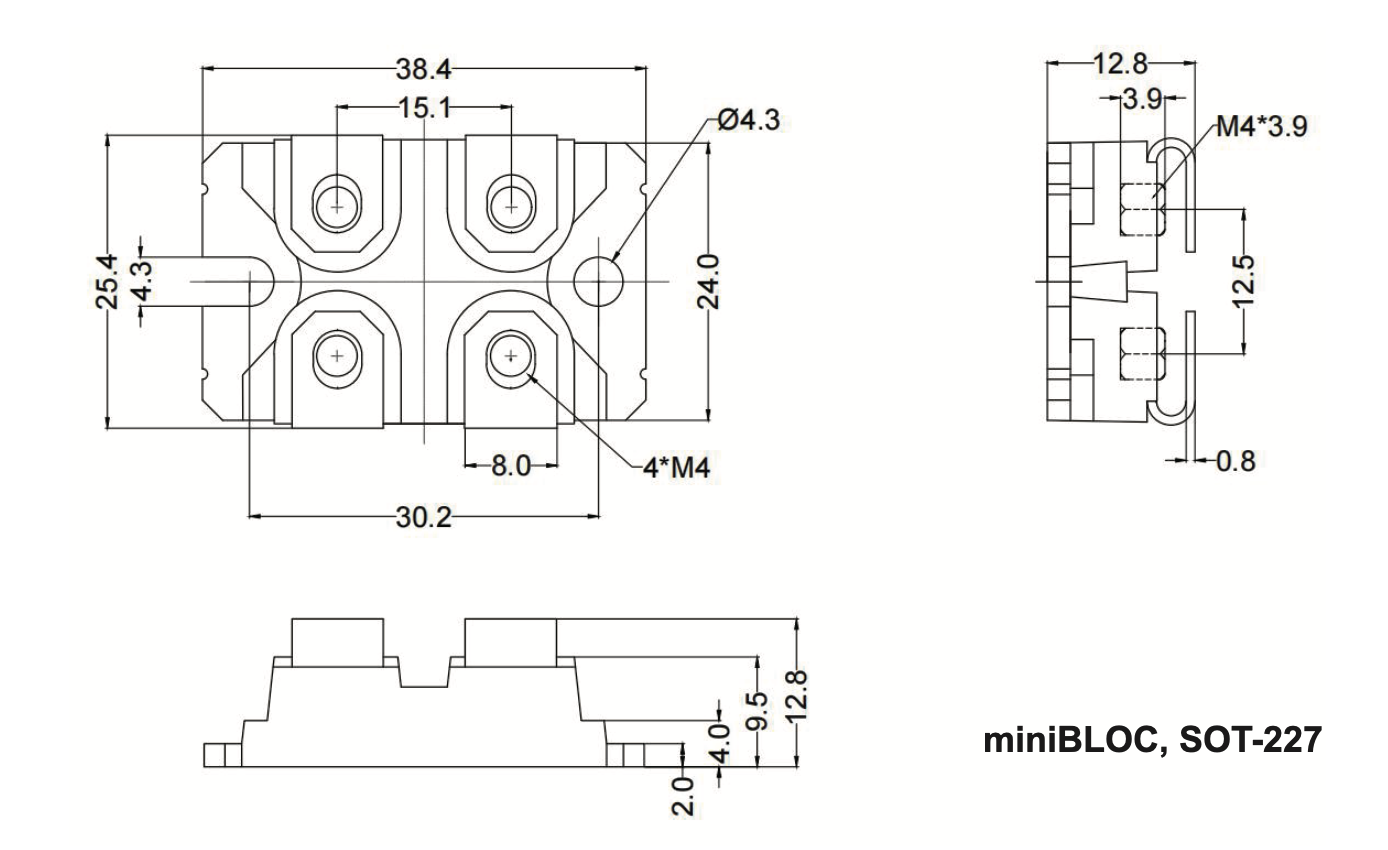

International standard package
Isolation voltage 2500 VAC
2 independent FRED in 1 package
Planar passivated chips
Very short recovery time
Extremely low switching losses
Low IRM-values
Soft recovery behaviour

Typical Applications

Antiparallel diode for high frequency switching devices
Free wheeling diode in converters and motor control circuits
Inductive heating and melting
Ultrasonic cleaners and welders
Uninterruptible power supplies (UPS)
Anti saturation diode
Snubber diode
AC/DC Motor drives
Rectifiers in switch mode power supplies (SMPS)

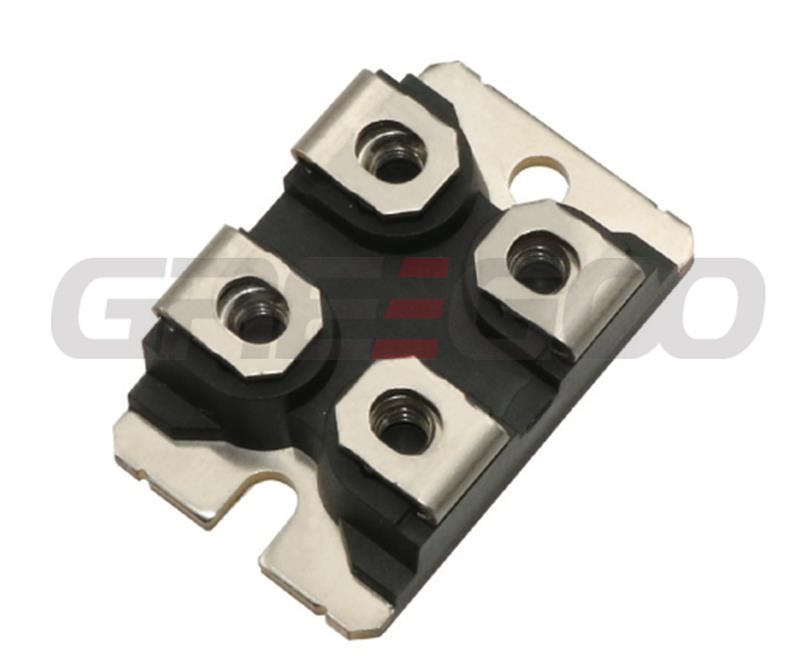

DSEI2x61-12B DSEI2x61-10B FRED Module
