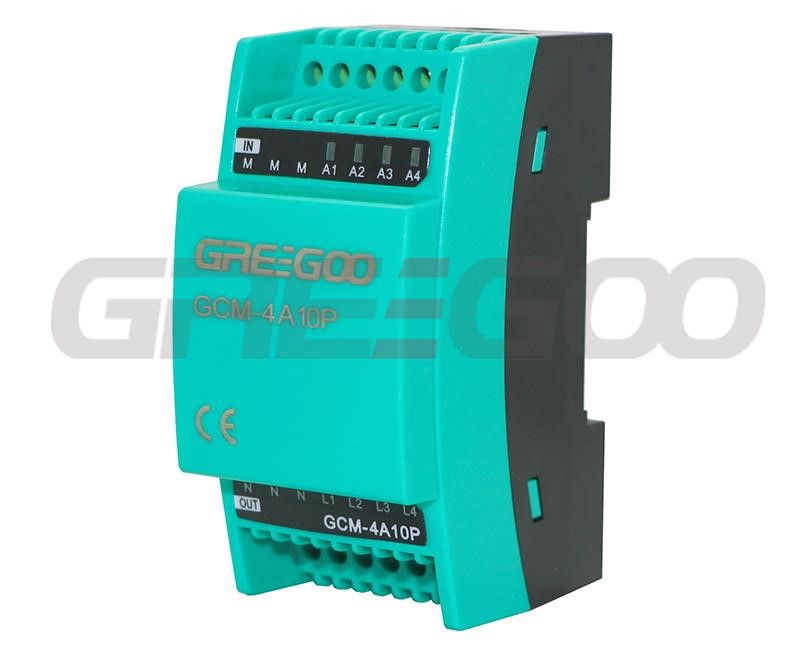

GCM-4A10P 4 Channel Output Solid State Relay

GCM-4A10P is applied by PLC or controller to switch the High-current Device. And with excellent isolate protection, the module can prevent PLC and controller is damaged by electronic interference.

Features

High isolation voltage ( 3750Vrms )
Both NPN and PNP input type can be applied
Every channel can operate 5A load

Specification

Input
Nominal voltage	12-24VDC
Nominal operating current	6mA
Min.Nominal voltage	11VDC

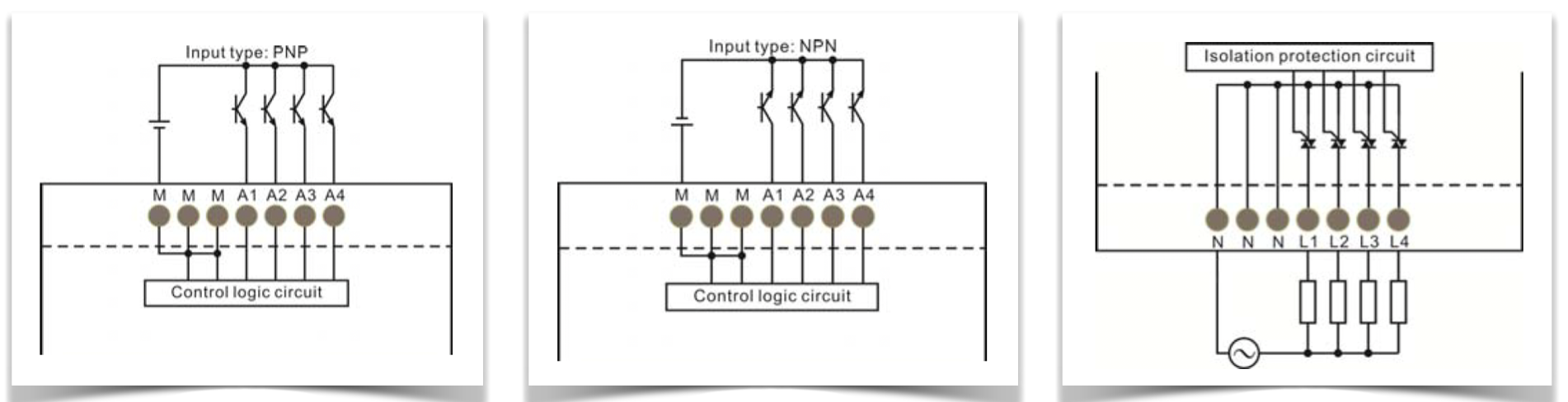

Input type	NPN or PNP

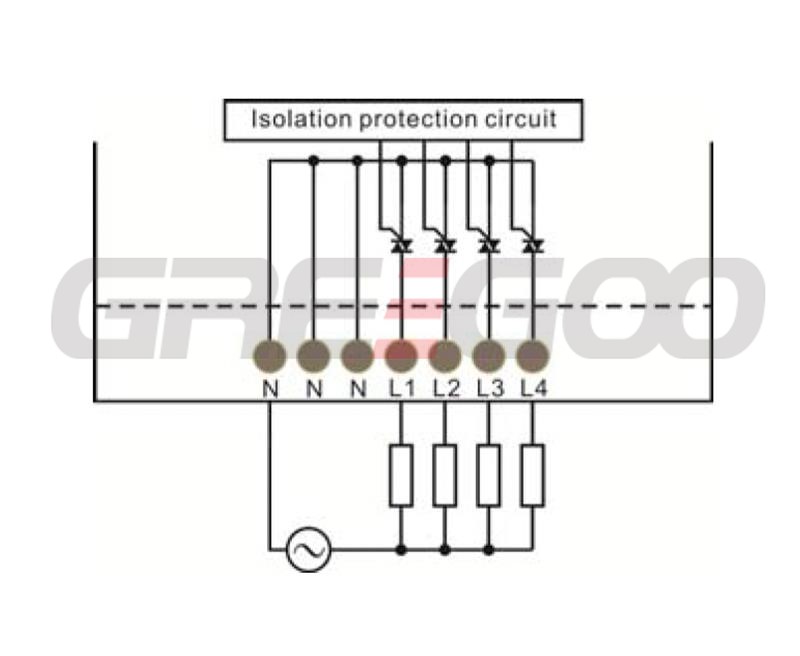

Output
Nominal switching capacity (resistive load)	5A 220VAC @ 25℃
Max.switching voltage	440VAC
Max.Continuous current	5A
Pulsed Current	40A
Electrical characteristics
Isolation voltage	3750Vrms @AC,1min.,R.H.≤60%;10000Vrms @AC,1sec,in oil
Control type	Zero cross switching
Response time	ON<10ms; OFF<10ms
Status Indicating Display	Green LED
Conditions
Ambient Operating Temperature Range	-20℃ to 80℃
Ambient Storage Temperature Range	-40℃ to 100℃
