Product details
Intelligent Solid State Relay - Diagnostic SSR - Communication SSR
Features:
Temperature detection
Phase loss detection
MODBUS communication
Panel function LEDs for operational status monitoring
Overcurrent detection
Current display
Load open circuit detection
LED digital display and push-button parameter adjustment

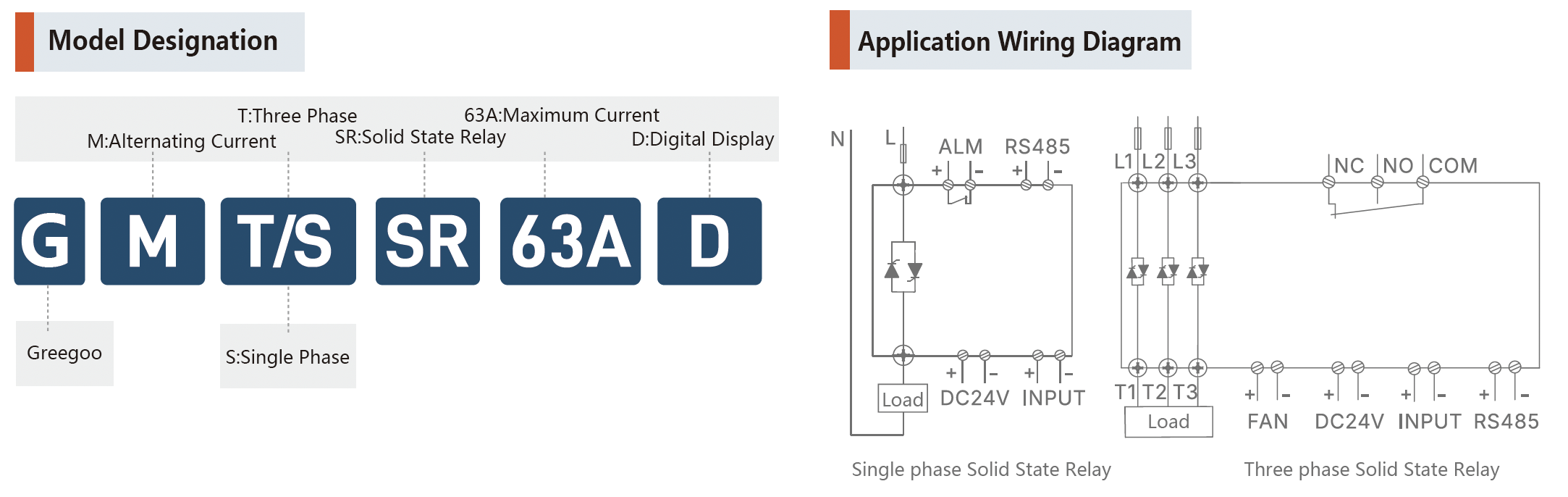

Diagram
Specification
| Part Numbers | GMSSR63A | GMSSR63AD | GMTSR63A | GMTSR63AD |
| Control voltage range | 4-32VDC | 4-32VDC | 4-32VDC | 4-32VDC |
| Maximum current | 63A | 63A | 63A | 63A |
| Operating voltage | / | 24VDC | / | 24VDC |
| Input voltage range | 50-460VAC | 50-460VAC | 50-460VAC | 50-460VAC |
| Alarm output port voltage range | ≤36V(DC or AC) | ≤DC 36V | ≤36V(DC or AC) | ≤250V(DC or AC) |
| Alarm output port current(Max) | 0.2A | 0.2A | 0.2A | 0.5A |

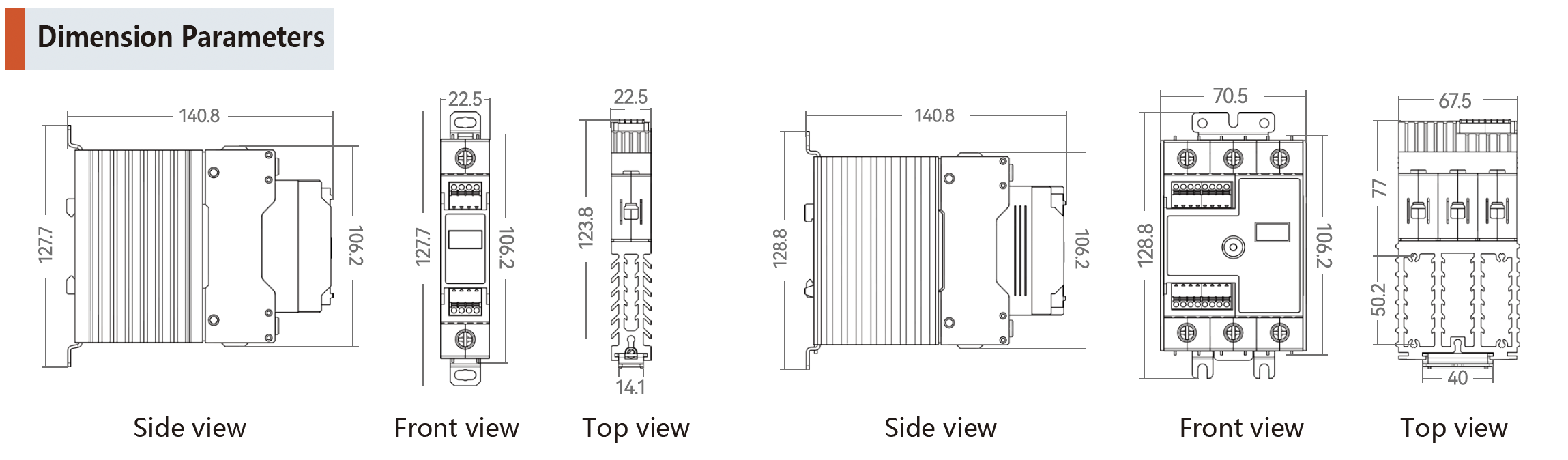

Dimension
