Product Details

LZZBJ9-10C2-10 MV Current Transformer

Model	Rated primary current	Rated secondary current	Accuracy class	Burden	Short time thermal current	Dynamically stable current	Rated insulation level
Model	A	A		VA	kA/s	kA/s	KV
LZZBJ9-10C2	5	5A 1A	0.2/10P10 0.5/10P10 0.2/10P15 0.5/10P15	10/15 10/15 10/15 15/15	0.45	1.125	12/42/75
	10				0.9	2.25
	15				1.35	3.375
	20				1.8	4.5
	30				2.7	6.75
	40				3.6	9
	50				4.5	11.25
	60				5.4	13.5
	75				6.75	16.875
	100				9	22.5
	150				13.5	33.75
	200				18	45
	300				24.5	61.25
	400		0.2/10P10 0.5/10P10 0.2/10P15 0.5/10P15	10/20 10/20 10/15 15/20	24.5	61.25
	500				32	80
	600				32	80
	800		0.2/10P10 0.5/10P10 0.2/10P15 0.5/10P15	15/20 20/20 15/20 20/20	50	80
	1000				50	125
	1200				50	125
	1250				50	125
	1500		0.2/10P10 0.5/10P10 0.2/10P15 0.5/10P15	20/20 30/20 20/20 30/20	63	157.5
	2000				63	157.5
	2500				63	157.5
	3000				63	157.5
	3150				63	157.5

Overview

LZZBJ9-10C2 type current transformer is suitable for power systems with rated frequency of 50Hz or 60Hz and rated voltage of 10kV for energy measurement, current measurement and protection.

Installation location: indoors.
Ambient temperature: maximum temperature 40℃; minimum temperature -5℃; daily average temperature does not exceed 30℃.
Atmospheric conditions: There is no serious pollution in the atmosphere.

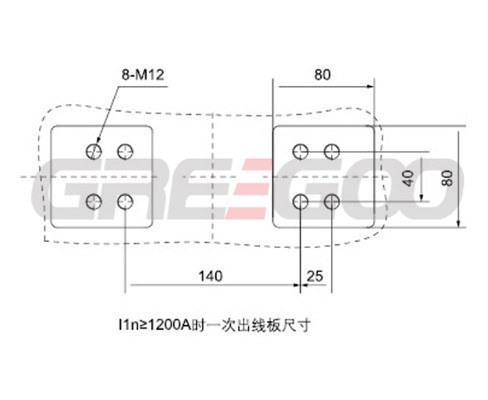

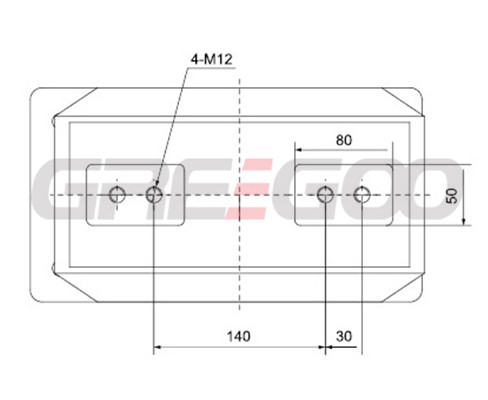

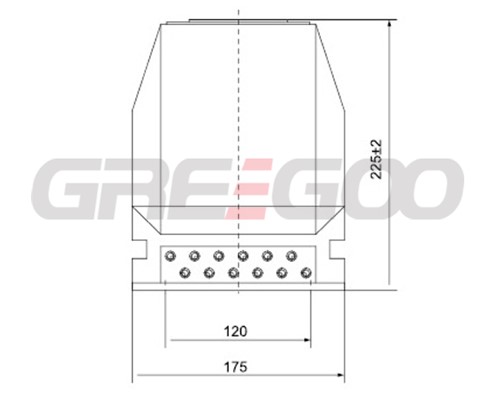

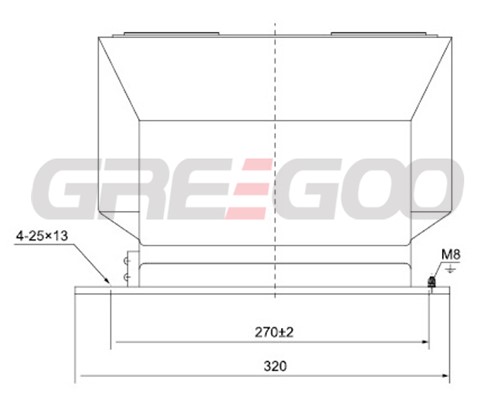

This series of current transformers is a fully enclosed structure cast by epoxy resin and has excellent insulation properties and moisture-proof capabilities. The product is compact, small in size, light in weight and easy to clean on the surface. The secondary outlet terminal is equipped with a terminal box, which is safe and reliable. There are grounding bolts and six mounting holes for installation on the bottom plate of the product.
