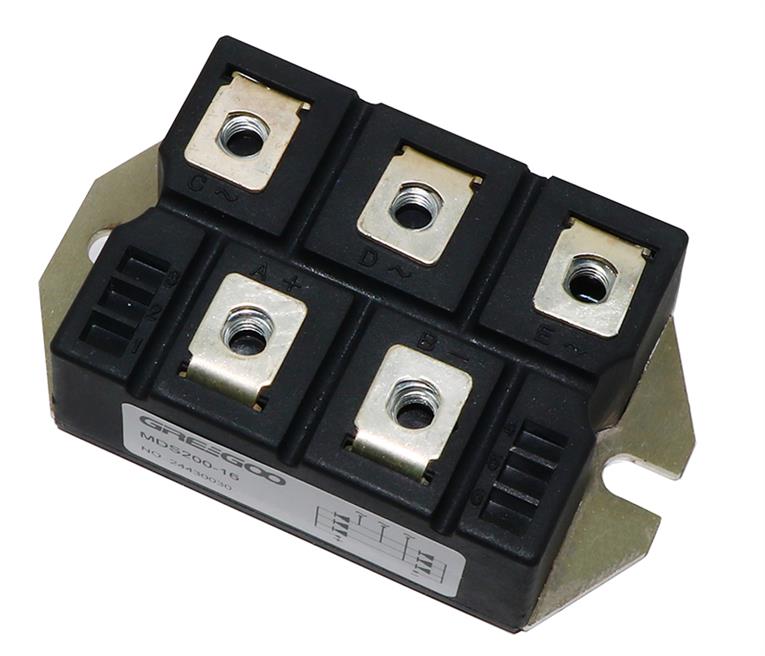

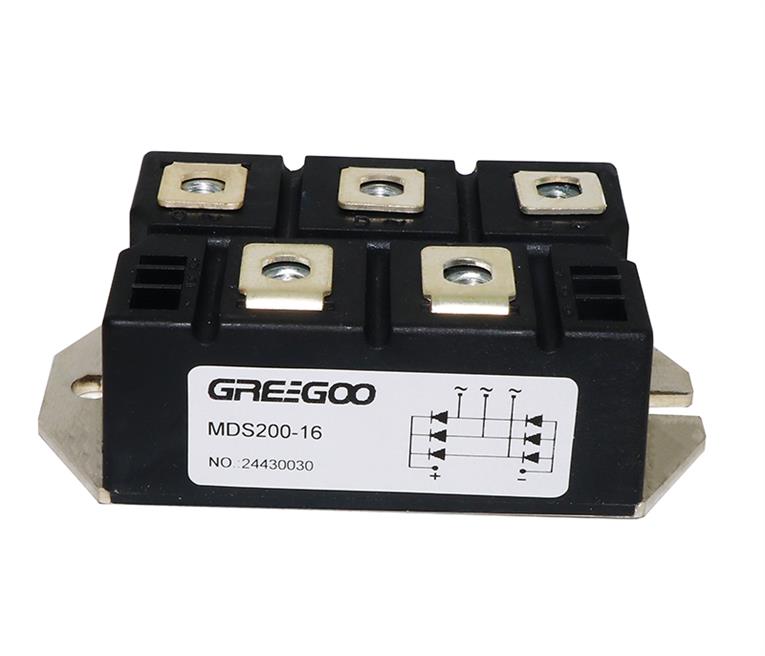

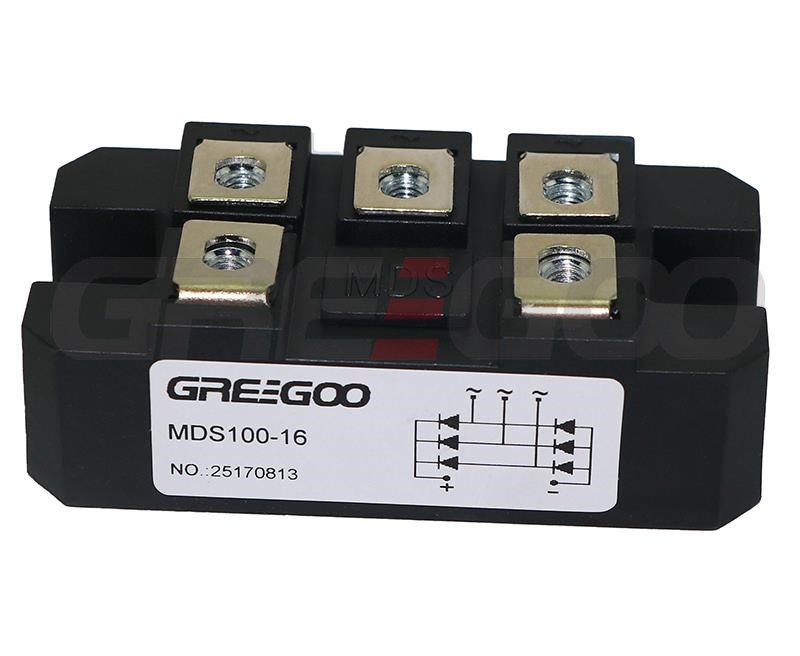

MDS Three-Phase Diode Bridge Rectifier are housed in a standard industrial casing, making it easy to integrate the device into existing equipment. The polarity of the terminals is clearly marked on the casing or directly on the contacts: the input is marked with a squiggle sign "~" indicating where AC current is applied; the DC output is marked with " " and "–" signs, from which we obtain pulsating direct current.
A high-capacity capacitor is often used as a filter to smooth out the resulting pulsating DC current. Three-phase diode bridges MDS are widely used in various power equipment, such as: rectifiers for power supplies; input rectifiers for variable frequency drives; rectifiers for DC motor field supplies; battery charger rectifiers; single-phase rectifiers for power supplies; non-controlled DC motor field supplies; and DC power supplies for transistorized AC motor controllers.
Type | lp | VRRM/VDRM |
A | V | |
MDS50-6 | 50 | 600 |
MDS50-8 | 50 | 800 |
MDS50-10 | 50 | 1000 |
MDS50-12 | 50 | 1200 |
MDS50-14 | 50 | 1400 |
MDS50-16 | 50 | 1600 |
MDS50-18 | 50 | 1800 |
MDS50-20 | 50 | 2000 |
MDS75-6 | 75 | 600 |
MDS75-8 | 75 | 800 |
MDS75-10 | 75 | 1000 |
MDS75-12 | 75 | 1200 |
MDS75-14 | 75 | 1400 |
MDS75-16 | 75 | 1600 |
MDS75-18 | 75 | 1800 |
MDS75-20 | 75 | 2000 |
MDS100-6 | 100 | 600 |
MDS100-8 | 100 | 800 |
MDS100-10 | 100 | 1000 |
MDS100-12 | 100 | 1200 |
MDS100-14 | 100 | 1400 |
MDS100-16 | 100 | 1600 |
MDS100-18 | 100 | 1800 |
MDS100-20 | 100 | 2000 |
MDS150-6 | 150 | 600 |
MDS150-8 | 150 | 800 |
MDS150-10 | 150 | 1000 |
MDS150-12 | 150 | 1200 |
MDS150-14 | 150 | 1400 |
MDS150-16 | 150 | 1600 |
MDS150-18 | 150 | 1800 |
MDS150-20 | 150 | 2000 |
MDS200-6 | 200 | 600 |
MDS200-8 | 200 | 800 |
MDS200-10 | 200 | 1000 |
MDS200-12 | 200 | 1200 |
MDS200-14 | 200 | 1400 |
MDS200-16 | 200 | 1600 |
MDS200-18 | 200 | 1800 |
MDS200-20 | 200 | 2000 |
MDS300-6 | 300 | 600 |
MDS300-8 | 300 | 800 |
MDS300-10 | 300 | 1000 |
MDS300-12 | 300 | 1200 |
MDS300-14 | 300 | 1400 |
MDS300-16 | 300 | 1600 |
MDS300-18 | 300 | 1800 |
MDS300-20 | 300 | 2000 |
MDS400-6 | 400 | 600 |
MDS400-8 | 400 | 800 |
MDS400-10 | 400 | 1000 |
MDS400-12 | 400 | 1200 |
MDS400-14 | 400 | 1400 |
MDS400-16 | 400 | 1600 |
MDS400-18 | 400 | 1800 |
MDS400-20 | 400 | 2000 |
MDS500-6 | 500 | 600 |
MDS500-8 | 500 | 800 |
MDS500-10 | 500 | 1000 |
MDS500-12 | 500 | 1200 |
MDS500-14 | 500 | 1400 |
MDS500-16 | 500 | 1600 |
MDS500-18 | 500 | 1800 |
MDS500-20 | 500 | 2000 |
