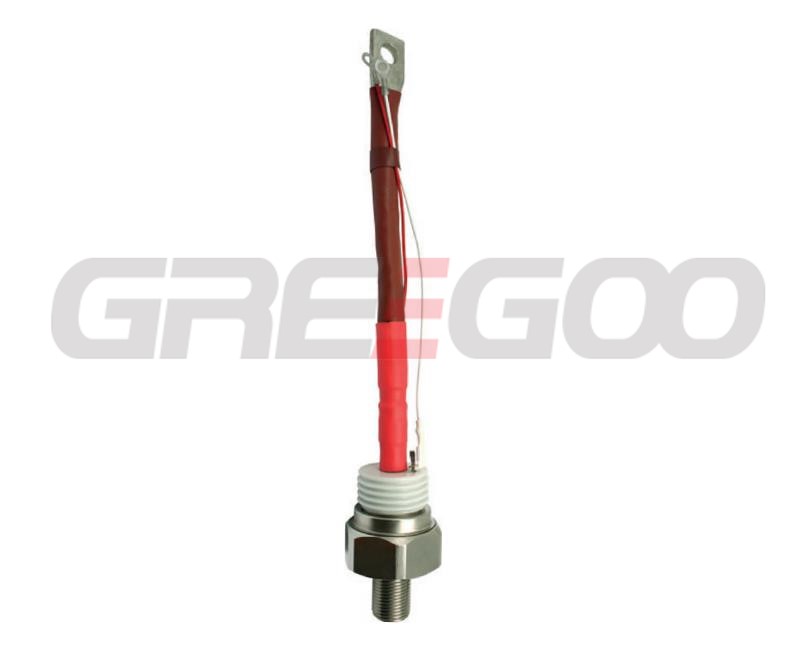

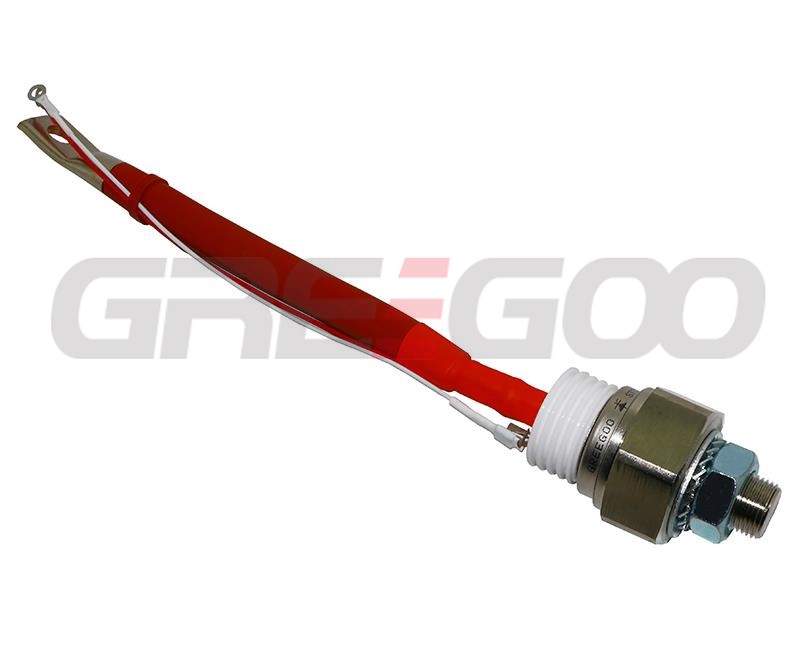

ST330SPbF Stud Thyristor

FEATURES
• Center amplifying gate
• International standard case TO-118 (TO-209AE)
• Hermetic metal case with ceramic insulator
• Compression bonded encapsulation for heavy duty operations such as severe thermal cycling
• Designed and qualified for industrial level

TYPICAL APPLICATIONS
• DC motor controls
• Controlled DC power supplies
• AC controllers

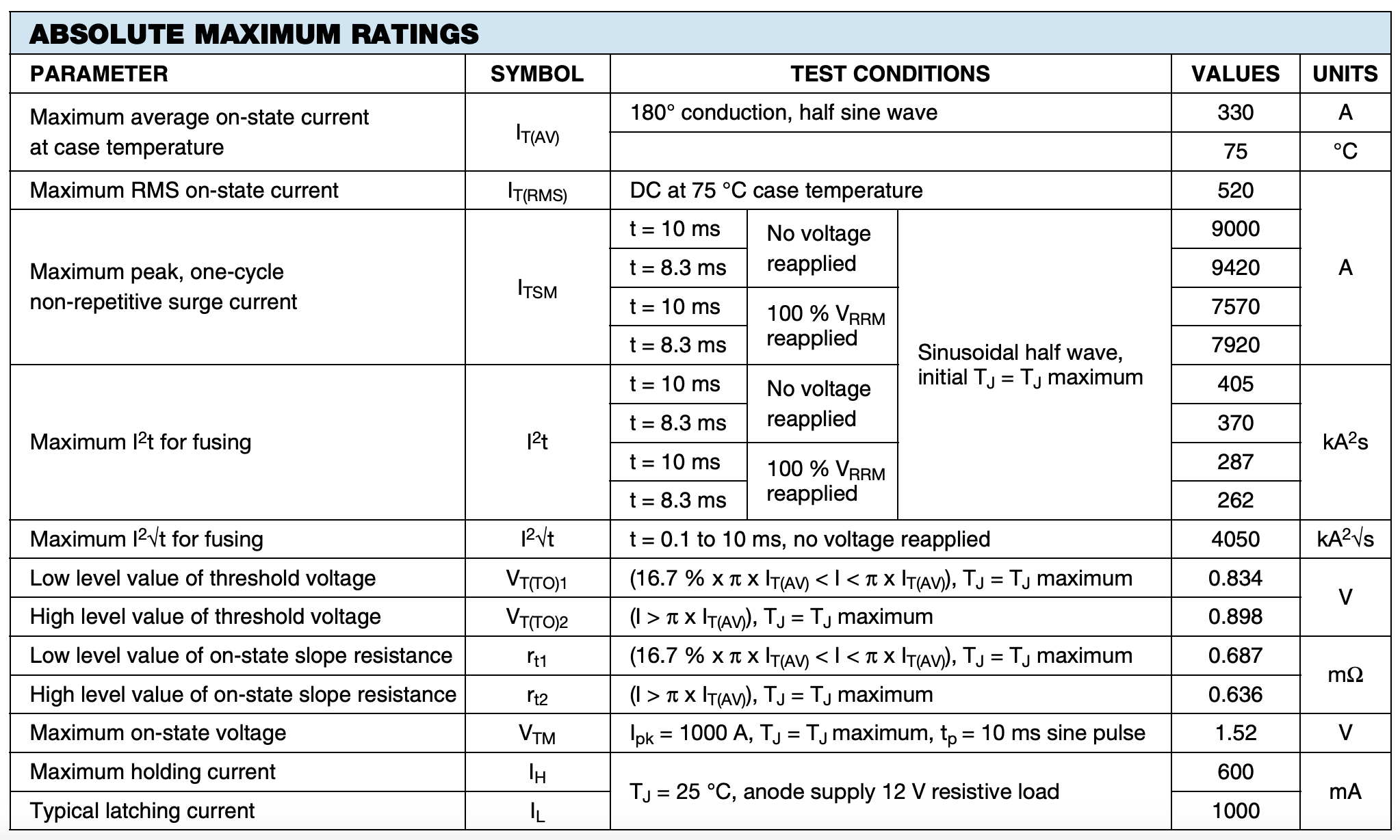

PRIMARY CHARACTERISTICS

PRIMARY CHARACTERISTICS
I_T(AV)	330 A
V_DRM/V_RRM	400V,800V,1200 V,1400V, 1600V,2000V
V_TM	1.52 V
I_GT	200 mA
Tj	-40C to 125°℃

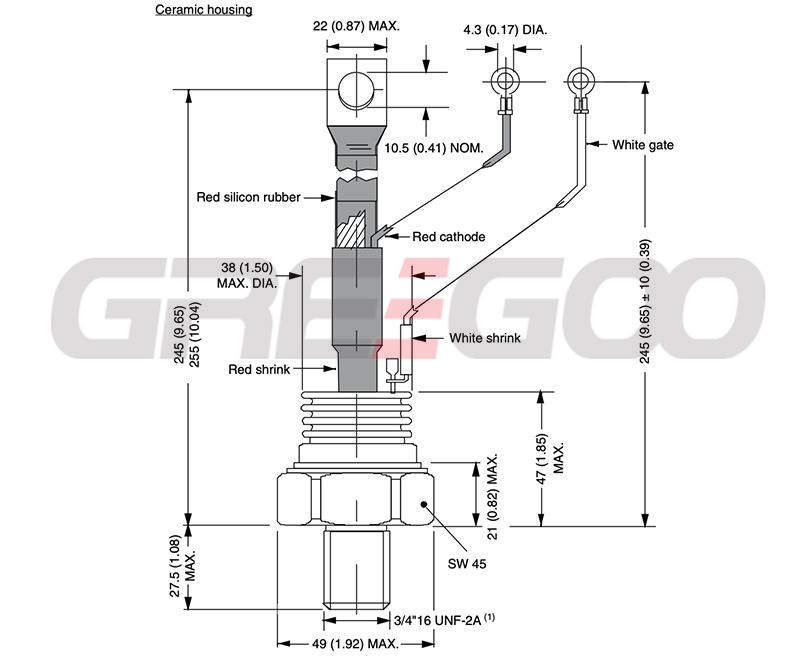

Package	TO-118(TO-209AE)
Circuit configuration	Single SCR

Part numbers

PART NUMBERS	VOLTAGE CODE	VDRM/VRRM V	VRSM V	STUD BASE
ST330S04P0PbF	04	400	500	3/4"-16UNF-2A threads
ST330S08P0PbF	08	800	900	3/4"-16UNF-2A threads
ST330S12P0PbF	12	1200	1300	3/4"-16UNF-2A threads
ST330S14P0PbF	14	1400	1500	3/4"-16UNF-2A threads

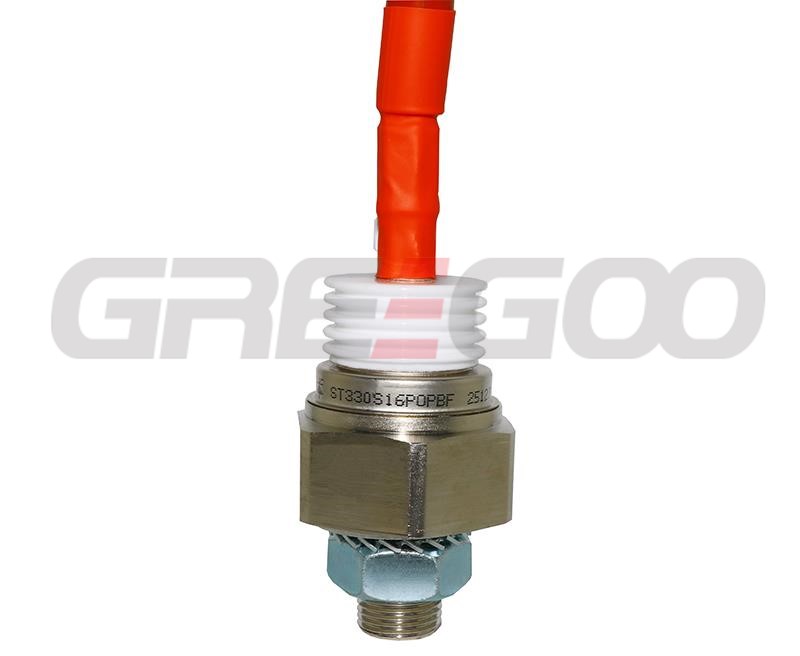

ST330S16P0PbF	16	1600	1700	3/4"-16UNF-2A threads
ST330S20P0PbF	20	2000	2100	3/4"-16UNF-2A threads
ST330S04M0PbF	04	400	500	Metric threads (M24 x 1.5)
ST330S08M0PbF	08	800	900	Metric threads (M24 x 1.5)
ST330S12M0PbF	12	1200	1300	Metric threads (M24 x 1.5)
ST330S14M0PbF	14	1400	1500	Metric threads (M24 x 1.5)
ST330S16M0PbF	16	1600	1700	Metric threads (M24 x 1.5)
ST330S20M0PbF	20	2000	2100	Metric threads (M24 x 1.5)
