Single Switch IGBT Module

A single-switch IGBT module offers high efficiency, fast switching, and compact design, making it ideal for power electronics applications. With high voltage and current ratings, it provides reliable performance with reduced switching losses and improved thermal management. These modules are widely used in motor drives, power supplies, renewable energy systems, welding machines, UPS systems, and electric vehicles, where efficient power control and reliability are essential. Their simplified circuit design and enhanced durability make them a preferred choice for various industrial and commercial applications.

Specification

Type	V_CES (V)	I_C (A)	V_CEsat (V)	R_thJC (K/W)	Outline	Infineon Equivalent	SEMIKRON Equivalent
G300GA12IE4G	1200	300	2.10	0.13	G3	FZ300R12KE3G, BSM300GA120DN2/DLC	-
G400GA12IE4	1200	400	2.10	0.07	G3	FZ400R12KE3/KE4, BSM400GA120DN2/DLC	-
G400GA12IE4S	1200	400	2.10	0.07	G3	FZ400R12KE3G, BSM400GA120DN2/DLC	-
G600GA12IE4	1200	600	2.10	0.05	G3	FZ600R12KE3/KE4, BSM600GA120DN2/DLC	-
G800GA12IE4	1200	800	2.10	0.03	G3	FZ800GA12KE3	-
G900GA12IE4	1200	900	2.10	0.02	G3	FZ900GA12KE4/KP4	-
G400GA12IS4	1200	400	3.00	0.07	G3	FZ400R12KS4	-
G600GA12IS4	1200	600	3.00	0.05	G3	FZ600R12KS4	-
G300GA12SE4G	1200	300	2.10	0.13	G3S	-	SKM300GA/12E4/124D
G400GA12SE4	1200	400	2.10	0.07	G3S	-	SKM400GA/12E4/124D
G600GA12SE4	1200	600	2.10	0.05	G3S	-	SKM600GA/12E4/124D/126D
G800GA12SE4	1200	800	2.10	0.03	G3S	-	SKM800GA126D
G900GA12SE4	1200	900	2.10	0.02	G3S	-	SKM900GA12E4
G300GA12ST4G	1200	300	2.30	0.13	G3S	-	SKM300GA12T4/12V/123D/128D
G400GA12ST4	1200	400	2.30	0.07	G3S	-	SKM400GA12T4/12V/123D128D
G600GA12ST4	1200	600	2.30	0.05	G3S	-	SKM500GA123DS
G400GA12SS4	1200	400	3.00	0.07	G3S	-	SKM600GA12D
G600GA12SS4	1200	600	3.00	0.05	G3S	-	SKM800GA12D
G300GA17IE4	1700	300	2.30	0.11	G3	BSM300GA170DN2, BSM300GA170DLC	-
G300GA17IE4S	1700	400	2.30	0.11	G3	BSM300GA170DN2S, BSM300GA170DL5	-
G400GA17IE4	1700	400	2.30	0.09	G3	FZ400R17KE3/KE4, BSM400GA170DLC	-
G600GA17IE4	1700	600	2.30	0.07	G3	FZ600R17KE3/KE4	-

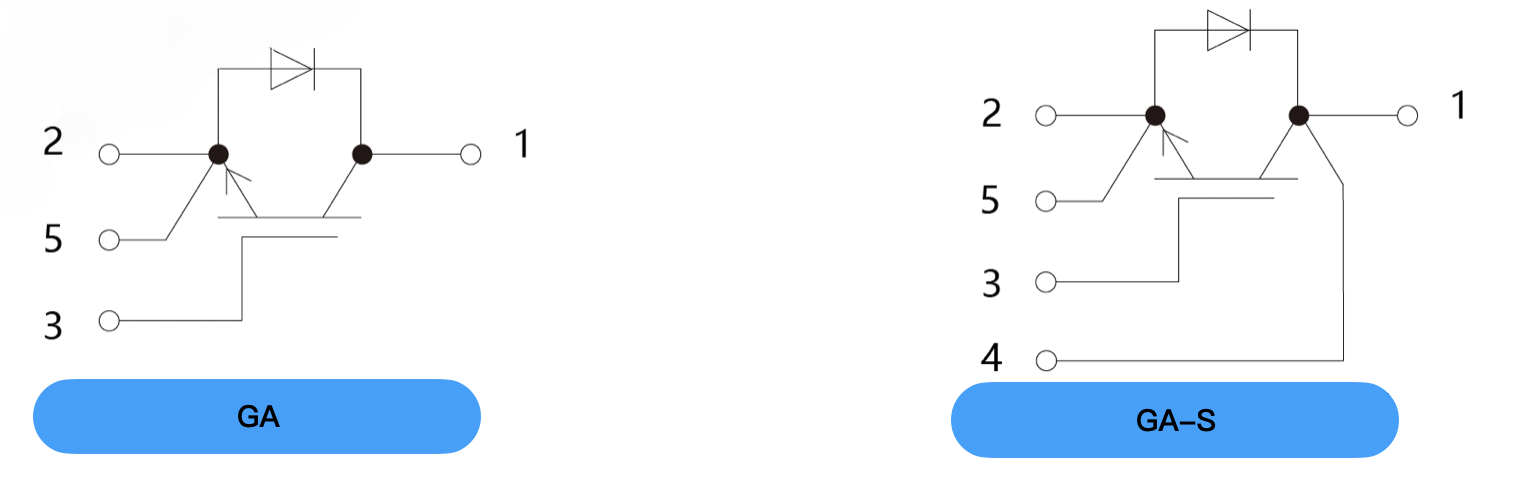

Diagram

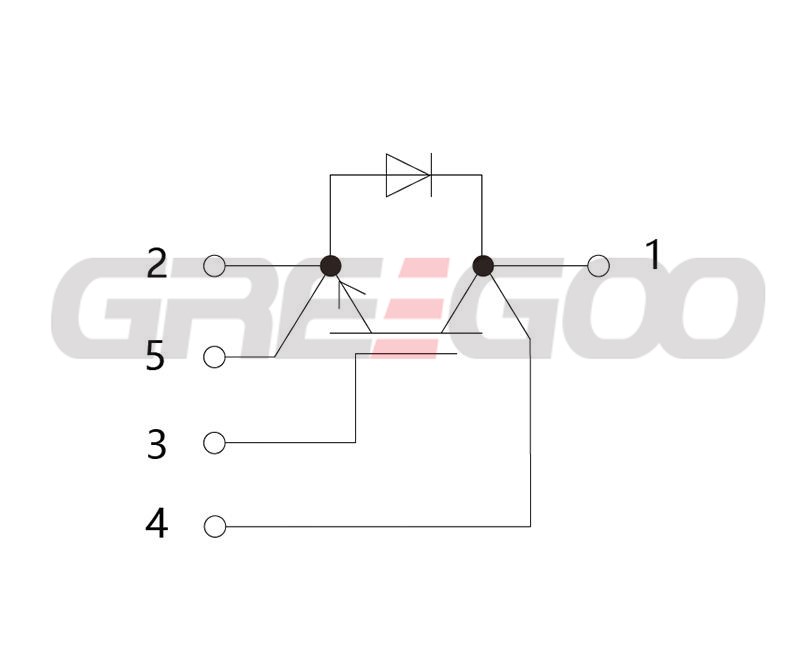

single switch module
