Product details

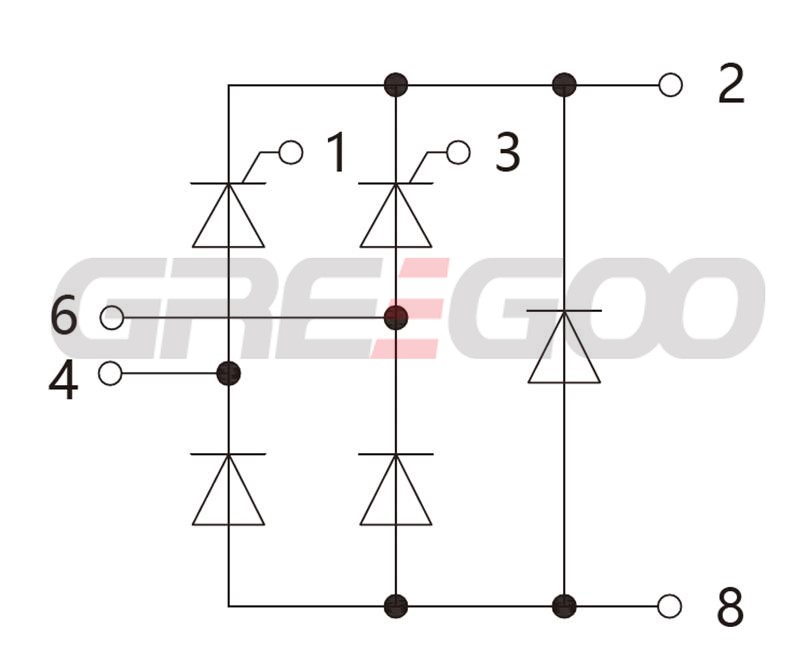

Single phase half controlled bridge rectifier with freewheeling diode
| Part Numbers | VRRM | ldAV | Tc | lFSM | V(F0) | Housing | Equivalent | |
| @Tc | 10ms,45℃ | @Tvj max | ||||||
| V | A | ℃ | A | V | IXYS | POWERSEM | ||
| GCH15XWC08~16 | 800~1600 | 15 | 85 | 190 | 1.00 | XWC | VHF15-08~16io5 | |
| GCH25XWA08~12 | 800~1200 | 32 | 85 | 200 | 0.85 | XWA | VHF25-08~12io7 | PSCH25/08~12 |
| GCH28XWC08~16 | 800~1600 | 28 | 85 | 300 | 0.90 | XWC | VHF28-08~16io5 | |
| GCH36XWC08~16 | 800~1600 | 36 | 85 | 320 | 0.85 | XWC | VHF36-08~16io5 | |
| GCH55XDA08~16 | 800~1600 | 46 | 85 | 520 | 0.85 | XDA | VHF55-08~16io5 | PSCH55/08~16 |
| GCH85XFA08~16 | 800~1600 | 82 | 85 | 1150 | 0.85 | XFA | VHF85-08~16io5 | PSCH85/08~16 |
| GCH125XFA08~16 | 800~1600 | 123 | 85 | 1500 | 0.85 | XFA | VHF125-08~16io5 | PSCH125/08~16 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
