VHF85 VHF125 Half Controlled Single Phase Rectifier Bridge with Freewheeling Diode

Home Products Diode Bridge ModuleIXYS Diode Bridge moduleVHF85 VHF125 Half Controlled Single Phase Rectifier Bridge with Freewheeling Diode

Product Details

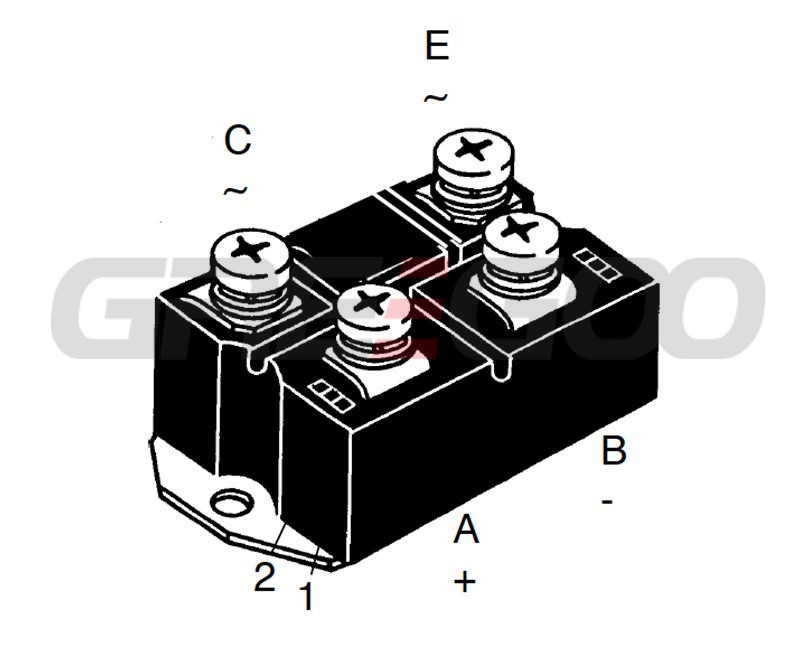

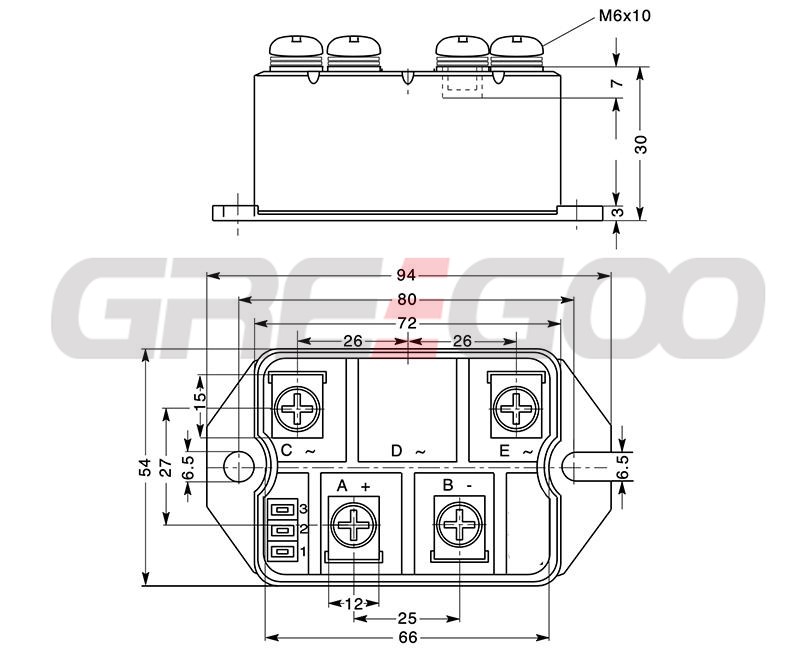

• Package with screw terminals
• Isolation voltage 3000 V~
• Planar passivated chips

• DC motor control

Advantages

• Easy to mount with two screws

• Space and weight savings

• Improved temperature and power cycling

Part Numbers

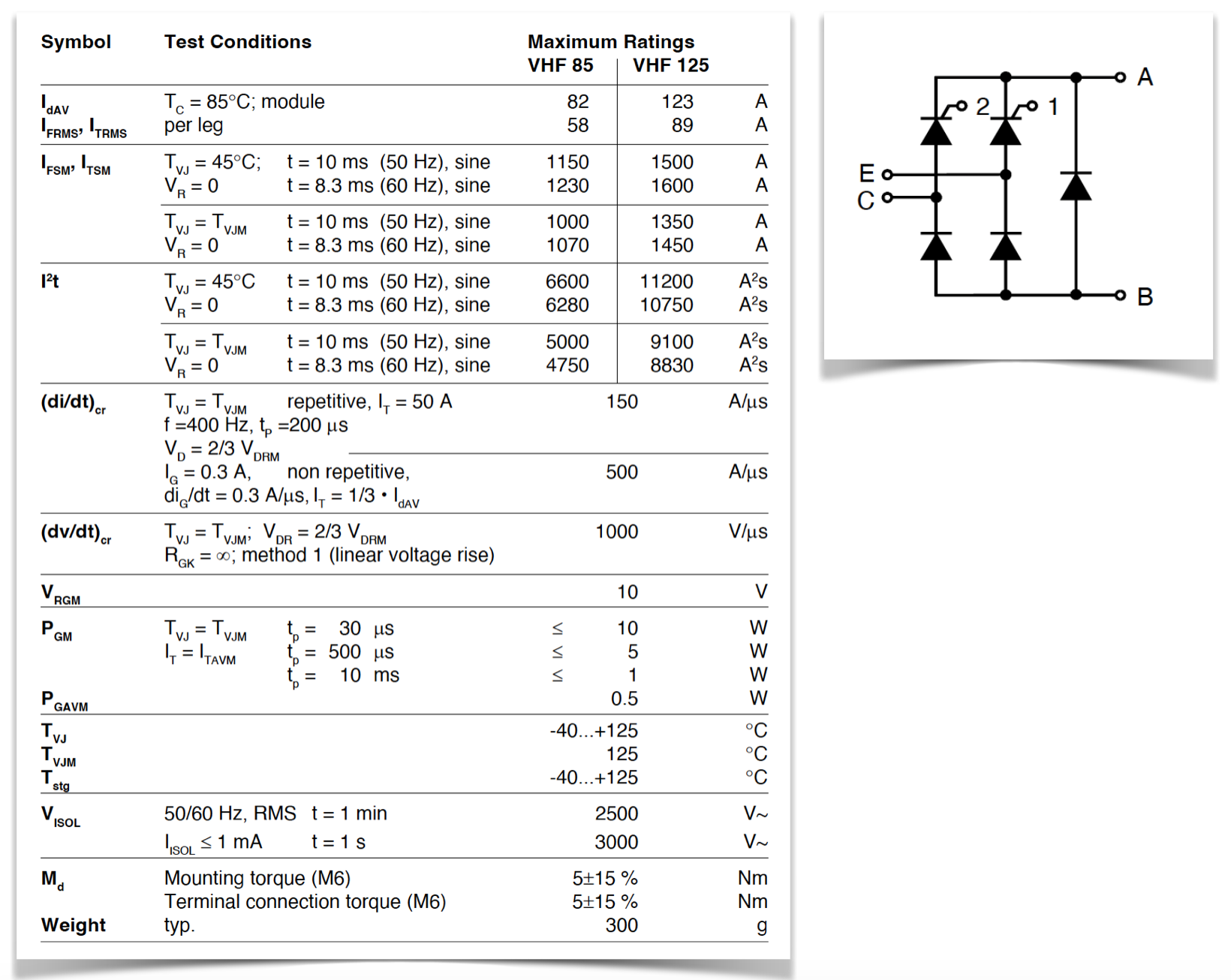

Specification

Half Controlled Single Phase Rectifier Bridge, B2HKF with Freewheeling Diode

VHF85 VHF125
