BY1-C 40KA SPD Surge Protection Device
Desctription | Symbol | Unit | Parameters & Models | |||
Rated operational voltage | Uc | V | 275 | 320 | 385 | 440 |
Nominal discharge current | In | kA | 20 | 20 | 20 | 20 |
Maximum discharge current | Imax | kA | 40 | 40 | 40 | 40 |
Voltage protection level | Up | Kv | 1.2 | 1.5 | 1.8 | 2.0 |
Protection degree | IP | 20 | 20 | 20 | 20 | |
Response time | ns | 25 | 25 | 25 | 25 | |
Fuse | A | 32 | 32 | 32 | 32 | |
Material | PA6 | PA6 | PA6 | PA6 | ||
Fire retardent (comply with) | UL94V-0 | UL94V-1 | UL94V-2 | UL94V-3 | ||
Standards | IEC61643-1:1998 | |||||

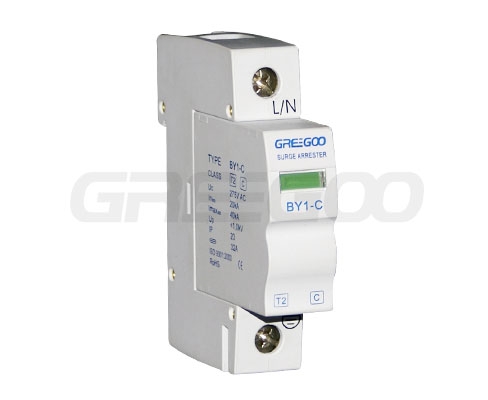

Single Phase Model | L/N | BY1-C/1-275 | BY1-C/1-320 | BY1-C/1-385 | BY1-C/1-440 | |
L,N | BY1-C/2-275 | BY1-C/2-320 | BY1-C/2-385 | BY1-C/2-440 | ||

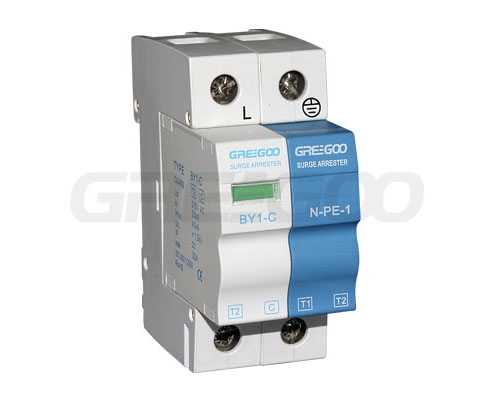

L/N+NPE | BY1-C/1+1-275 | BY1-C/1+1-320 | BY1-C/1+1-385 | BY1-C/1+1-440 | ||
Three phase Model | L1,L2,L3 | BY1-C/3-275 | BY1-C/3-320 | BY1-C/3-385 | BY1-C/3-440 | |

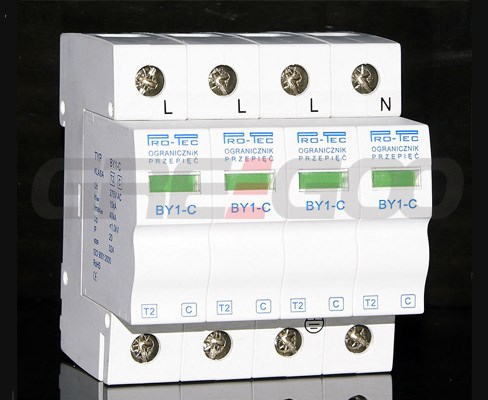

L1,L2,L3,N | BY1-C/4-275 | BY1-C/4-320 | BY1-C/4-385 | BY1-C/4-440 | ||

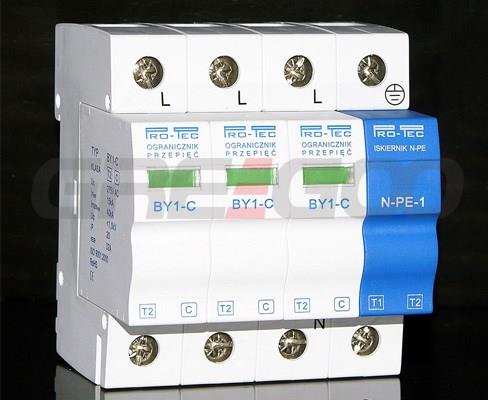

L1,L2,L3,N+NPE | BY1-C/3+1-275 | BY1-C/3+1-320 | BY1-C/3+1-385 | BY1-C/3+1-440 | ||
Local indication: Green indicates normal state and red indicates failure. |
