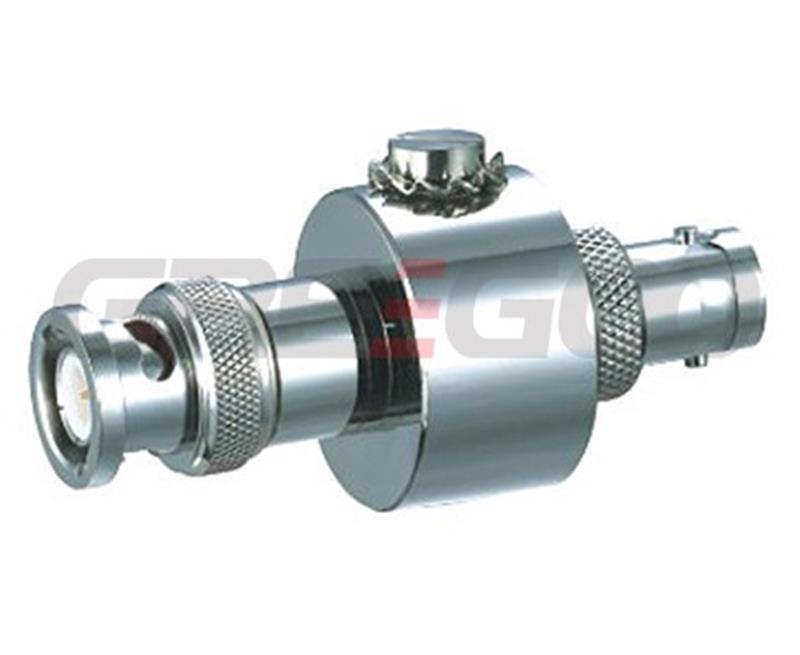

| Model | Unit | BYW-BNC/75A | BYW-N/75A | BYW-F/75A | BYW-SL16/75A |
| Max. continous operating voltage Uc | V | DC68V,AC130V,AC280V | |||
| Nominal discharge current (8/20us) In | kA | 10 | 10 | 10 | 10 |
| Voltage protection level (Up) | V | 600 | 600 | 600 | 600 |
| Frequency range | MHz | 650 | 650 | 650 | 650 |
| Insert loss | dB | 0.1 | 0.1 | 0.1 | 0.1 |
| VSWR | 1.2 | 1.2 | 1.2 | 1.2 | |
| Power | W | <300 | <300 | <300 | <300 |

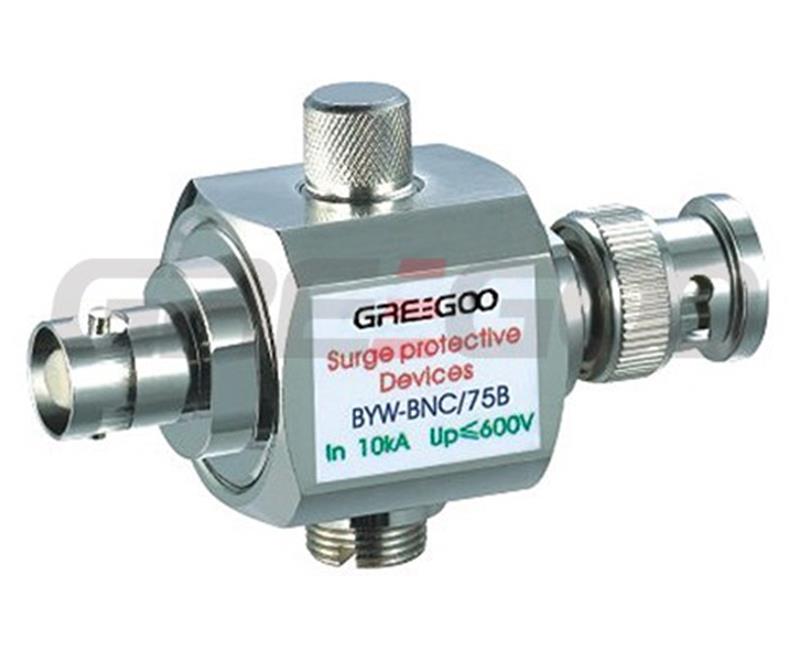

| Model | Unit | BYW-BNC/75B | BYW-N/75B | BYW-F/75B | BYW-SL16/75B |
| Max. continous operating voltage Uc | V | DC68V,AC130V,AC280V | |||
| Nominal discharge current (8/20us) In | kA | 10 | 10 | 10 | 10 |
| Voltage protection level (Up) | V | 600 | 600 | 600 | 600 |
| Frequency range | MHz | 1000 | 1000 | 1000 | 1000 |
| Insert loss | dB | 0.1 | 0.1 | 0.1 | 0.1 |
| VSWR | 1.2 | 1.2 | 1.2 | 1.2 | |
| Power | W | <300 | <300 | <300 | <300 |

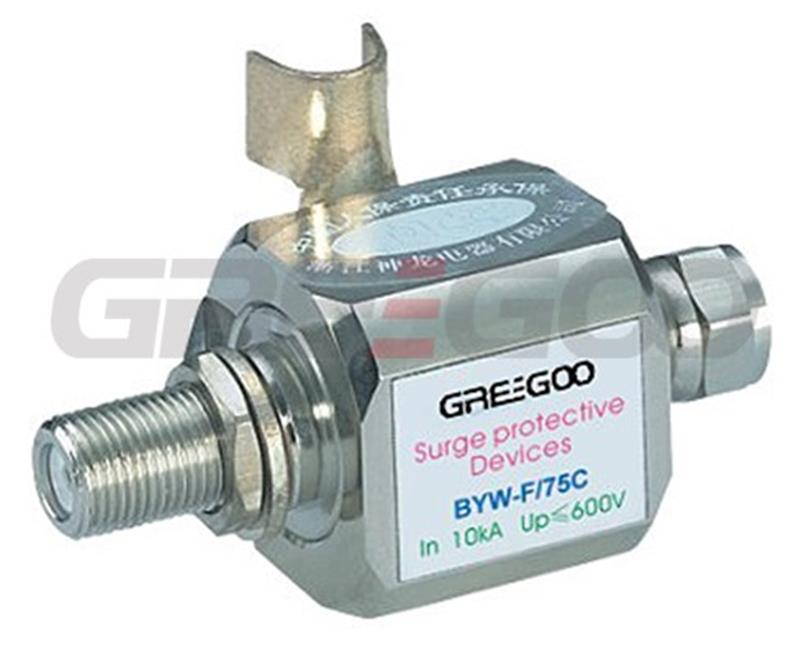

| Model | Unit | BYW-BNC/75C | BYW-N/75C | BYW-F/75C | BYW-SL16/75C |
| Max. continous operating voltage Uc | V | DC68V,AC130V,AC280V | |||
| Nominal discharge current (8/20us) In | kA | 10 | 10 | 10 | 10 |
| Voltage protection level (Up) | V | 600 | 600 | 600 | 600 |
| Frequency range | MHz | 2000 | 2000 | 2000 | 2000 |
| Insert loss | dB | 0.1 | 0.1 | 0.1 | 0.1 |
| VSWR | 1.2 | 1.2 | 1.2 | 1.2 | |
| Power | W | <300 | <300 | <300 | <300 |
