Feature

Clamp box for disc devices (V50)

Clamps suitable for disc devices with a housing diameter of 42mm and a height of 14mm



Features

  • Easy mounting for single sided cooling
  • Clamping force: 6.0kN
  • Min creeping distance 11mm

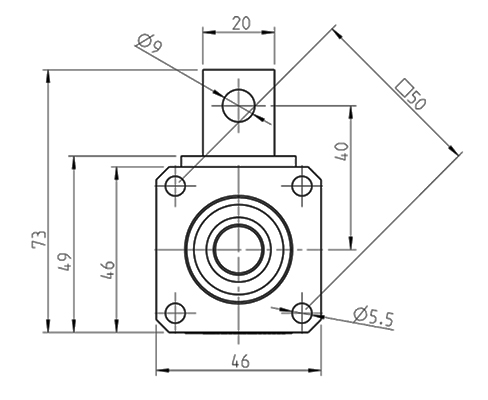

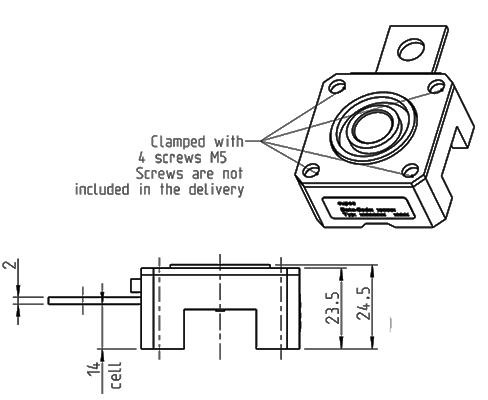

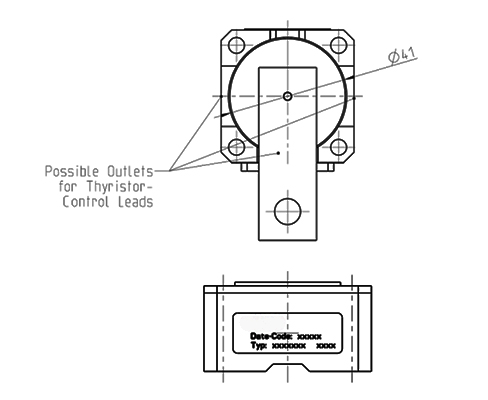

Dimensions




Product Details


Model

Clamping force

[kN]

Suitable for

disc housing

[mm]

Height

[mm]          .

Minimum creepage
distance

[mm]

V50-14.45N

4.5

42

14

11

V50-14.60N

6.0

42

14

11
