DC Solid State Regulators

Weak power part and strong power part are isolated by transformer.
Transistor PWM mode output, wide adjustment range, no mechanical wear and tear, long service life.
Solid package, small size, easy installation, shockproof, anti-corrosion, stable and reliable work.
Mainly used in DC power supply lighting, electric car, electromagnet and other equipment for dimming, speed control and power control.

Maximum load voltage	24 ～1200 VDC
Max. load current	10～2000 A
Control method	External signal voltage 0-10VDC or External adjustable potentiometer 10 KΩ
Isolation voltage	≥ 1800 V
Control voltage	12VDC or 24VDC
Output switching frequency	≥ 1 KHZ
Insulation voltage	≥ 2000 V
Insulation resistance	≥ 100 MΩ
Ambient temperature:	-20 ～ 70 ℃
Heat dissipation conditions	≥ 20A with heatsink, ≥ 30A heatsink with air forced cooling
Load current safety factor	Inductive load 3 ~ 4 times; resistive load 2 ~ 3 times

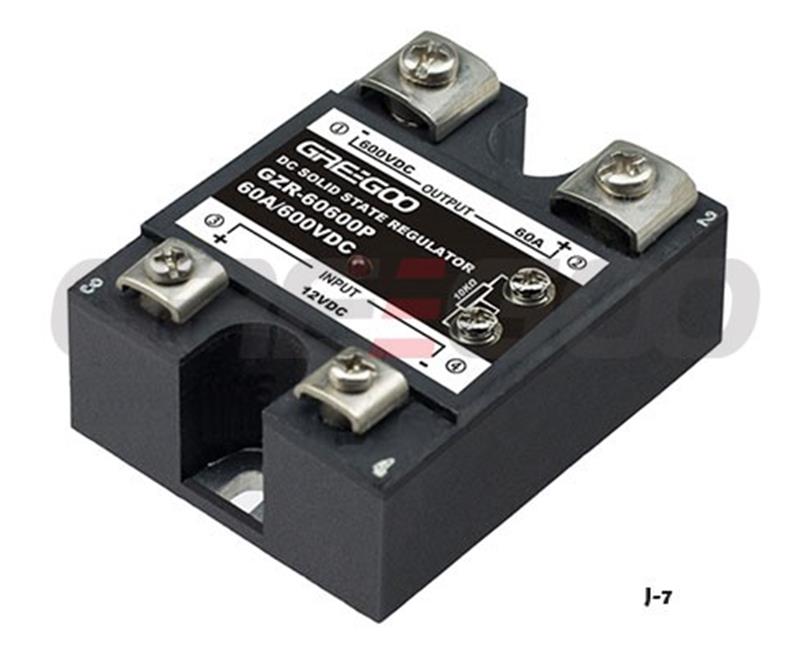

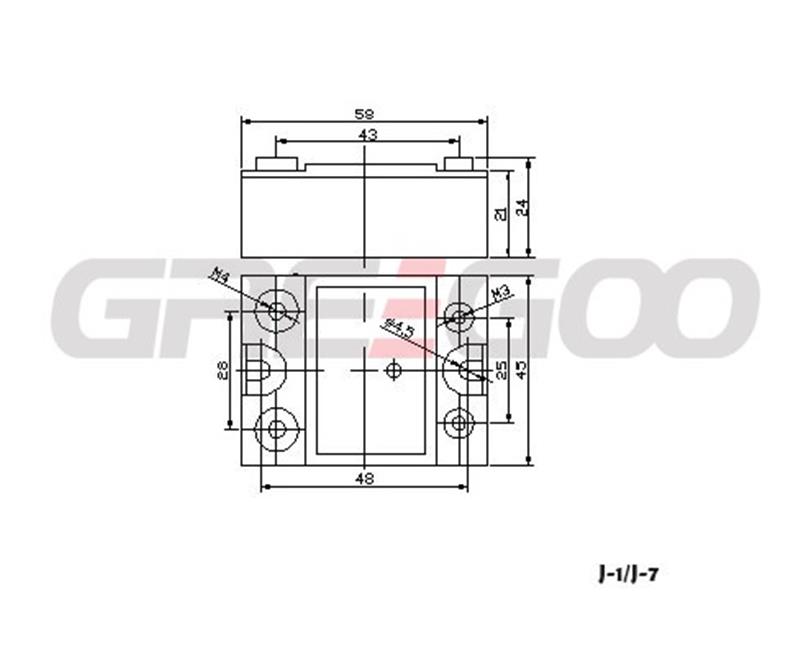

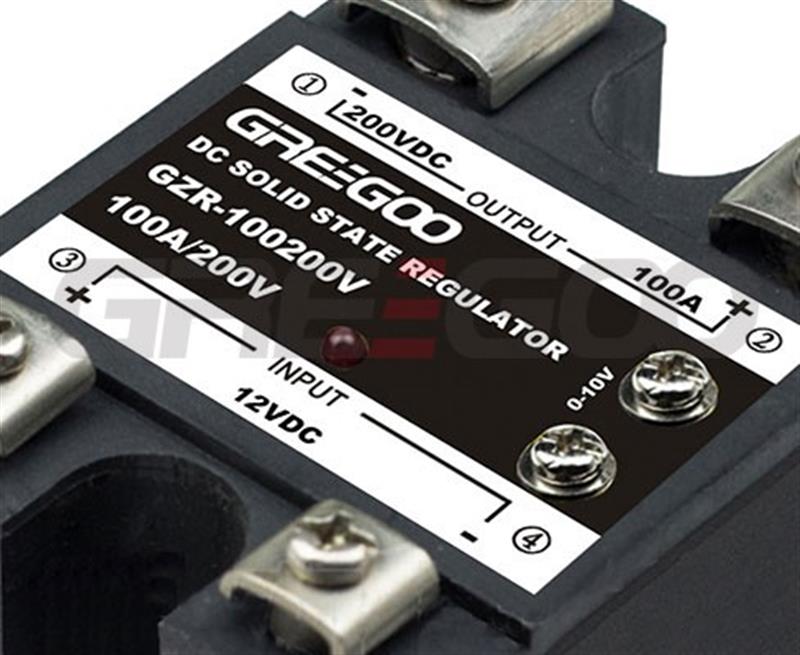

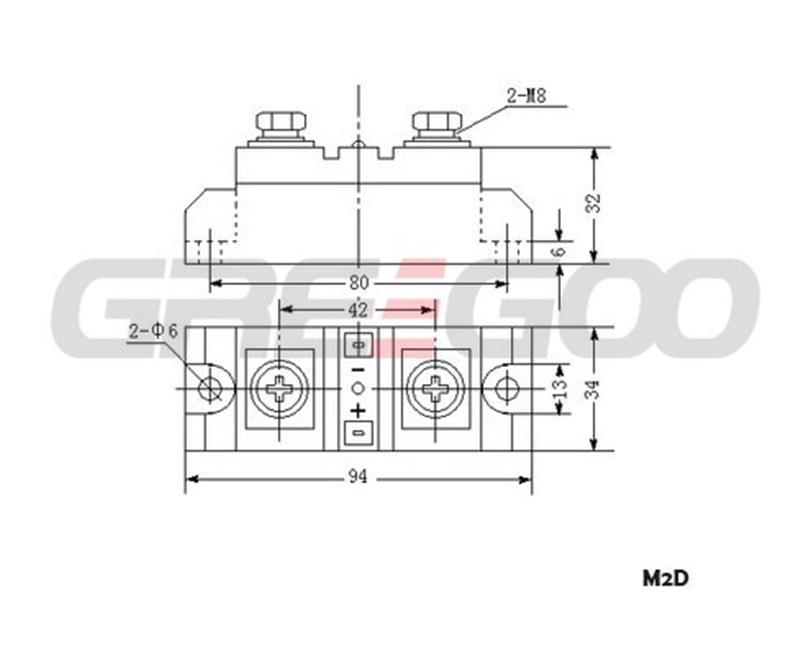

Dimension	58×45×21mm, 120×52×32mm, 135×60×50mm

Product selection guidelines:

When selecting our product, it is important to consider the nature of the load and leave appropriate margins for current and voltage levels. For resistive loads, choose the current based on 2-4 times the load current and the voltage based on 2-3 times the load voltage. For inductive or capacitive loads, select the current based on 4-8 times the load current and the voltage based on 4-5 times the load voltage.

To ensure optimal performance, take into account the relationship between the load current and ambient temperature. If the ambient temperature is high or the heat dissipation conditions are poor, it is recommended to increase the current capacity. To prevent short circuits in the load circuit during use, it is essential to include a fast circuit breaker or a fast fuse in the load circuit.

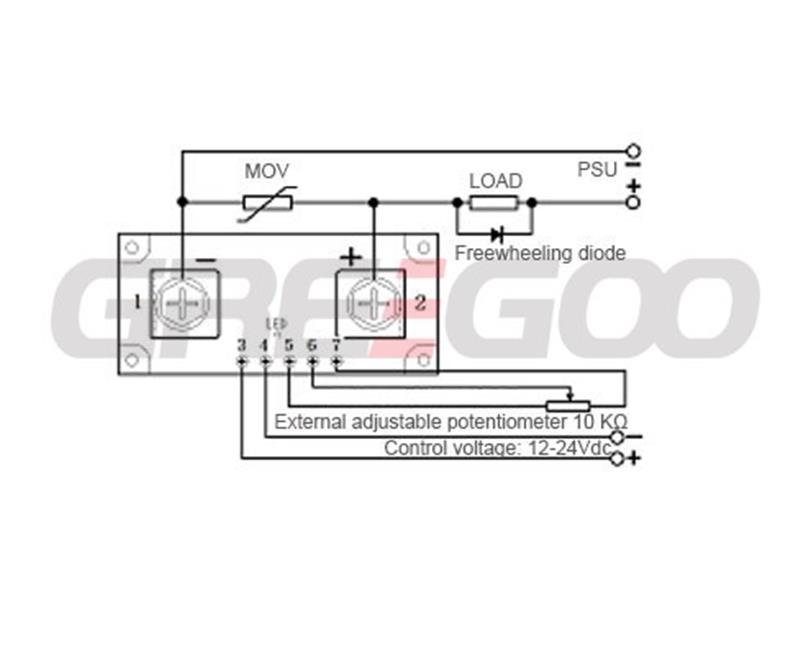

When dealing with inductive loads, it is crucial to include a freewheeling diode in parallel with the load or a voltage-dependent resistor and RC absorption circuit at the output end to prevent damage to the transistor from over-voltage. The voltage-dependent resistor (MOV) should be selected according to 1-2 times the power supply voltage, and the RC value should be selected according to the load power.

During installation, make sure that the contact surface between the heat sink and the product is flat and smooth. Apply a layer of thermal grease to its surface to optimize heat dissipation. Finally, tighten the screw with a flat washer and a spring washer symmetrically to secure it in place. We hope these guidelines help you to make the best use of our product.

Model selection table

	OUTPUT
MODEL	RATED CURRENT	VOLTAGE RANGE	CONTROL	CASING
GZR-1060V	10A	0-60VDC	0-10V	J-7
GZR-1060P	10A	0-60VDC	POTENTIOMETER	J-7
GZR-2060V	20A	0-60VDC	0-10V	J-7
GZR-2060P	20A	0-60VDC	POTENTIOMETER	J-7
GZR-3060V	30A	0-60VDC	0-10V	J-7
GZR-3060P	30A	0-60VDC	POTENTIOMETER	J-7
GZR-4060V	40A	0-60VDC	0-10V	J-7
GZR-4060P	40A	0-60VDC	POTENTIOMETER	J-7
GZR-5060V	50A	0-60VDC	0-10V	J-7
GZR-5060P	50A	0-60VDC	POTENTIOMETER	J-7
GZR-6060V	60A	0-60VDC	0-10V	J-7
GZR-6060P	60A	0-60VDC	POTENTIOMETER	J-7
GZR-8060V	80A	0-60VDC	0-10V	J-7
GZR-8060P	80A	0-60VDC	POTENTIOMETER	J-7
GZR-10060V	100A	0-60VDC	0-10V	J-7
GZR-10060P	100A	0-60VDC	POTENTIOMETER	J-7
GZR-12060V	120A	0-60VDC	0-10V	J-7
GZR-12060P	120A	0-60VDC	POTENTIOMETER	J-7
GZR-15060V	150A	0-60VDC	0-10V	J-7
GZR-15060P	150A	0-60VDC	POTENTIOMETER	J-7
GZR-20060V	200A	0-60VDC	0-10V	J-7
GZR-20060P	200A	0-60VDC	POTENTIOMETER	J-7

GZR-10100V	10A	0-100VDC	0-10V	J-7
GZR-10100P	10A	0-100VDC	POTENTIOMETER	J-7
GZR-20100V	20A	0-100VDC	0-10V	J-7
GZR-20100P	20A	0-100VDC	POTENTIOMETER	J-7
GZR-30100V	30A	0-100VDC	0-10V	J-7
GZR-30100P	30A	0-100VDC	POTENTIOMETER	J-7
GZR-40100V	40A	0-100VDC	0-10V	J-7
GZR-40100P	40A	0-100VDC	POTENTIOMETER	J-7
GZR-50100V	50A	0-100VDC	0-10V	J-7
GZR-50100P	50A	0-100VDC	POTENTIOMETER	J-7
GZR-60100V	60A	0-100VDC	0-10V	J-7
GZR-60100P	60A	0-100VDC	POTENTIOMETER	J-7
GZR-80100V	80A	0-100VDC	0-10V	J-7
GZR-80100P	80A	0-100VDC	POTENTIOMETER	J-7
GZR-100100V	100A	0-100VDC	0-10V	J-7
GZR-100100P	100A	0-100VDC	POTENTIOMETER	J-7
GZR-120100V	120A	0-100VDC	0-10V	J-7
GZR-120100P	120A	0-100VDC	POTENTIOMETER	J-7
GZR-150100V	150A	0-100VDC	0-10V	J-7
GZR-150100P	150A	0-100VDC	POTENTIOMETER	J-7
GZR-200100V	200A	0-100VDC	0-10V	J-7
GZR-200100P	200A	0-100VDC	POTENTIOMETER	J-7
GZR-300100V	300A	0-100VDC	0-10V	M-2D
GZR-300100P	300A	0-100VDC	POTENTIOMETER	M-2D
GZR-400100V	400A	0-100VDC	0-10V	M-2D
GZR-400100P	400A	0-100VDC	POTENTIOMETER	M-2D
GZR-500100V	500A	0-100VDC	0-10V	M-2D
GZR-500100P	500A	0-100VDC	POTENTIOMETER	M-2D
GZR-600100V	600A	0-100VDC	0-10V	M-2D
GZR-600100P	600A	0-100VDC	POTENTIOMETER	M-2D
GZR-800100V	800A	0-100VDC	0-10V	M-3
GZR-800100P	800A	0-100VDC	POTENTIOMETER	M-3
GZR-1000100V	1000A	0-100VDC	0-10V	M-3
GZR-1000100P	1000A	0-100VDC	POTENTIOMETER	M-3
GZR-1200100V	1200A	0-100VDC	0-10V	M-3
GZR-1200100P	1200A	0-100VDC	POTENTIOMETER	M-3

GZR-10200V	10A	0-200VDC	0-10V	J-7
GZR-10200P	10A	0-200VDC	POTENTIOMETER	J-7
GZR-20200V	20A	0-200VDC	0-10V	J-7
GZR-20200P	20A	0-200VDC	POTENTIOMETER	J-7
GZR-30200V	30A	0-200VDC	0-10V	J-7
GZR-30200P	30A	0-200VDC	POTENTIOMETER	J-7
GZR-40200V	40A	0-200VDC	0-10V	J-7
GZR-40200P	40A	0-200VDC	POTENTIOMETER	J-7
GZR-50200V	50A	0-200VDC	0-10V	J-7
GZR-50200P	50A	0-200VDC	POTENTIOMETER	J-7
GZR-60200V	60A	0-200VDC	0-10V	J-7
GZR-60200P	60A	0-200VDC	POTENTIOMETER	J-7
GZR-80200V	80A	0-200VDC	0-10V	J-7
GZR-80200P	80A	0-200VDC	POTENTIOMETER	J-7
GZR-100200V	100A	0-200VDC	0-10V	J-7
GZR-100200P	100A	0-200VDC	POTENTIOMETER	J-7
GZR-120200V	120A	0-200VDC	0-10V	J-7
GZR-120200P	120A	0-200VDC	POTENTIOMETER	J-7
GZR-150200V	150A	0-200VDC	0-10V	J-7
GZR-150200P	150A	0-200VDC	POTENTIOMETER	J-7
GZR-200200V	200A	0-200VDC	0-10V	M-2D
GZR-200200P	200A	0-200VDC	POTENTIOMETER	M-2D
GZR-300200V	300A	0-200VDC	0-10V	M-2D
GZR-300200P	300A	0-200VDC	POTENTIOMETER	M-2D
GZR-400200V	400A	0-200VDC	0-10V	M-2D
GZR-400200P	400A	0-200VDC	POTENTIOMETER	M-2D
GZR-500200V	500A	0-200VDC	0-10V	M-3
GZR-500200P	500A	0-200VDC	POTENTIOMETER	M-3
GZR-600200V	600A	0-200VDC	0-10V	M-3
GZR-600200P	600A	0-200VDC	POTENTIOMETER	M-3

GZR-10600V	10A	0-600VDC	0-10V	J-7
GZR-10600P	10A	0-600VDC	POTENTIOMETER	J-7
GZR-20600V	20A	0-600VDC	0-10V	J-7
GZR-20600P	20A	0-600VDC	POTENTIOMETER	J-7
GZR-30600V	30A	0-600VDC	0-10V	J-7
GZR-30600P	30A	0-600VDC	POTENTIOMETER	J-7
GZR-40600V	40A	0-600VDC	0-10V	J-7
GZR-40600P	40A	0-600VDC	POTENTIOMETER	J-7
GZR-50600V	50A	0-600VDC	0-10V	J-7
GZR-50600P	50A	0-600VDC	POTENTIOMETER	J-7
GZR-60600V	60A	0-600VDC	0-10V	J-7
GZR-60600P	60A	0-600VDC	POTENTIOMETER	J-7
GZR-80600V	80A	0-600VDC	0-10V	J-7
GZR-80600P	80A	0-600VDC	POTENTIOMETER	J-7
GZR-100600V	100A	0-600VDC	0-10V	J-7
GZR-100600P	100A	0-600VDC	POTENTIOMETER	J-7
GZR-120600V	120A	0-600VDC	0-10V	J-7
GZR-120600P	120A	0-600VDC	POTENTIOMETER	J-7
GZR-150600V	150A	0-600VDC	0-10V	J-7
GZR-150600P	150A	0-600VDC	POTENTIOMETER	J-7
GZR-200600V	200A	0-600VDC	0-10V	J-7
GZR-200600P	200A	0-600VDC	POTENTIOMETER	J-7
GZR-300600V	300A	0-600VDC	0-10V	M-2D
GZR-300600P	300A	0-600VDC	POTENTIOMETER	M-2D
GZR-400600V	400A	0-600VDC	0-10V	M-2D
GZR-400600P	400A	0-600VDC	POTENTIOMETER	M-2D
GZR-500600V	500A	0-600VDC	0-10V	M-2D
GZR-500600P	500A	0-600VDC	POTENTIOMETER	M-2D
GZR-600600V	600A	0-600VDC	0-10V	M-2D
GZR-600600P	600A	0-600VDC	POTENTIOMETER	M-2D
GZR-800600V	800A	0-600VDC	0-10V	M-3
GZR-800600P	800A	0-600VDC	POTENTIOMETER	M-3
GZR-1000600V	1000A	0-600VDC	0-10V	M-3
GZR-1000600P	1000A	0-600VDC	POTENTIOMETER	M-3

GZR-101200V	10A	0-1200VDC	0-10V	J-7
GZR-101200P	10A	0-1200VDC	POTENTIOMETER	J-7
GZR-201200V	20A	0-1200VDC	0-10V	J-7
GZR-201200P	20A	0-1200VDC	POTENTIOMETER	J-7
GZR-301200V	30A	0-1200VDC	0-10V	J-7
GZR-301200P	30A	0-1200VDC	POTENTIOMETER	J-7
GZR-401200V	40A	0-1200VDC	0-10V	J-7
GZR-401200P	40A	0-1200VDC	POTENTIOMETER	J-7
GZR-501200V	50A	0-1200VDC	0-10V	J-7
GZR-501200P	50A	0-1200VDC	POTENTIOMETER	J-7
GZR-601200V	60A	0-1200VDC	0-10V	J-7
GZR-601200P	60A	0-1200VDC	POTENTIOMETER	J-7
GZR-801200V	80A	0-1200VDC	0-10V	J-7
GZR-801200P	80A	0-1200VDC	POTENTIOMETER	J-7
GZR-1001200V	100A	0-1200VDC	0-10V	J-7
GZR-1001200P	100A	0-1200VDC	POTENTIOMETER	J-7
GZR-1201200V	120A	0-1200VDC	0-10V	J-7
GZR-1201200P	120A	0-1200VDC	POTENTIOMETER	J-7
GZR-1501200V	150A	0-1200VDC	0-10V	J-7
GZR-1501200P	150A	0-1200VDC	POTENTIOMETER	J-7
GZR-2001200V	200A	0-1200VDC	0-10V	M-2D
GZR-2001200P	200A	0-1200VDC	POTENTIOMETER	M-2D
GZR-3001200V	300A	0-1200VDC	0-10V	M-2D
GZR-3001200P	300A	0-1200VDC	POTENTIOMETER	M-2D
GZR-4001200V	400A	0-1200VDC	0-10V	M-2D
GZR-4001200P	400A	0-1200VDC	POTENTIOMETER	M-2D
GZR-5001200V	500A	0-1200VDC	0-10V	M-2D
GZR-5001200P	500A	0-1200VDC	POTENTIOMETER	M-2D
GZR-6001200V	600A	0-1200VDC	0-10V	M-3
GZR-6001200P	600A	0-1200VDC	POTENTIOMETER	M-3
GZR-8001200V	800A	0-1200VDC	0-10V	M-3
GZR-8001200P	800A	0-1200VDC	POTENTIOMETER	M-3
GZR-10001200V	1000A	0-1200VDC	0-10V	M-3
GZR-10001200P	1000A	0-1200VDC	POTENTIOMETER	M-3

Note: 4-20mA control can be made against your request.
