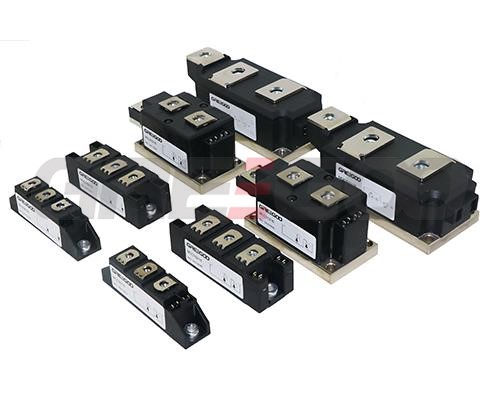

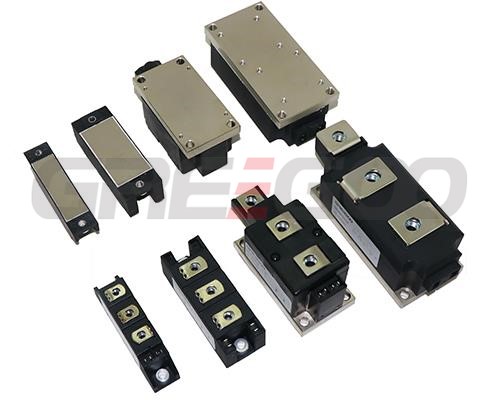

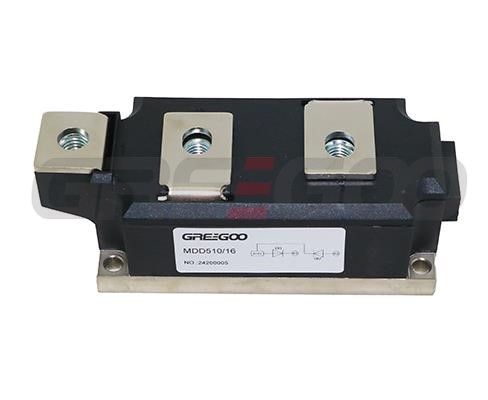

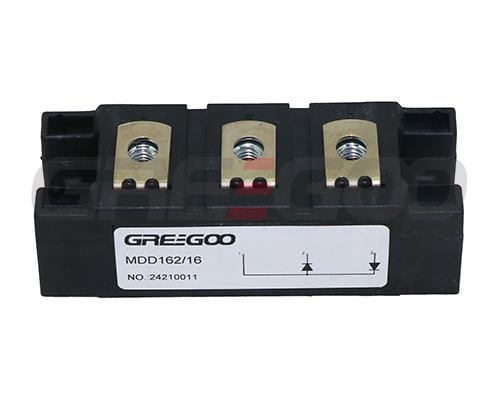

DCB plate dual Rectifier Diode Modules
MDD 26...310 Dual Diode Modules
| Part Number | VRRM | ITAVM | ITRMS | ITSM | ITSM | VT0 | rT | Tvjm | RthJC | RthCH | Package |
| VDRM | Tc=85°C (A) | (A) | 10ms | 8.33ms | (V) | (mOhms) | (°C) | max | (K/W) | ||
| (V) | Tvj=45°C (A) | Tvj=45°C (A) | (K/W) | ||||||||
| MDD26-16N1B | 1600 | 36 | 100 | 650 | 700 | 0.8 | 6.1 | 150 | 1 | 0.2 | TO-240 AA |
| MDD44-16N1B | 1600 | 59 | 100 | 1150 | 1240 | 0.8 | 4.3 | 150 | 0.59 | 0.2 | TO-240 AA |
| MDD56-16N1B | 1600 | 71 | 100 | 1400 | 1510 | 0.8 | 3 | 150 | 0.51 | 0.2 | TO-240 AA |
| MDD72-16N1B | 1600 | 99 | 100 | 1700 | 1840 | 0.8 | 2.3 | 150 | 0.35 | 0.2 | TO-240 AA |
| MDD95-16N1B | 1600 | 120 | 100 | 2800 | 3030 | 0.75 | 1.95 | 150 | 0.26 | 0.2 | TO-240 AA |
| MDD142-16N1 | 1600 | 165 | 100 | 4700 | 5000 | 0.8 | 1.3 | 150 | 0.21 | 0.1 | Y4-M6 |
| MDD172-16N1 | 1600 | 190 | 100 | 6600 | 7290 | 0.8 | 0.8 | 150 | 0.21 | 0.1 | Y4-M6 |
| MDD200-16N1 | 1600 | 224 | 100 | 10500 | 11200 | 0.8 | 0.6 | 150 | 0.13 | 0.1 | Y4-M6 |
| MDD255-16N1 | 1600 | 270 | 100 | 9800 | 10600 | 0.8 | 0.6 | 150 | 0.14 | 0.04 | Y1-CU |
| MDD310-16N1 | 1600 | 300 | 100 | 11500 | 12400 | 0.75 | 0.63 | 150 | 0.13 | 0.04 | Y1-CU |
| MDD312-16N1 | 1600 | 310 | 100 | 10800 | 11700 | 0.8 | 0.6 | 150 | 0.12 | 0.04 | Y1-CU |
| MDD810-16N2 | 1600 | 807 | 85 | - | - | 0.78 | 0.23 | 150 | 0.062 | 0.02 | B-76 |
