Dual solid state relays

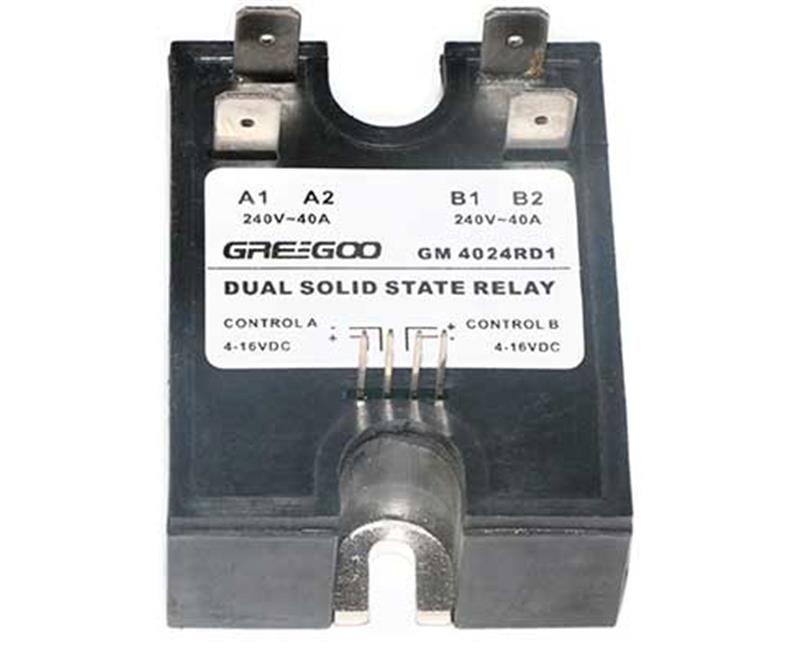

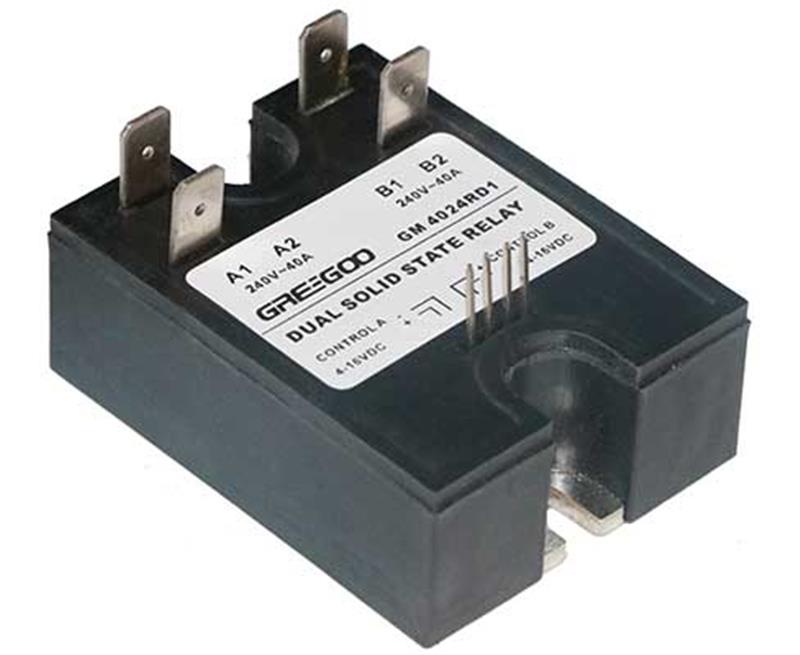

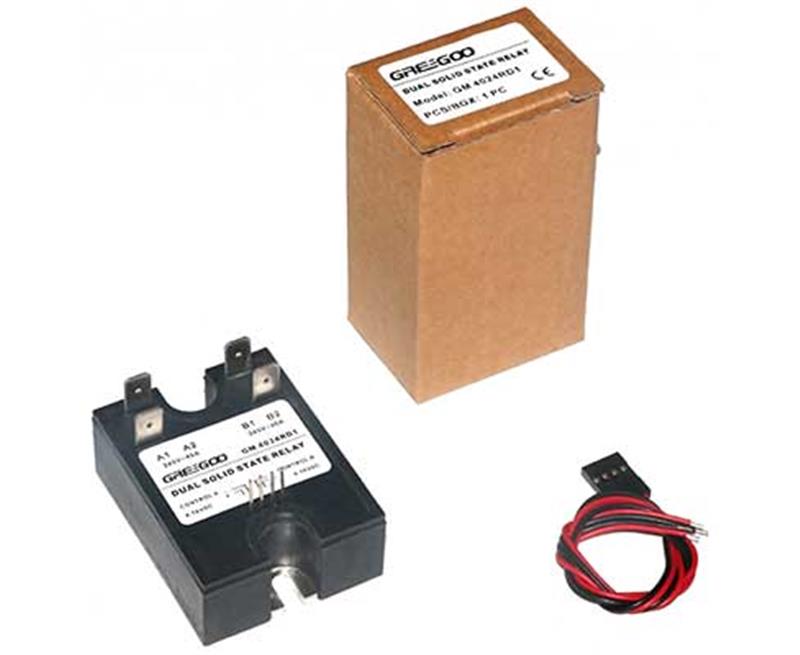

Dual output solid state relays
GM series Solid State Relays are Dual AC relays,Triac or SCR Output. The Triac version of the zero switching relay is an inexpensive solution for resistive loads. The zero switching relay switches on when the AC sine voltage just crosses zero,and switches off when the current crosses zero. The SCR Output is Dual SCR Power Hybrid technology provides highly efficient thermal management for greatly increased cyclic life.
- Rated operational current 10 10 to 40 40 Amps.
- Rated operational voltage 240V
- Input Voltage Range 4 to 16 Vdc.
- 2500 Vrms Optical Isolation.(input/output)
- Both “Zero Voltage” & phase controllable “Random Switching” versions.
Voltage | Control voltage | Rated operational current | |||
10Amp | 15Amp | 25Amp | 40Amp | ||
240 VAC “Z” | 4~16 Vdc | GM1024ZD1 | GM1524ZD1 | GM2524ZD1 | GM4024ZD1 |
240 VAC “R” | 4~16 Vdc | GM1024RD1 | GM1524RD1 | GM2524RD1 | GM4024RD1 |
440 VAC “Z” | 4~16 Vdc | GM1044ZD1 | GM1544ZD1 | GM2544ZD1 | GM4044ZD1 |
440 VAC “R” | 4-16 Vdc | GM1044RD1 | GM1544RD1 | GM2544RD1 | GM4044RD1 |
2 phase output solid state relays
2 phase SSR, 25A, 40A, 50A, 40-480 or 600Vac output, 4-32Vdc control, zero crossing and random control.
View More2 channel solid state relay up to 120A
60A, 80A, 100A and 120A dual output SSR.
View More4 channels output Solid State Relays
4 output Solid State Relays, 240V/440V/660VAC up to 100A.
View More2 phase AC switching solid state relays
Dual output, ac switching, dual control and dual output, one control dual output optional.
