    ELCB Breakers RCD-B5ELCB Breakers RCD-B5
Product Details

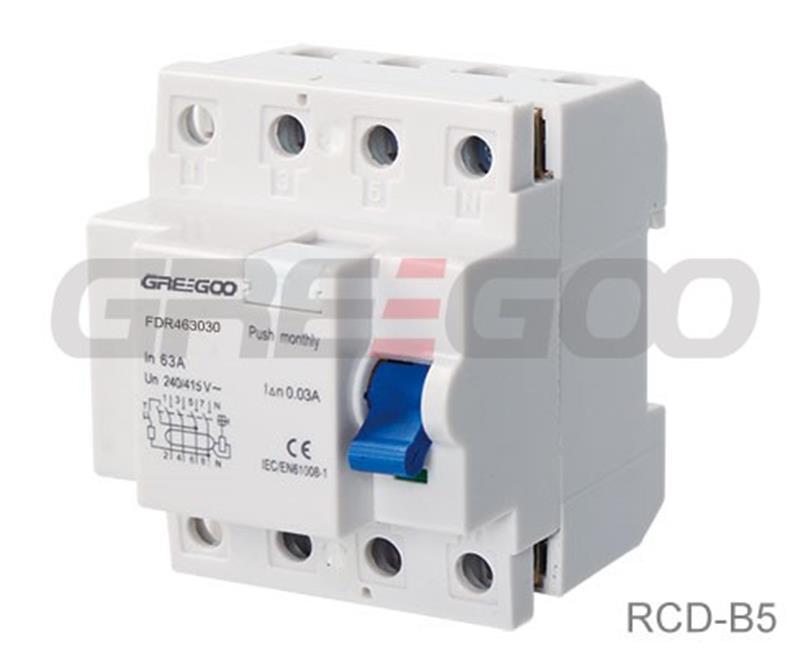

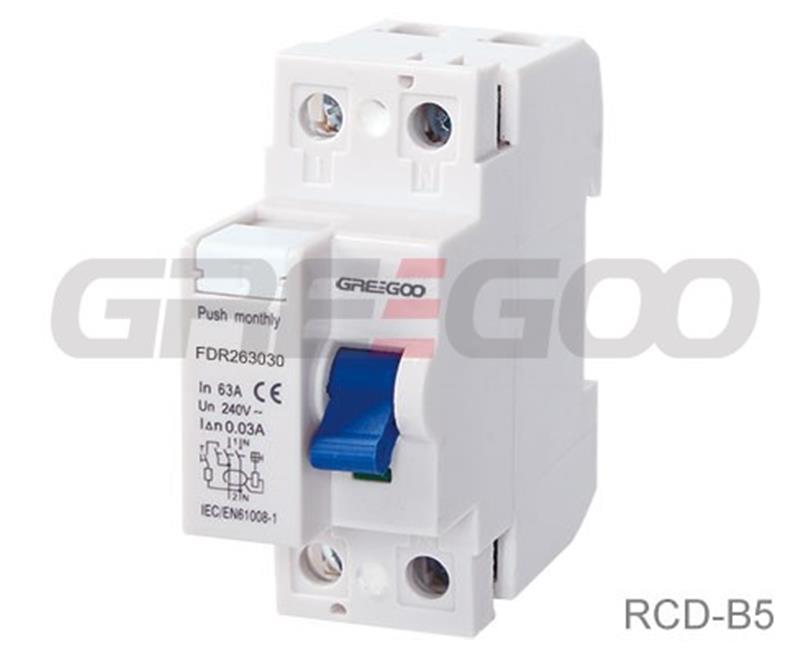

ELCB Breakers RCD-B5

Model Rated Current Pole No. Type
30mA 100mA 300mA (A)
FDR225030 FDR225100 FDR225300 25 2 AC
FDR240030 FDR240100 FDR240300 40 2 AC
FDR263030 FDR263100 FDR263300 63 2 AC
FDR425030 FDR425100 FDR425300 25 4 AC
FDR440030 FDR440100 FDR440300 40 4 AC
FDR463030 FDR463100 FDR463300 63 4 AC
FDR225030A FDR225100A FDR225300A 25 2 A
FDR240030A FDR240100A FDR240300A 40 2 A
FDR263030A FDR263100A FDR263300A 63 2 A
FDR425030A FDR425100A FDR425300A 25 4 A
FDR440030A FDR440100A FDR440300A 40 4 A
FDR463030A FDR463100A FDR463300A 63 4 A


Model No. FDR2__RCD-B5 FDR4__RCD-B5
Casing code RCD-B5 RCD-B5
Pole No. 2 Pole / 1P+N 4 Pole / 3P+N
Standard Conformity IEC 61008-1 IEC 61008-1
Rated Current (In) A 25, 40, 63 25, 40, 63
Sensitivity (I△n) mA 30, 100, 300 30, 100, 300
Rated Voltage (Un) Vac 240 240 / 415
Type A/AC A/AC
Shortcircuit Withstand Capacity kA 6 6
Residual Making Breaking Capacity A 10 In 10 In
Rated Insulation Voltage (Ui) V 500 500
Rated Frequency Hz 50 50
Rated Shock Withstand Voltage V 4000 4000
Torque Nm 3.0 3.0
Ambient Temperature oC -25 to +40 -25 to +40
Electrical Endurance/Mechanical operations 10000 10000
Mounting Din Rail (35 * 7.5) mm Din Rail (35 * 7.5) mm
Degree of Protection IP 20 IP 20
Terminal Capacity (max) mm2 25 25
Installation category II II
