ELCB Circuit Breakers RCD-C10
Home Products RCCB MCB RCBORCCB Circuit Breakers (F360 Plastic Case)ELCB Circuit Breakers RCD-C10
Product Details

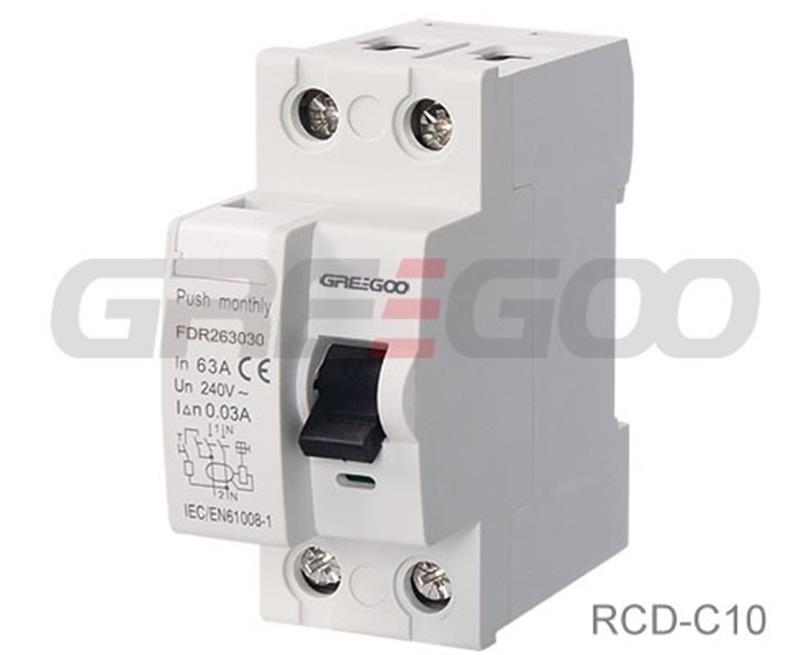

ELCB Circuit Breakers RCD-C10
Model | Rated Current | Pole No. | Type | ||
30mA | 100mA | 300mA | (A) | ||
FDR225030 | FDR225100 | FDR225300 | 25 | 2 | AC |
FDR240030 | FDR240100 | FDR240300 | 40 | 2 | AC |
FDR263030 | FDR263100 | FDR263300 | 63 | 2 | AC |
FDR425030 | FDR425100 | FDR425300 | 25 | 4 | AC |
FDR440030 | FDR440100 | FDR440300 | 40 | 4 | AC |
FDR463030 | FDR463100 | FDR463300 | 63 | 4 | AC |
FDR225030A | FDR225100A | FDR225300A | 25 | 2 | A |
FDR240030A | FDR240100A | FDR240300A | 40 | 2 | A |
FDR263030A | FDR263100A | FDR263300A | 63 | 2 | A |
FDR425030A | FDR425100A | FDR425300A | 25 | 4 | A |
FDR440030A | FDR440100A | FDR440300A | 40 | 4 | A |
FDR463030A | FDR463100A | FDR463300A | 63 | 4 | A |
Model No. | FDR2__RCD-C10 | FDR4__RCD-C10 | |
Casing code | RCD-C10 | RCD-C10 | |
Pole No. | 2 Pole / 1P N | 4 Pole / 3P N | |
Standard Conformity | IEC 61008-1 | IEC 61008-1 | |
Rated Current (In) | A | 25, 40, 63 | 25, 40, 63 |
Sensitivity (I△n) | mA | 30, 100, 300 | 30, 100, 300 |
Rated Voltage (Un) | Vac | 240 | 240 / 415 |
Type | A/AC | A/AC | |
Shortcircuit Withstand Capacity | kA | 6 | 6 |
Residual Making Breaking Capacity | A | 10 In | 10 In |
Rated Insulation Voltage (Ui) | V | 500 | 500 |
Rated Frequency | Hz | 50 | 50 |
Rated Shock Withstand Voltage | V | 4000 | 4000 |
Torque | Nm | 3.0 | 3.0 |
Ambient Temperature | oC | -25 to 40 | -25 to 40 |
Electrical Endurance/Mechanical | operations | 10000 | 10000 |
Mounting | Din Rail (35 * 7.5) mm | Din Rail (35 * 7.5) mm | |
Degree of Protection | IP 20 | IP 20 | |
Terminal Capacity (max) | mm2 | 25 | 25 |
Installation category | II | II |
