EVC8-7.2/12-160/250/400/630
Home Products Vacuum Contactor7.2/12kV Medium Voltage Vacuum ContactorsEVC8-7.2/12-160/250/400/630
Product Details

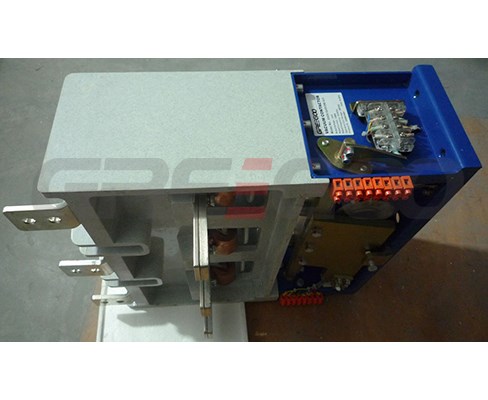

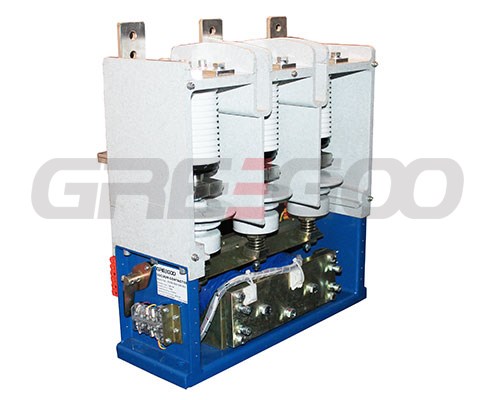

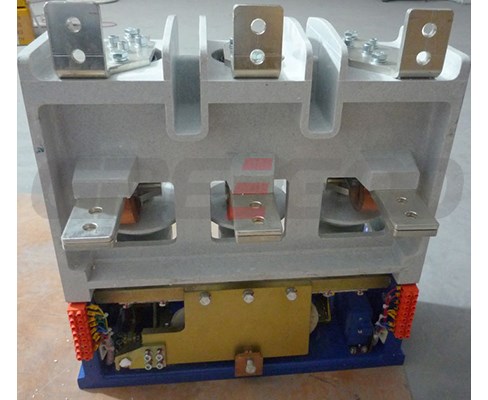

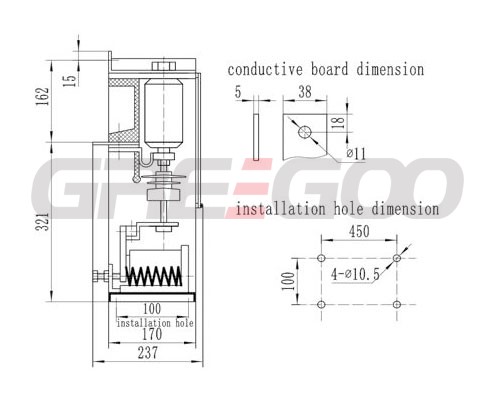

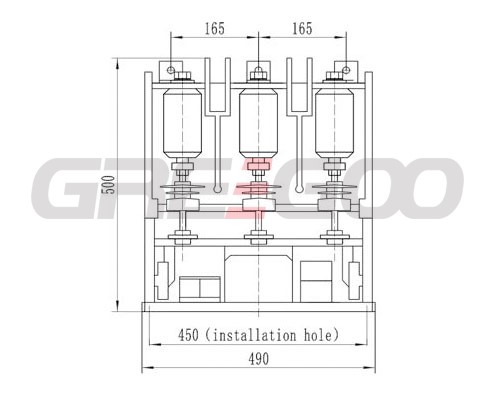

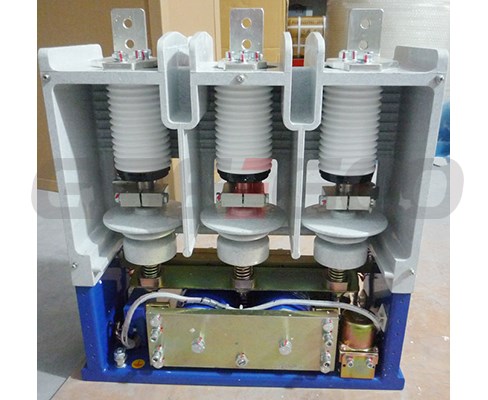

EVC8-7.2/12-160/250/400/630
Name | Unit | Value | |||||||
Main circuit | Rated working voltage (Ue) | kV | 7.2 | 12 | |||||
Rated working current (Ie) | A | 160,250,400,630 | |||||||
Rated frequency (fr) | Hz | 50~60 | |||||||
Rated making capacity | A | 10Ie (AC-4) | |||||||
Rated breaking capacity | A | 8Ie (AC-4) | |||||||
Rated short time withstand current | A | 10Ie | |||||||
Rated peak withstand current | A | 25Ie | |||||||
Rated short circuit duration | s | 4 | |||||||
Power frequency withstand voltage | Between phases, phase to earth | kV | 32 | 42 | |||||
Vacuum breaks | kV | 32 | 42 | ||||||
Lightening impulse withstand voltage | kV | 60 | 75 | ||||||
Control circuit | Rated voltage1 (Us) | V | AC or DC. 110/220 | ||||||
Rated power (Ps) | Electric holding | VA | ≤1000/100 (absorbing/holding) | ||||||
Mechanical holding | VA | ≤900/600 (closing/opening) | |||||||
Auxiliary circuit | Form | 3a+3b | |||||||
Rated value | AC380V/5A, DC380V/1A | ||||||||
Control circuit, auxiliary circuit to earth power frequency withstand voltage | kV | 2 | |||||||
Rated operating frequency | Long-term or mechanical holding type | time/h | 300 | ||||||
Short-term | time/h | 600 | |||||||
Mechanical endurance2 | 10000 times | 30 | |||||||
Electrical endurance | 10000 times | 10 | |||||||
Mechanical characteristics | Closing time | ms | ≤200 | ||||||
Original opening time | ms | ≤160(electric holding) | |||||||
≤60(mechanical holding) | |||||||||
3-phase synchronism | ms | ≤3 | |||||||
Closing tripping | ms | ≤10 | |||||||
Remark: 1.rated control voltage can be made according to customer’s requirements. | |||||||||
2.for mechanical holding type, the interlock mechanism should be changed every 300,000 times. |
