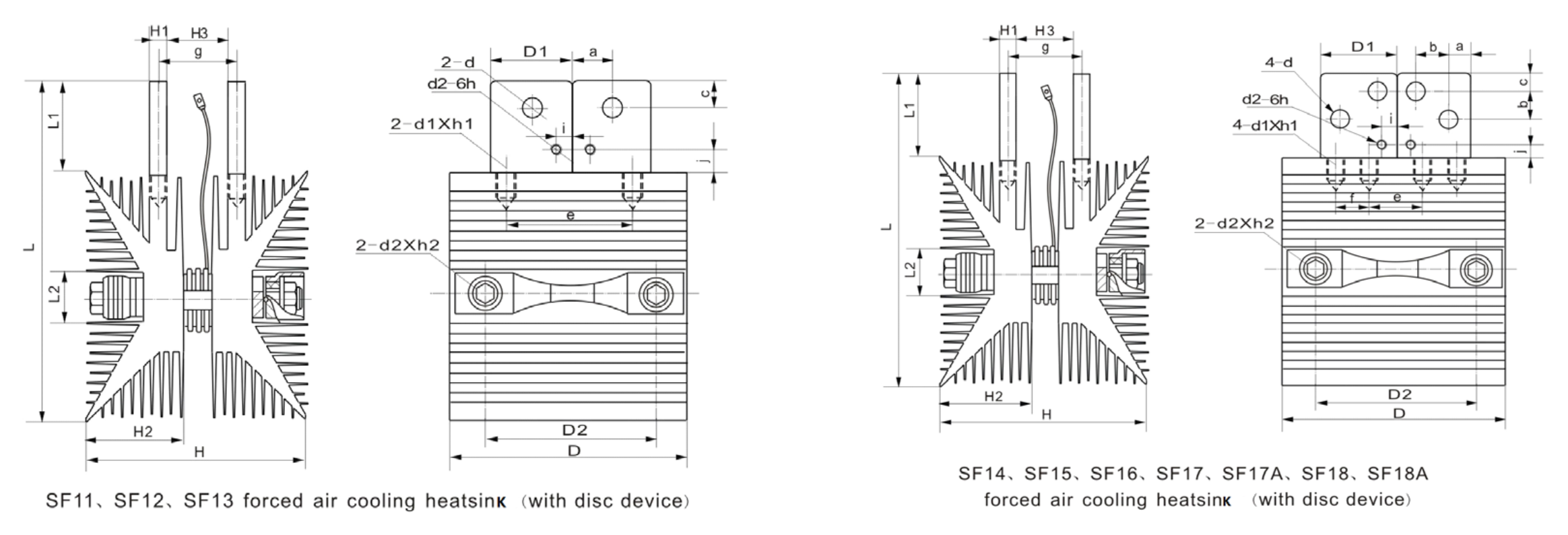

SF12、SF13 Air cooling Heatsink for single device
| Type | SF12 | SF13 |
| Mesa diameter | φ65 φ23 φ27 | φ65 φ27 φ31 |
| Suitable case | φ19~φ40 | φ34~φ40 |
| φ24 φ28 | φ28 φ32 | |
| Mounting force P(kN) | 3.3~20 | 5.5~25 |
| Thermal resistance(℃/W) | 0.090 | 0.071 |
| Applicable range | Suitable for device of 200~800A Wind speed≥4m/s | |

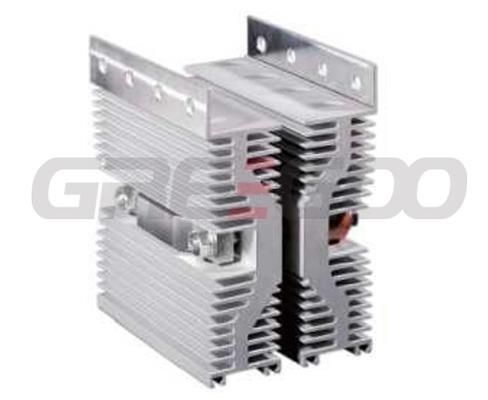

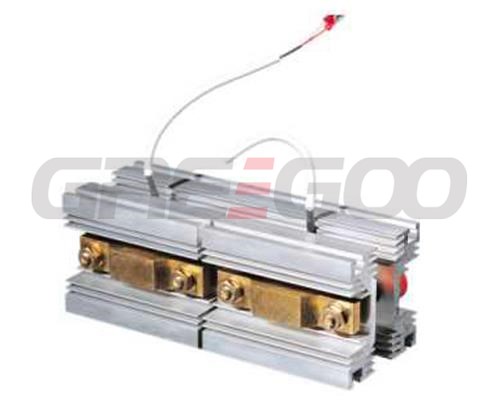

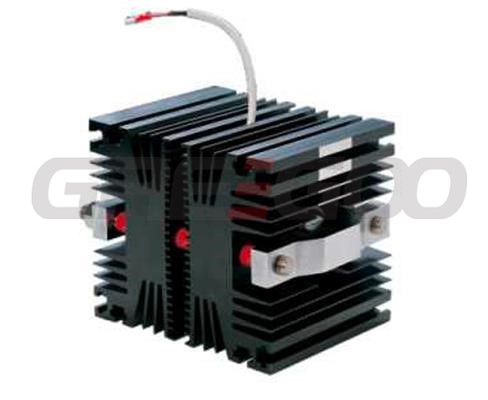

SF14、SF15、SF16、SF17 Air cooling Heatsink for single device
|
Type |
SF14 |
SF15 |
SF16 |
SF17 |
|
Mesa diameter |
φ82 φ31 φ36 |
φ82 φ31 φ36 φ41 |
φ82 |
φ120 |
|
Suitable case |
φ34~φ45 |
φ40~φ47 |
φ45~φ65 |
φ40~φ73 |
|
φ32 φ37 |
φ32 φ37 φ42 |
|
|
|
|
Mounting Force P(kN) |
5.5~30 |
10~34 |
15~40 |
15~47 |
|
Thermal resistance (℃/W) |
0.056 |
0.048 |
0.037 |
0.030 |
|
Applicable range |
Suitable for device of 600~2000A Wind speed≥4m/s for over 1500A Wind speed≥6m/s |
|||
