Product Details
FRED modules
| Part | Vrrm | If(av) | Ifsm | Vf @ If Tj=125℃ | Trr | Rθjc | Inside | Package | |
| Number | Duty=0.5 | t=10ms | Tj=25℃ | Circuit | |||||
| Tc=110℃ | Tj=45℃ | ||||||||

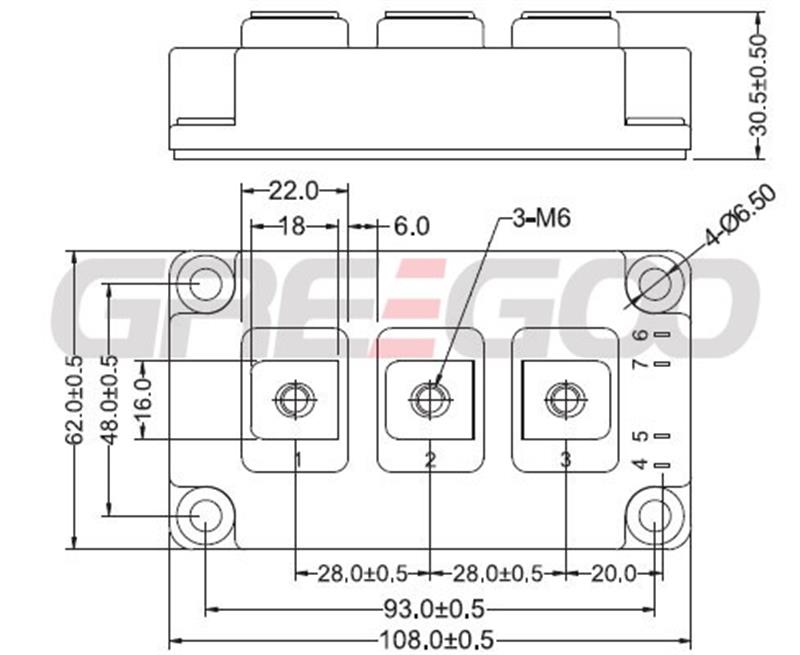

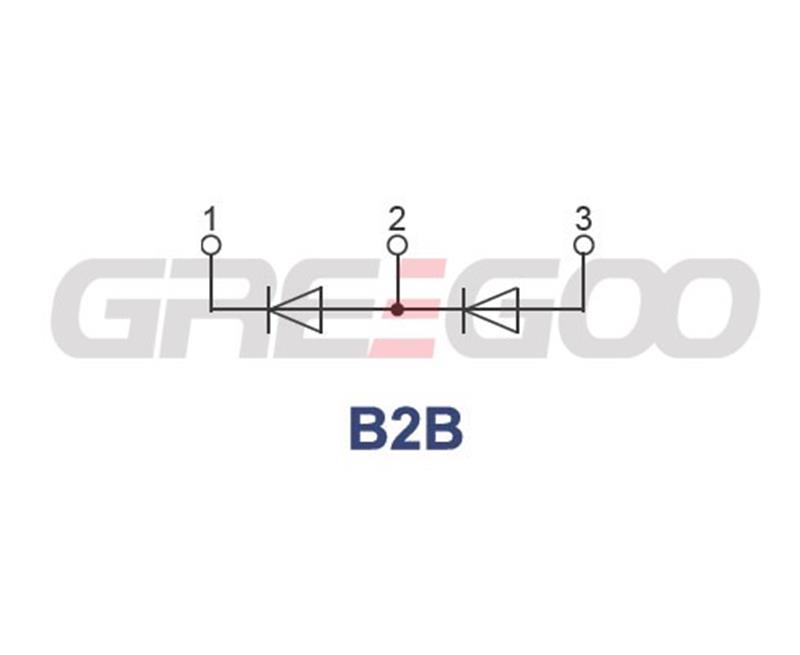

| GF400D120B2B | 1200 | 2×400 | 3200 | 3 | 400 | 180 | 0.11 | B2B | 108X62X30 |
| GF300D170B2B | 1700 | 2×300 | 3000 | 2 | 300 | 500 | 0.14 | B2B | 108X62X30 |

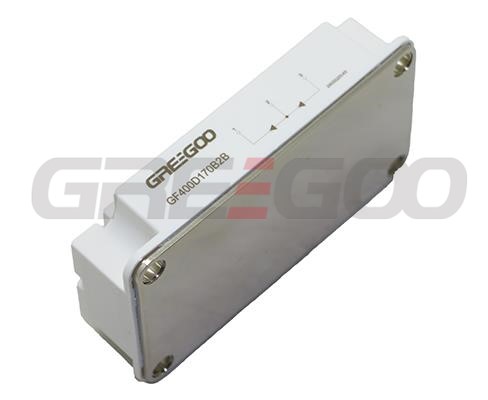

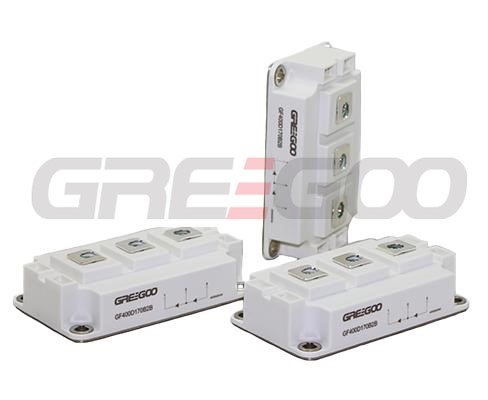

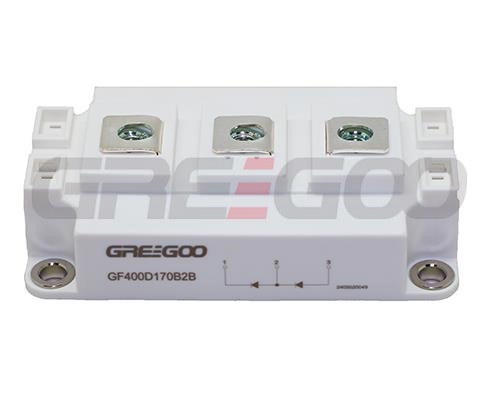

| GF400D170B2B | 1700 | 2×400 | 3200 | 1.95 | 400 | 2000 | 0.1 | B2B | 108X62X30 |

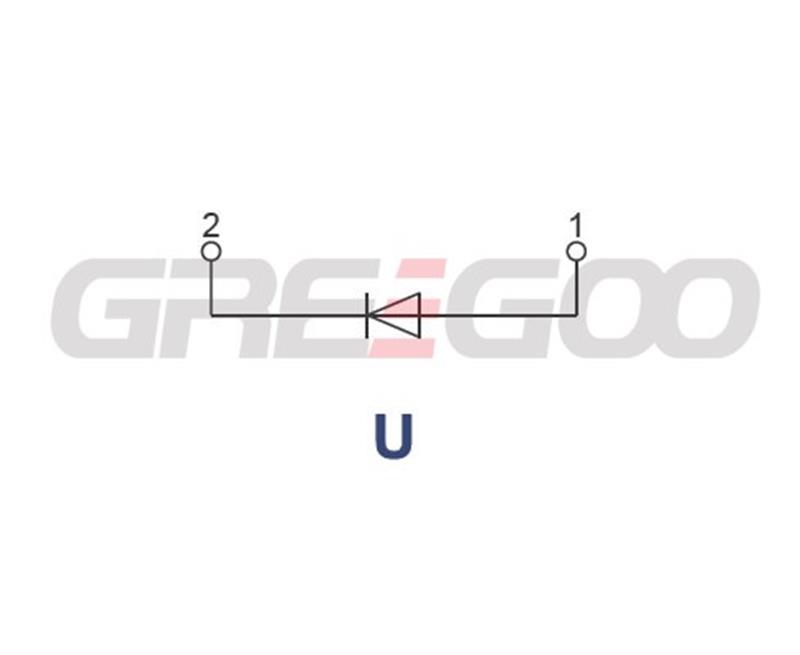

| GF400D120U | 1200 | 400 | 3600 | 2.1 | 400 | 190 | 0.085 | U | 108X62X30 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
