Product Details

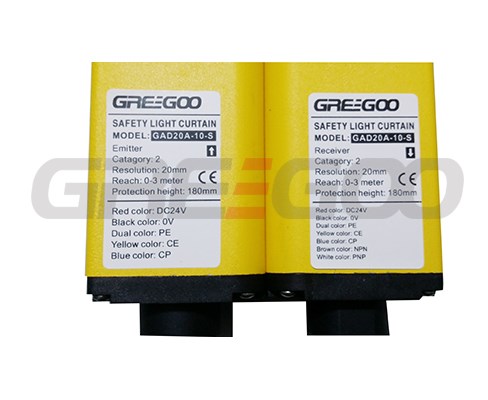

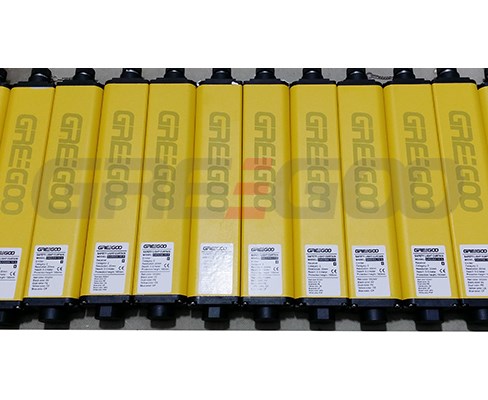

GAD20 Safety Light Curtain

Model	Optical axis distance	Detection distance	Protection height	Optical axis number	Type of output
GAD20△-4□	20mm	△1:0-3m △2:0-6m △3:0-12m	60mm	4	□1=None(Controler output) □2=S(NPN/PNP output)
GAD20△-6□	20mm		100mm	6
GAD20△-8□	20mm		140mm	8
GAD20△-10□	20mm		180mm	10
GAD20△-12□	20mm		220mm	12
GAD20△-14□	20mm		260mm	14
GAD20△-16□	20mm		300mm	16
GAD20△-18□	20mm		340mm	18
GAD20△-20△	20mm		380mm	20
GAD20△-22□	20mm		420mm	22
GAD20△-24□	20mm		460mm	24
GAD20△-26□	20mm		500mm	26
GAD20△-28□	20mm		540mm	28
GAD20△-30□	20mm		580mm	30
GAD20△-32□	20mm		620mm	32
GAD20△-34□	20mm		660mm	34
GAD20△-36□	20mm		700mm	36
GAD20△-38□	20mm		740mm	38
GAD20△-40□	20mm		780mm	40
GAD20△-42□	20mm		820mm	42
GAD20△-44□	20mm		860mm	44
GAD20△-46□	20mm		900mm	46
GAD20△-48□	20mm		940mm	48
GAD20△-50□	20mm		980mm	50
GAD20△-52□	20mm		1020mm	52
GAD20△-54□	20mm		1060mm	54
GAD20△-56□	20mm		1100mm	56
GAD20△-58□	20mm		1140mm	58
GAD20△-60□	20mm		1180mm	60
GAD20△-62□	20mm		1220mm	62
GAD20△-64□	20mm		1260mm	64
GAD20△-66□	20mm		1300mm	66
GAD20△-68□	20mm		1340mm	68
GAD20△-70□	20mm		1380mm	70
GAD20△-72□	20mm		1420mm	72
