LMZ(J)1-60 0.5KV Current Transformer
Home Products Low Voltage Current TransformerCast resin current transformerLMZ(J)1-60 0.5KV Current Transformer
Product Details

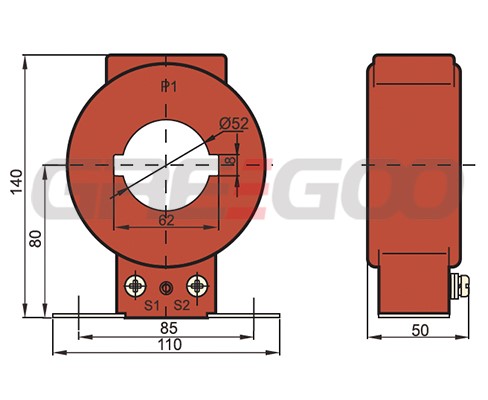

LMZ(J)1-60 0.5KV Current Transformer
Model | Ratio A | Burden VA | ||||
Class 0.5 | Class 0.5s | Class 0.2 | Class 0.2s | Cross core turn number | ||
LMZ(J)1-60 0.5KV | 400/5 | 5 | 5 | 5 | 5 | 1 |
500/5 | 5 | 5 | 5 | 5 | 1 | |
600/5 | 5 | 5 | 5 | 5 | 1 | |
800/5 | 10 | 10 | 10 | 10 | 1 | |
1000/5 | 10 | 10 | 10 | 10 | 1 | |
1200/5 | 10 | 10 | 10 | 10 | 1 | |
1500/5 | 10 | 10 | 10 | 10 | 1 |
