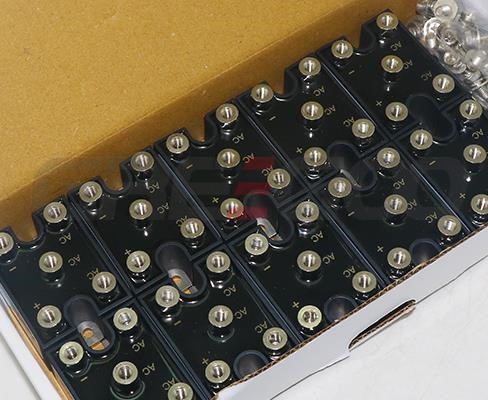

M50 Diode Bridge series

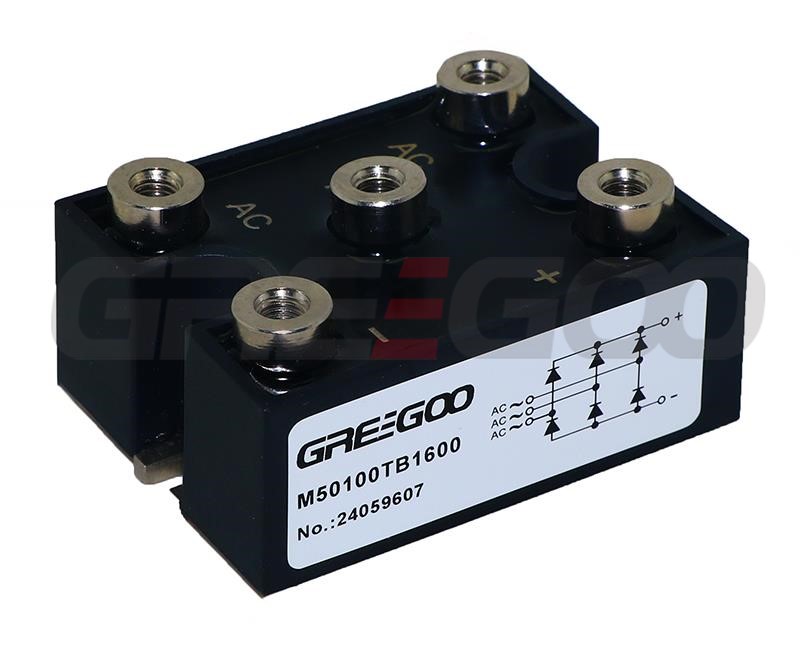

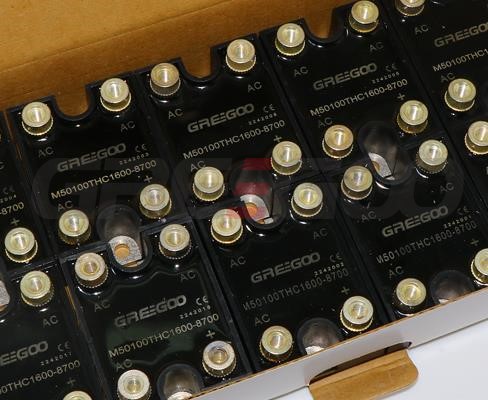

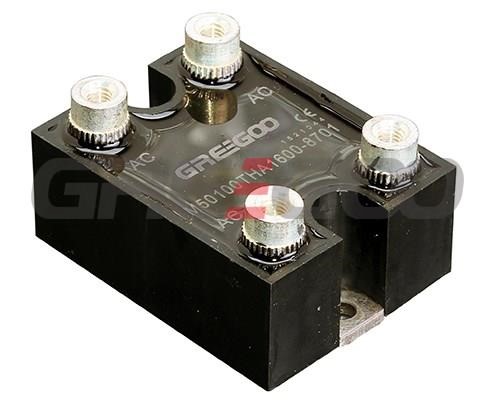

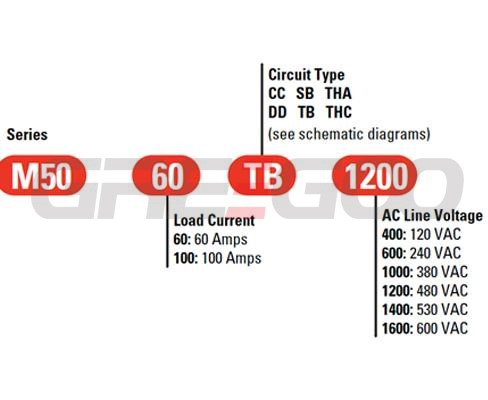

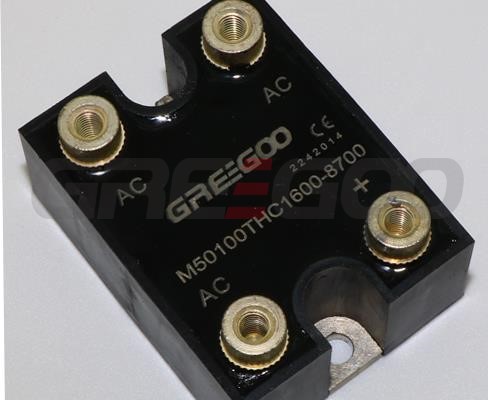

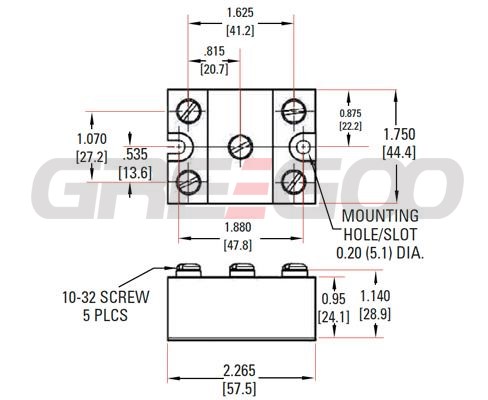

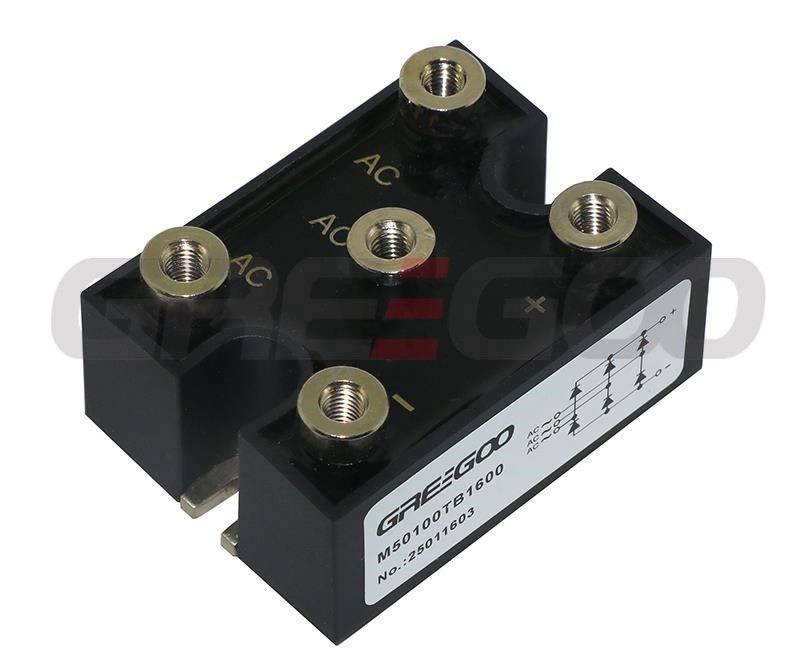

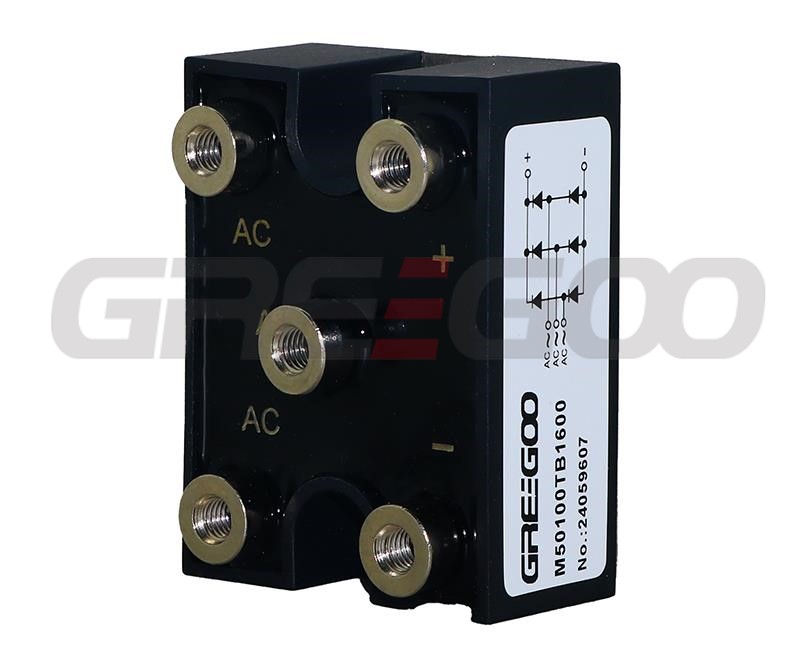

M50 Diode Series

High Surge Current Rectifier Circuits

5 Different Circuits to Choose from

Up to 1600 Volt Blocking Standard



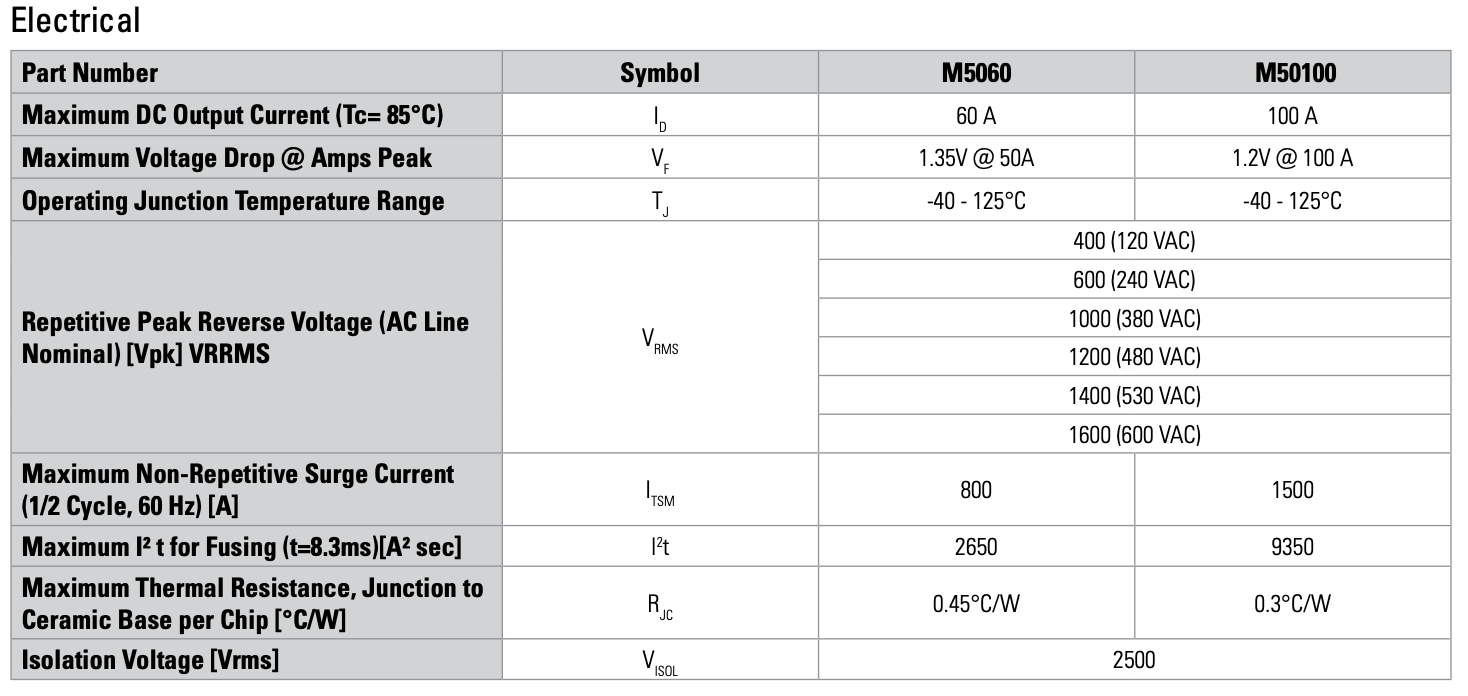

Description

Symbol

M5060

M50100

Maximum DC Output Current(Tc=85°℃)

ID

60A

100A

Maximum Voltage Drop@Amps Peak

VF

1.35V@50A

1.2V@100 A

Operating Junction Temperature Range

TJ

-40-125℃

-40-125℃

Maximum Non-Repetitive Surge Current(1/2 Cycle,60 Hz)[A]

ITSM

800

1500

Maximum I2 t for Fusing(t=8.3ms)[A2 sec]

12T

2650

9350

Maximum Thermal Resistance,Junction to Ceramic Base per Chip[°C/W]

RJC

0.45°℃/W

0.3°℃/W

Insolation Voltage[Vrms]

VISOL

 2500

2500
