| Standard power ratings of 3-phase motors 50/60 Hz in category AC-3 | Rated operational current in AC-3 up to 440V(A) | Rated operational current in AC-1 up to 440V(A) | Rated noncondutive voltage(V) | Instantaneous auxiliary contacts | Reference | ||||||
| 220V | 380V | 415V | 440V | 500V | 660V | NO | NC | ||||
| 230V | 400V | (kW) | (kW) | (kW) | 690V | ||||||
| (kW) | (kW) | (kW) | |||||||||
| Control circuit: a.c. (A) | |||||||||||
| 1.5 | 2.2 | 2.2 | 3 | 3 | 3 | 6 | 20 | 690 | 1 | - | GLC1-K0610 |
| 1.5 | 2.2 | 2.2 | 3 | 3 | 3 | 6 | 20 | 690 | - | 1 | GLC1-K0601 |

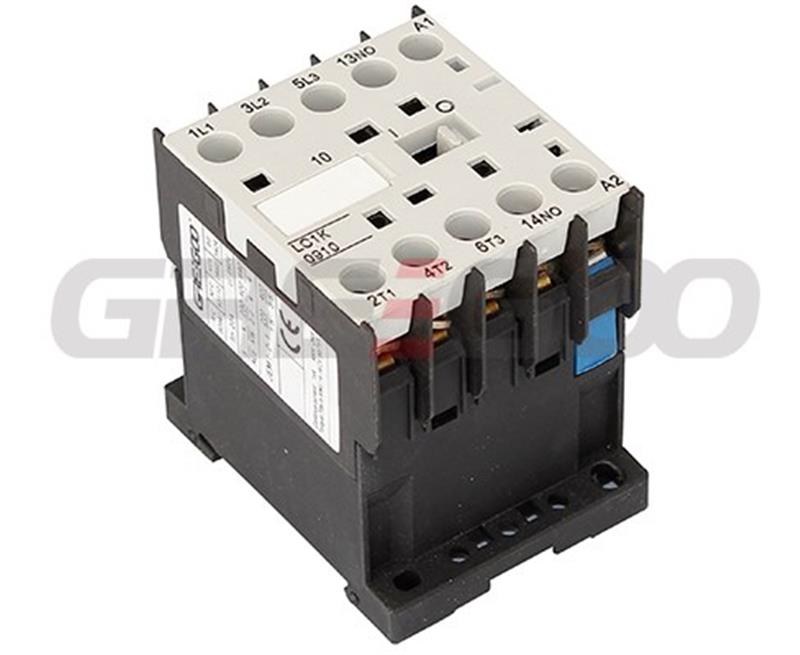

| 2.2 | 4 | 4 | 4 | 4 | 4 | 9 | 20 | 690 | 1 | - | GLC1-K0910 |
| 2.2 | 4 | 4 | 4 | 4 | 4 | 9 | 20 | 690 | - | 1 | GLC1-K0901 |

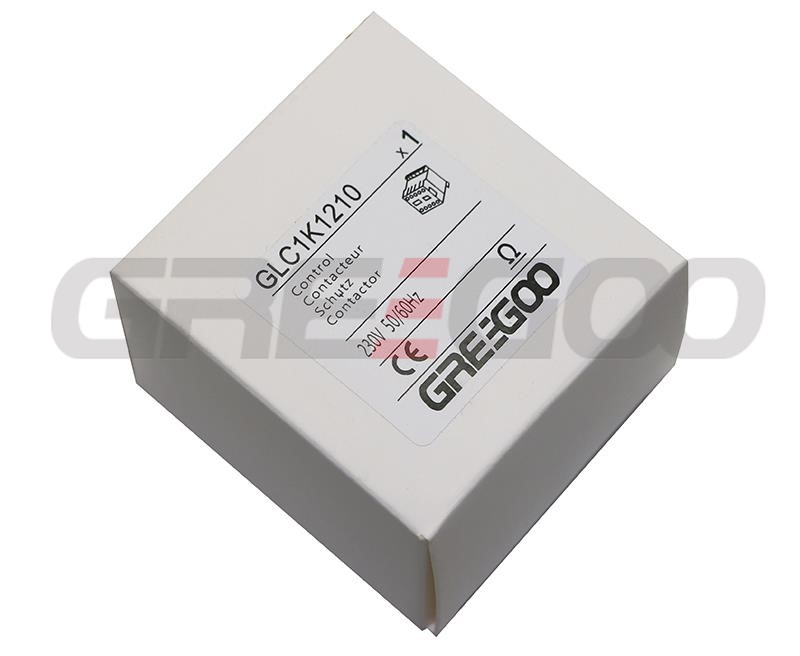

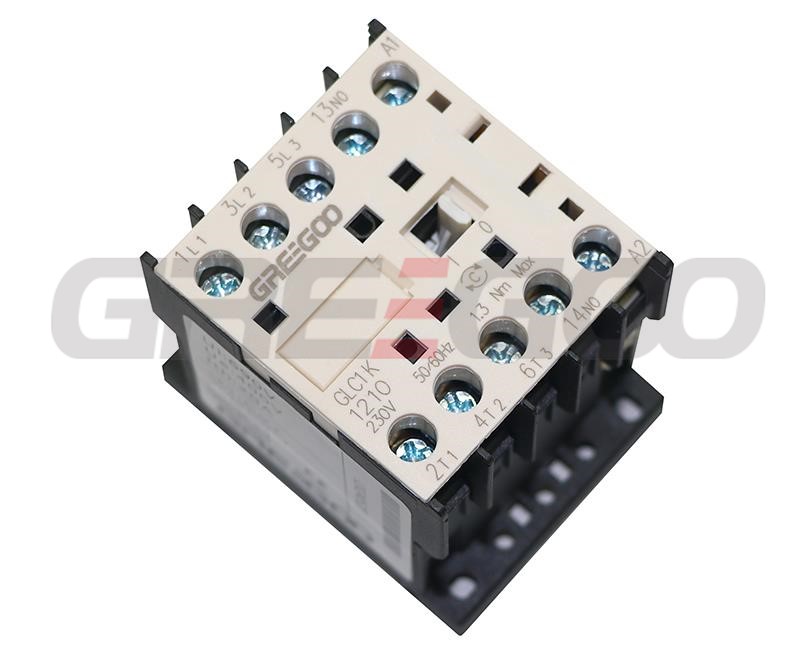

| 3 | 5.5 | 5.5 | 4 | 4 | 4 | 12 | 20 | 690 | 1 | - | GLC1-K1210 |
| 3 | 5.5 | 5.5 | 4 | 4 | 4 | 12 | 20 | 690 | - | 1 | GLC1-K1201 |

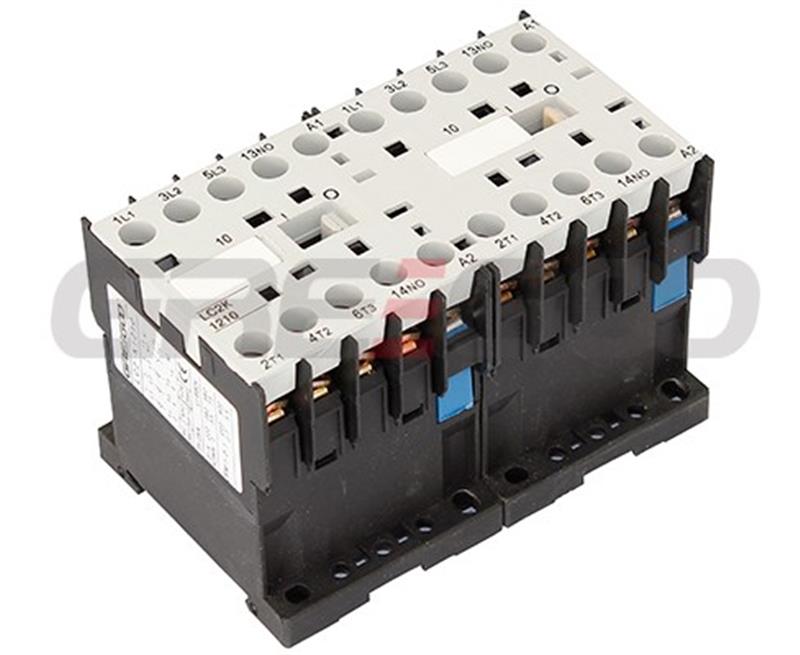

| Reversing contactors for motor control | |||||||||||
| Control circuit: a.c. | |||||||||||
| 1.5 | 2.2 | 2.2 | 3 | 3 | 3 | 6 | 20 | 690 | 1 | - | GLC2-K0610 |
| 1.5 | 2.2 | 2.2 | 3 | 3 | 3 | 6 | 20 | 690 | - | 1 | GLC2-K0601 |
| 2.2 | 4 | 4 | 4 | 4 | 4 | 9 | 20 | 690 | 1 | - | GLC2-K0910 |
| 2.2 | 4 | 4 | 4 | 4 | 4 | 9 | 20 | 690 | - | 1 | GLC2-K0901 |
| 3 | 5.5 | 5.5 | 4 | 4 | 4 | 12 | 20 | 690 | 1 | - | GLC2-K1210 |
| 3 | 5.5 | 5.5 | 4 | 4 | 4 | 12 | 20 | 690 | - | 1 | GLC2-K1201 |

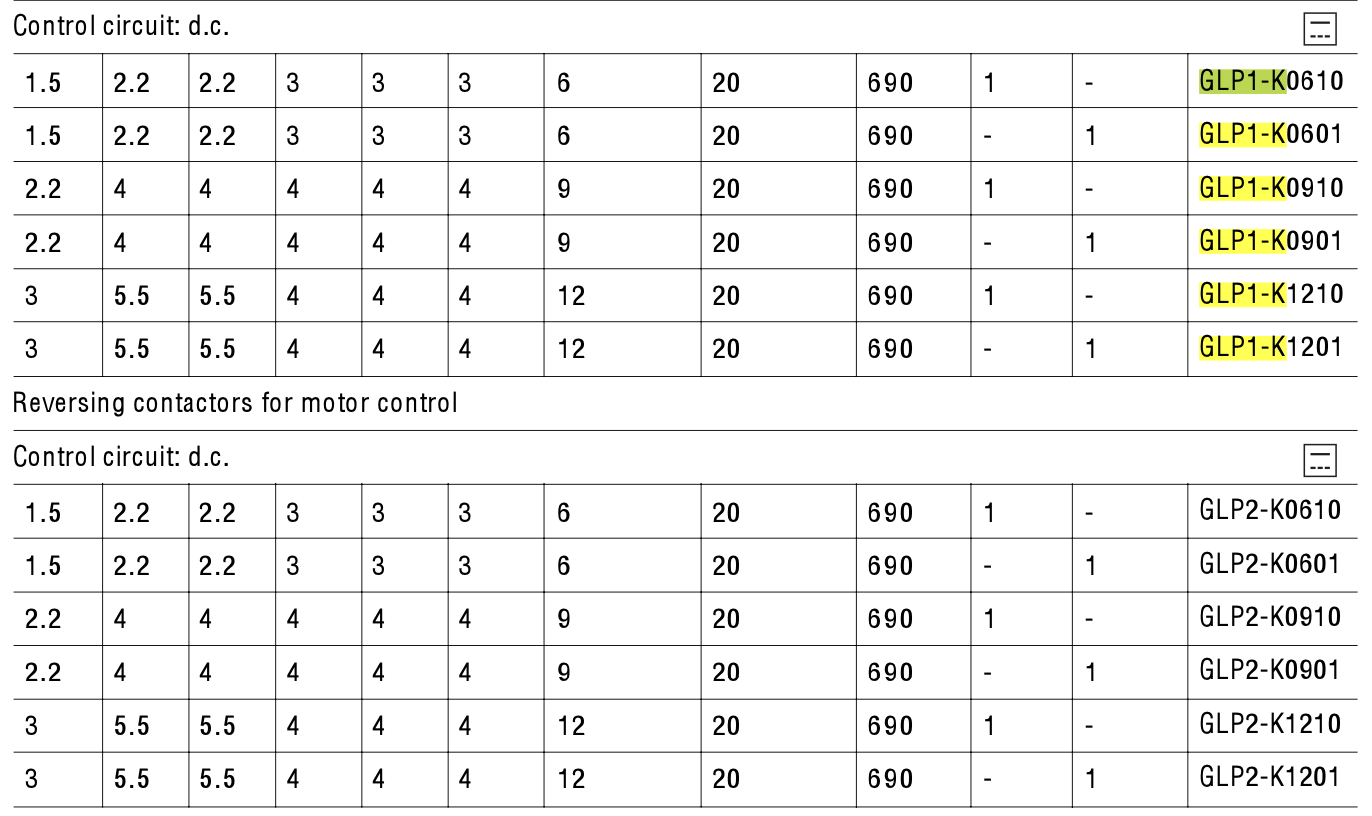

| Control circuit: d.c. | |||||||||||

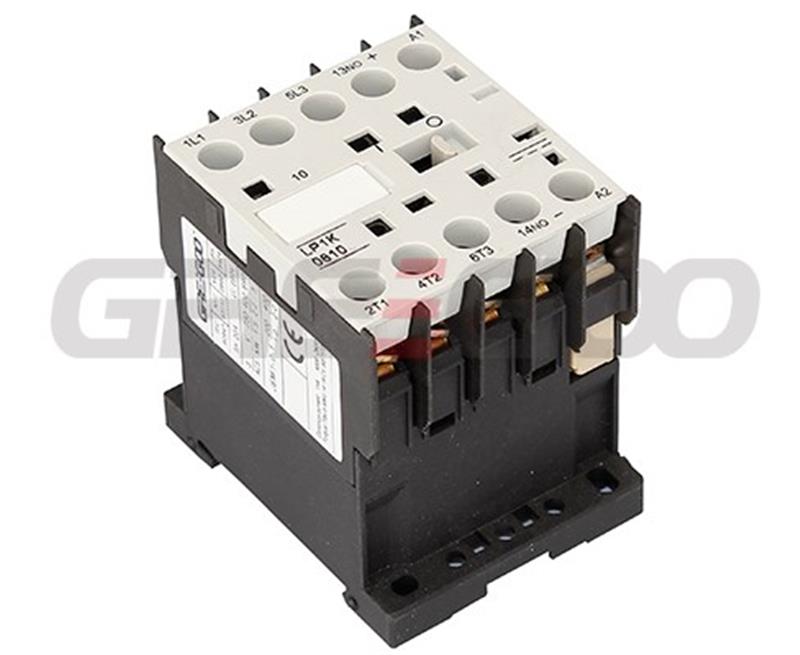

| 1.5 | 2.2 | 2.2 | 3 | 3 | 3 | 6 | 20 | 690 | 1 | - | GLP1-K0610 |
| 1.5 | 2.2 | 2.2 | 3 | 3 | 3 | 6 | 20 | 690 | - | 1 | GLP1-K0601 |

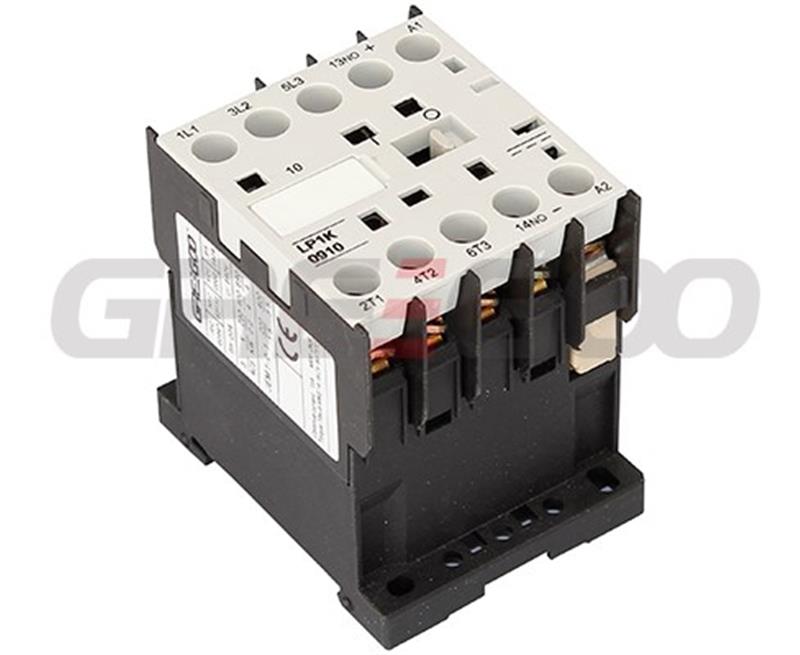

| 2.2 | 4 | 4 | 4 | 4 | 4 | 9 | 20 | 690 | 1 | - | GLP1-K0910 |
| 2.2 | 4 | 4 | 4 | 4 | 4 | 9 | 20 | 690 | - | 1 | GLP1-K0901 |
| 3 | 5.5 | 5.5 | 4 | 4 | 4 | 12 | 20 | 690 | 1 | - | GLP1-K1210 |
| 3 | 5.5 | 5.5 | 4 | 4 | 4 | 12 | 20 | 690 | - | 1 | GLP1-K1201 |
| Reversing contactors for motor control | |||||||||||
| Control circuit: d.c. | |||||||||||
| 1.5 | 2.2 | 2.2 | 3 | 3 | 3 | 6 | 20 | 690 | 1 | - | GLP2-K0610 |
| 1.5 | 2.2 | 2.2 | 3 | 3 | 3 | 6 | 20 | 690 | - | 1 | GLP2-K0601 |
| 2.2 | 4 | 4 | 4 | 4 | 4 | 9 | 20 | 690 | 1 | - | GLP2-K0910 |
| 2.2 | 4 | 4 | 4 | 4 | 4 | 9 | 20 | 690 | - | 1 | GLP2-K0901 |
| 3 | 5.5 | 5.5 | 4 | 4 | 4 | 12 | 20 | 690 | 1 | - | GLP2-K1210 |
| 3 | 5.5 | 5.5 | 4 | 4 | 4 | 12 | 20 | 690 | - | 1 | GLP2-K1201 |
