Specification

NC DC Solid State Relay GZ02B GZ02F

Parameter GZ02F (Normally Closed) GZ02B (Normally Closed)
Control Power None ≤30A: 4-32V/1W
>30A: 12-15V/2W; 18-36V/2W
Drive Method Optical Isolation Built-in Isolated Power Drive
Control Signal 4-32 VDC; 10-20 mA 4-32 VDC; 10-20 mA
Control Indicator LED LED
Maximum Voltage 100, 200, 400 VDC 100, 200, 600, 1200 VDC
Maximum Current 10, 20, 30 A (1mS) 10, 20, 30 ... 180 A (1mS)
On-state Voltage Drop ≤ 2.5 VDC 0.5-4.5 VDC
Off-state Voltage 100, 200, 400 VDC 100, 200, 600, 1200 VDC
Switching Time ≤ 0.2 mS ≤ 0.15 mS
Switching Characteristics Bipolar Transistor - Solid State Switch MOS or IGBT - Solid State Switch
Isolation Voltage ≥1500V ≥1500V
Insulation Voltage ≥ 2000 V ≥ 2000 V
Operating Temperature -25 to 75 ℃ -25 to 75 ℃
Cooling Conditions ≥30A with heatsink, ≥120A with additional fan cooling ≥30A with heatsink, ≥120A with additional fan cooling
Load Current Safety Factor Resistive load: 2.5-3 times, Inductive load: 3-4 times Resistive load: 2.5-3 times, Inductive load: 3-4 times

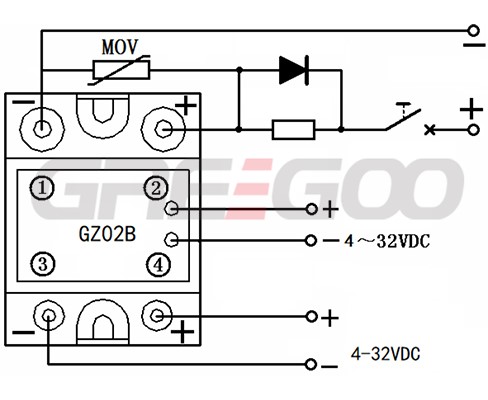

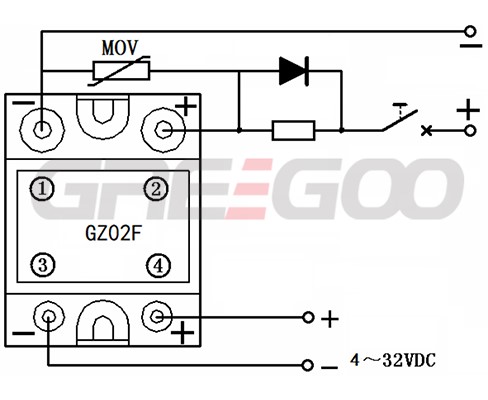

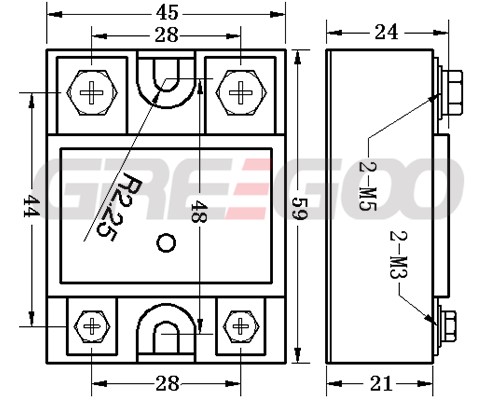

Product Details

  • Optical isolation between control signal and output circuit.
  • Control signal interfaces with PLC and TTL logic signals.
  • LED indicator for working status.
  • Solid-state normally closed output, fast switching speed, no sparks or arcs during on-off.
  • Epoxy resin encapsulation, corrosion-resistant, shock-resistant, stable and reliable switching.
  • The product is mainly used for high-frequency DC-powered load electrical switches. Examples: DC motors, solenoid valves, heaters, and battery charging/discharging switches.
