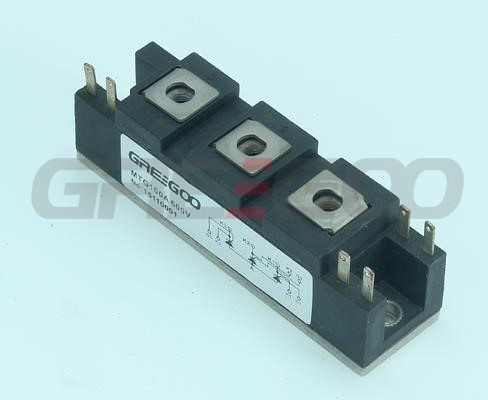

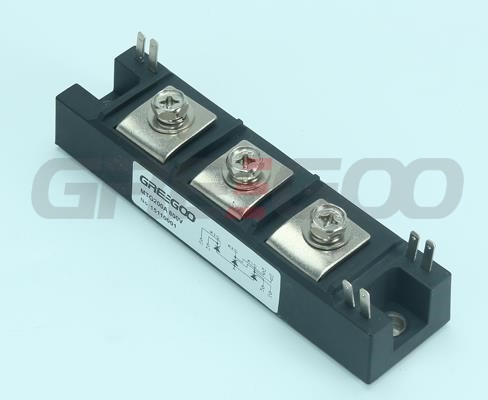

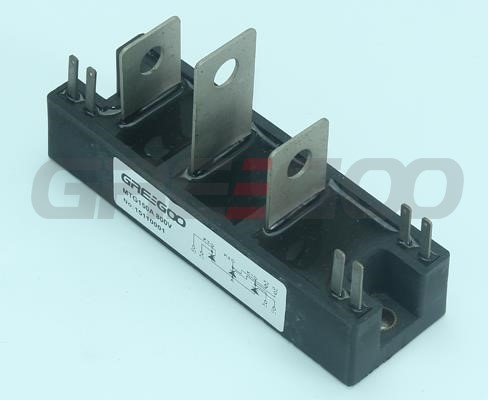

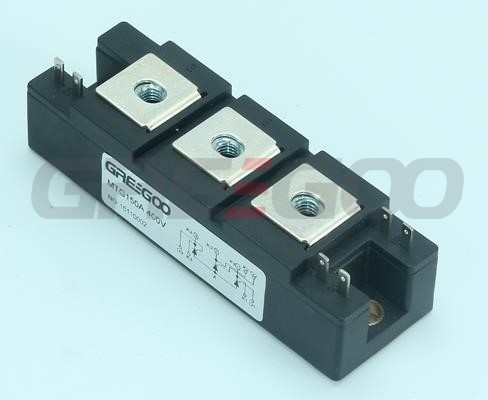

Non-isolated thyristor diode modules
Features
1.Non-isolated. Mounting base as common anode or cathode terminal
2.International standard package
3.Pressure contact technology with increased power cycling capability
4.Max junction temperature up to 140°C
5.High surge current
6.Low forward voltage drop
Typical Application
1.Welding Power Supply
2.Various DC power supplies
3.DC supply for PWM inverter
4.Field supply for DC motors

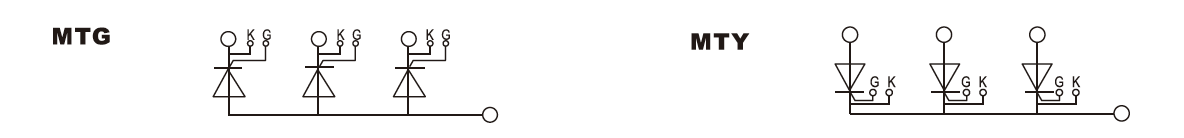

Type | VDRM | IT(AV)@Tc | ITSM | I2t | dv/dt | di/dt | IDRM | IGT | VGT | IH | VTM@ITM | VTO | rT | Rjc | Tjm | ||
VRRM | IRRM | ||||||||||||||||
10ms | 125°C | 25°C | 125°C | ||||||||||||||
V | A | °C | kA | kA2s | V/μs | A/μs | mA | mA | V | mA | V | A | V | mΩ | °C/W | °C | |
MTx50 | 800-1800 | 50 | 90 | 1.2 | 7.2 | 800 | 100 | 8 | 100 | 2.5 | 100 | 1.7 | 150 | 0.8 | 5.41 | 0.48 | 125 |
MTx100 | 800-1800 | 100 | 90 | 2.5 | 31 | 800 | 100 | 12 | 100 | 2.5 | 100 | 1.67 | 300 | 0.8 | 2.45 | 0.25 | 125 |
MTx150 | 800-1800 | 150 | 90 | 3.9 | 76 | 800 | 100 | 12 | 100 | 2.5 | 100 | 1.67 | 450 | 0.8 | 1.74 | 0.16 | 125 |
MTx200 | 800-1800 | 200 | 90 | 5.2 | 135 | 800 | 100 | 20 | 150 | 2.5 | 100 | 1.62 | 600 | 0.8 | 1.15 | 0.13 | 125 |
MTx250 | 800-1800 | 250 | 90 | 6.7 | 224 | 800 | 100 | 20 | 150 | 2.5 | 100 | 1.65 | 750 | 0.8 | 1.02 | 0.1 | 125 |
MTx300 | 800-1800 | 300 | 90 | 8.3 | 344 | 800 | 100 | 25 | 150 | 2.5 | 100 | 1.58 | 900 | 0.8 | 0.72 | 0.08 | 125 |

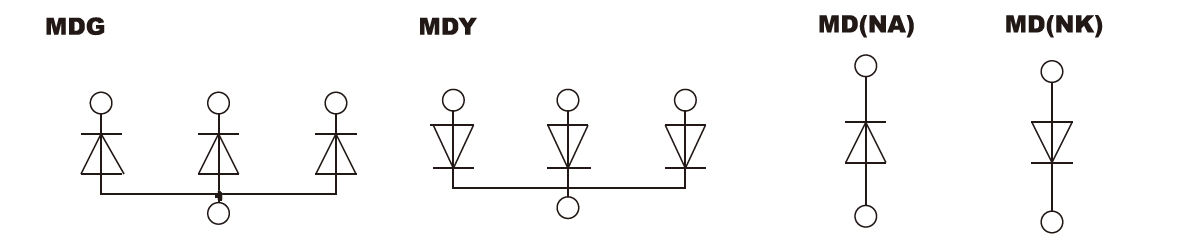

Type | VRRM | IF(AV)@Tc | IFSM | I2t | IRRM | VFM@IFM | VFO | rF | Rth(j-c) | Tjm | ||
10ms | 15°C | 25°C | 150°C | |||||||||
V | A | °C | kA | kA2s | mA | V | A | V | mΩ | °C/W | °C | |
MDx50 | 800-1800 | 50 | 100 | 1.4 | 10 | 8 | 1.6 | 150 | 0.8 | 4.78 | 0.7 | 150 |
MDx100 | 800-1800 | 100 | 100 | 2.8 | 39 | 12 | 1.57 | 300 | 0.8 | 2.13 | 0.38 | 150 |
MDx150 | 800-1800 | 150 | 100 | 4.6 | 106 | 12 | 1.57 | 450 | 0.8 | 1.53 | 0.24 | 150 |
MDx200 | 800-1800 | 200 | 100 | 6.2 | 192 | 20 | 1.5 | 600 | 0.8 | 0.96 | 0.2 | 150 |
MDx250 | 800-1800 | 250 | 100 | 7.8 | 304 | 20 | 1.53 | 750 | 0.8 | 0.87 | 0.15 | 150 |
MDx300 | 800-1800 | 300 | 100 | 10 | 500 | 25 | 1.5 | 900 | 0.8 | 0.64 | 0.13 | 150 |
Type | VDRM | IT(AV))@Tc | ITSM | I2t | dv/dt | di/dt | IDRM | IGT | VGT | IH | VTM@ITM | VTO | rT | Rth(j-c) | Tjm | ||
VRRM | IRRM | ||||||||||||||||
10ms | 125°C | 25°C | 125°C | ||||||||||||||
V | A | °C | kA | kA2s | V/μs | A/μs | mA | mA | V | mA | V | A | V | mΩ | °C/W | °C | |
MFx50 | 800-1800 | 50 | 90 | 1.2 | 7.2 | 800 | 100 | 8 | 100 | 2.5 | 100 | 1.7 | 150 | 0.8 | 5.41 | 0.48 | 125 |
MFx100 | 800-1800 | 100 | 90 | 2.5 | 31 | 800 | 100 | 12 | 100 | 2.5 | 100 | 1.67 | 300 | 0.8 | 2.45 | 0.25 | 125 |
MFx150 | 800-1800 | 150 | 90 | 3.9 | 76 | 800 | 100 | 12 | 100 | 2.5 | 10 | 1.67 | 450 | 0.8 | 1.74 | 0.16 | 125 |
MFx200 | 800-1800 | 200 | 90 | 5.2 | 135 | 800 | 100 | 20 | 150 | 2.5 | 100 | 1.62 | 600 | 0.8 | 1.15 | 0.13 | 125 |
MFx250 | 800-1800 | 250 | 90 | 6.7 | 224 | 800 | 100 | 20 | 150 | 2.5 | 100 | 1.65 | 750 | 0.8 | 1.02 | 0.1 | 125 |
MFx300 | 800-1800 | 300 | 90 | 8.3 | 344 | 800 | 100 | 25 | 150 | 2.5 | 100 | 1.58 | 900 | 0.8 | 0.72 | 0.08 | 125 |
Need more information?
Contact us to request pricing, availability and customization options.
