Product Details

Normal close AC switching Solid State Relays (NC AC SSR relays)

NC AC SSR relays
Optical isolation between input and output circuits.
Control signal and TTL logic interface.
The normally closed contact is a semiconductor switching device.
No spark, no sound and no loss when the switch is switched frequently.
Epoxy resin encapsulation, anti-seismic and anti-corrosion, reliable work.
The products are mainly used for computer and digital program control interface and industrial automation control. Such as industrial electric furnace, electric oven, motor, power switch and other equipment.

Model		GT13F	GT14F
Input	Control voltage	3-9VDC、12-24VDC、24-32VDC	120-240VAC
	Control current	≤45 mA
	Start current	≥6mA
	Turn off voltage	≤1.5 VDC
	On off time	≤10 mS
Output	Load voltage	24-240VAC、40-440VAC
	Rated current	10、20、30、40、60-120A
	On state voltage drop	≤2.5V
	Off state voltage	≥400V、≥800V
Electrical Parameters	Isolation voltage	≥2500 V
	Insulation voltage	≥2500 V
	Insulation resistance	≥ 100 MΩ
	Working temperature	-25~75℃
	Frequency	50/60 HZ
	Heatsink	≥20A heatsink is required, ≥40A heatsink and axial fan are required.
	Safety tips	Resistance load 2-3 times, Inductive load 3-4 times.

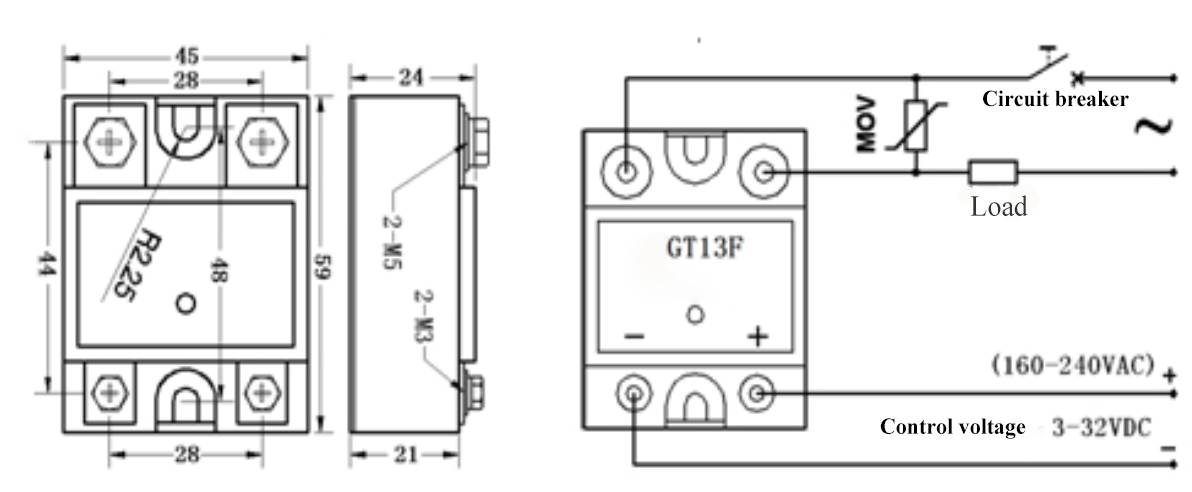

	Dimensions	59x45x245x24mm3(J-7)

1NO+1NC AC load solid state relays

Optical isolation between input and output circuits.

Control signal and TTL logic interface or 220VAC control.
Both normally open and normally closed points are thyristor non-contact outputs.
GT13KB-B can directly replace 220V voltage electromagnetic relay.
Epoxy resin encapsulation, anti-seismic and anti-corrosion, reliable work.
Products are mainly used for computer and digital program control interface and industrial automation control. Such as industrial electric furnace, electric oven, motor, power switch and other equipment.

Model		GT13KB-A		GT13KB-B
Input	Control voltage	3~32 VDC		160~240VAC
	Control current	≤25 mA		≤30 mA
	Turn on current	≥6mA		≥10 mA
	Turn off voltage	≤1.5 VDC		≤50 VAC
	On/off time	≤10mS		≤50 mS
output	Load voltage	24~240VAC、40~440VAC
	Rated current	10、20、30、40A	60-180A			200-350A
	On state voltage drop	≤1.8 V
	Off state voltage	≥400V、≥800V
Electrical Parameters	Isolation voltage	≥2000 V
	Insulation voltage	≥2000 V
	Insulation resistance	≥ 100 MΩ
	Temperature	-25~75℃
	Frequency	50/60 HZ
	Heatsink	≥20A heatsink is required，≥40A heatsink and axial fan are required
	Safety tips	Resistive load2-3 times，Iductive load3-4 times

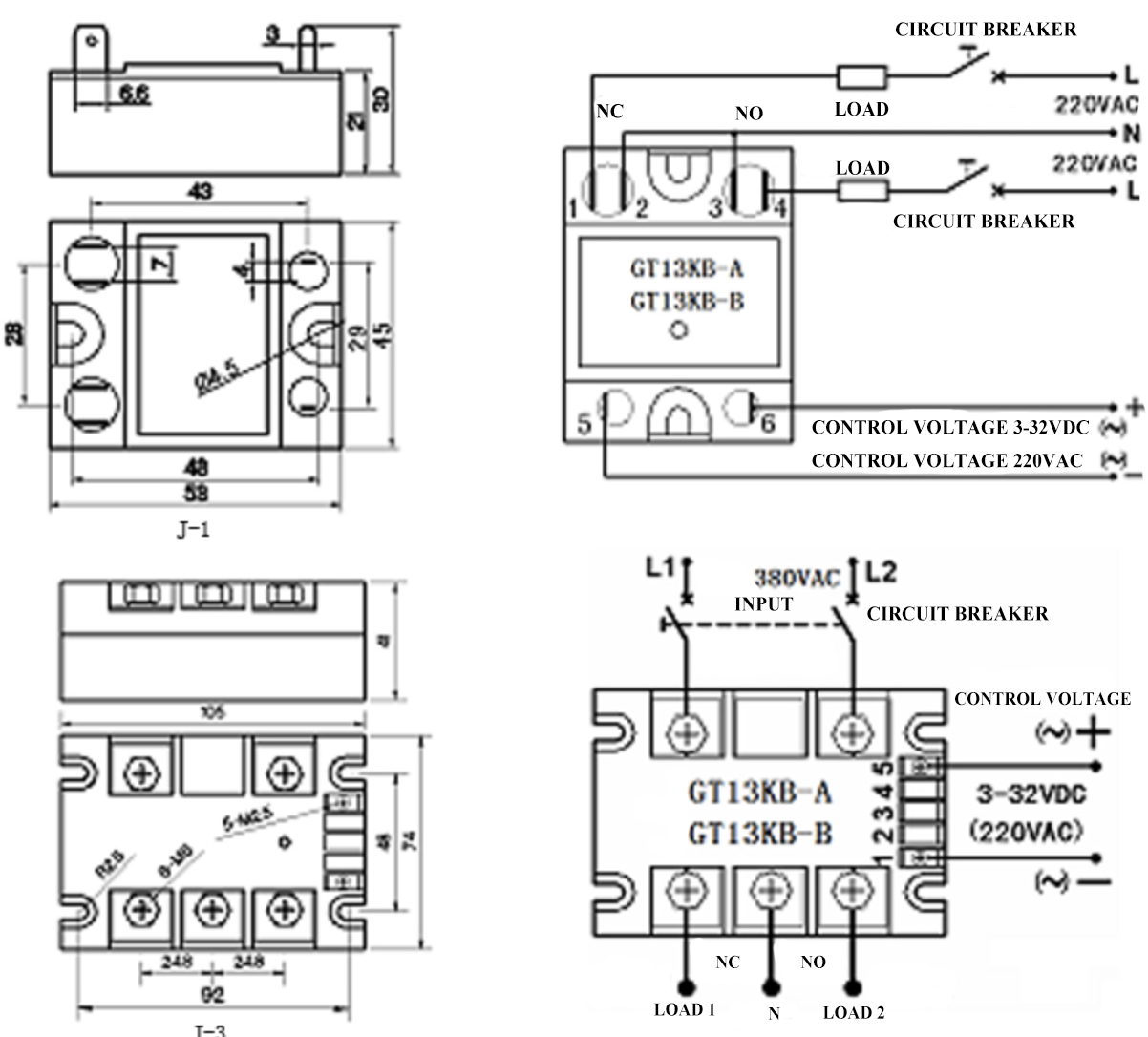

	Dimensions	58x45x21mm3(J-1)	105x74x41mm3(J-3)		120x84x57mm3(J-5)
