Phase Control Thyristor ST300/330/350S
Home Products Stud Screw Fit ThyristorVishay Stud ThyristorPhase Control Thyristor ST300/330/350S
Product Details
Phase Control Thyristor ST300/330/350S
| Type | IT(AV) | VTM/ITM | ITRMS | VRRM | IRRM | IGT | IH | IL | dv/dt | Rjc | M2 | Wt | Out | |
| THS55℃ | 25℃ | |||||||||||||
| A | V | A | A | V | mA | mA | mA | mA | mA | ℃/W | N/m | kg | ||

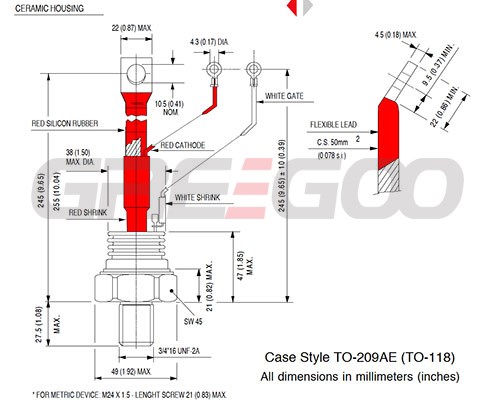

| ST300S | 300 | 1.5 | 900 | 480 | 200-2400 | ≤40 | 50-200 | ≤600 | ≤1000 | ≥800 | ≤0.10 | ≤30 | 0.58 | TO-118 |
| ST330S | 330 | 1.55 | 990 | 530 | 200-2400 | ≤40 | 50-200 | ≤600 | ≤1000 | ≥800 | ≤0.07 | ≤30 | 0.58 | |
| ST350S | 350 | 1.6 | 1050 | 560 | 200-2400 | ≤40 | 50-200 | ≤600 | ≤1000 | ≥800 | ≤0.06 | ≤30 | 0.58 | |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
