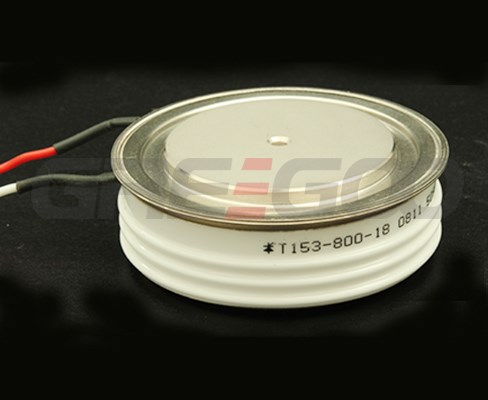

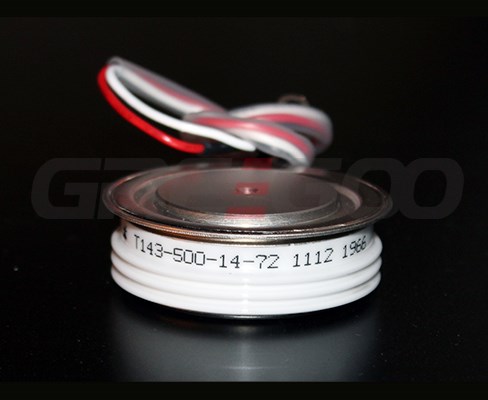

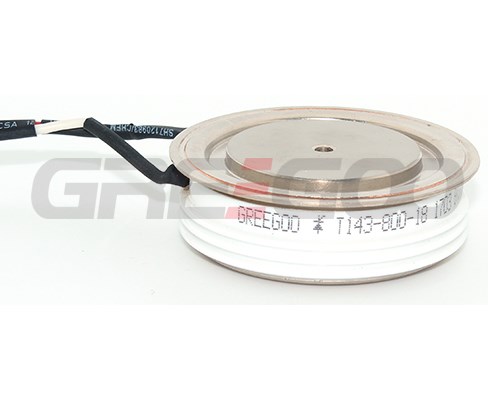

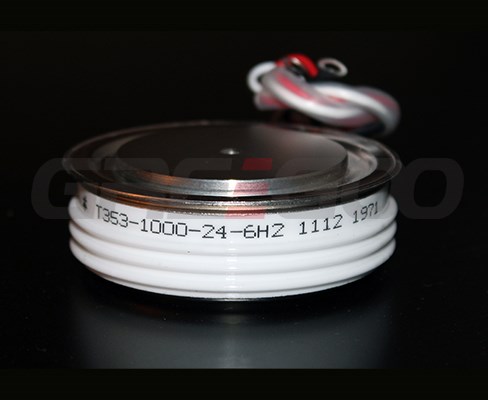

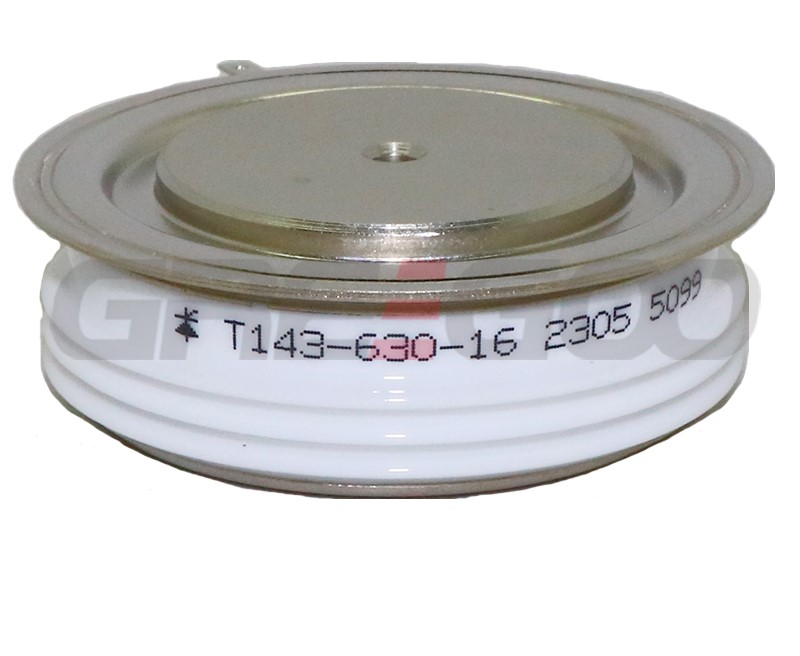

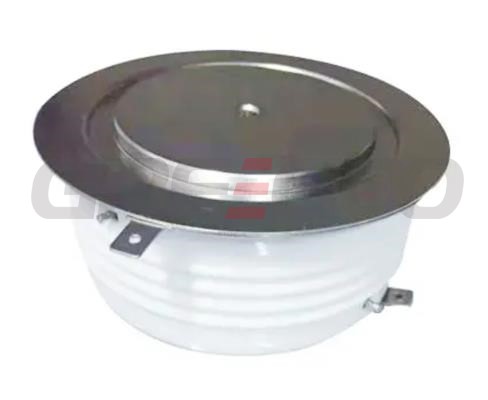

Phase control thyristors PCTs (Russian version)

Features
- Hermetic metal cases with ceramic insulators
- Capsule packages for double sided cooling
- Amplifying gates
- Optimized for low on-state losses
- Suitable for series and parallel connections

Typical applications
- DC motor control
- Controlled rectifiers
- AC controllers
- Soft starters for AC motors
- High voltage SM-drives up to 30 MWs

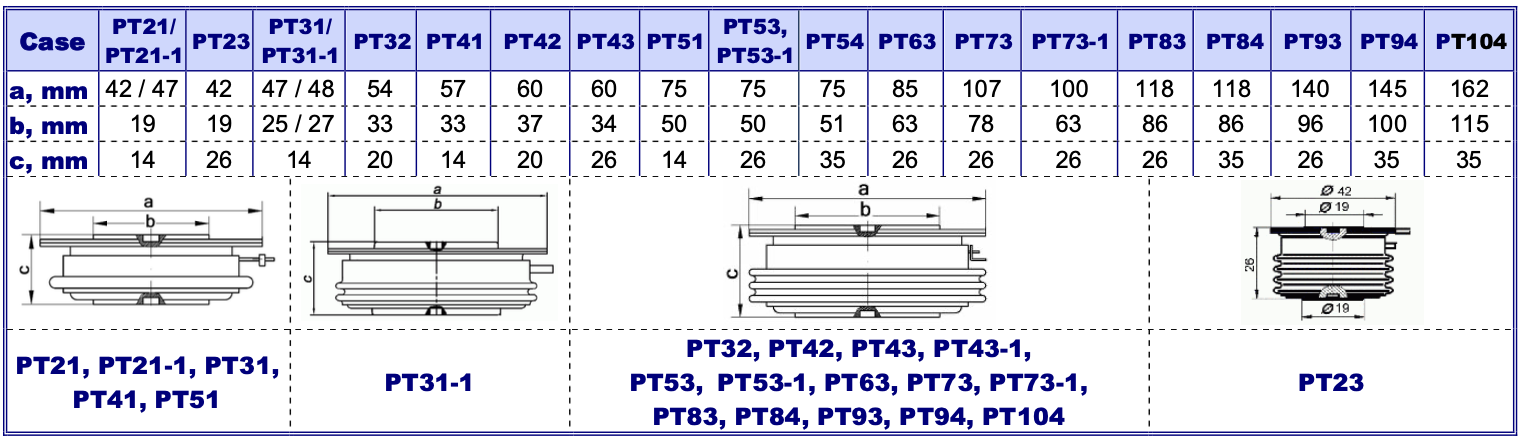

Model selection table 1

Type VDRM
VRRM 		IT(AV) ITSM V T(TO) r T (diT/
dt)cr 		(dvD/dt) cr t q(typ) Rth(j-c) TVJM Fm Case
TC=
70oC 		10ms

TVJM

TVJM TVJM TVJM TVJM
V A kA V mΩ A/μs V/μs μs oC/W oC kN
Upto 800V
T123-500 400-800 710 6.0 0.84 0.43 200 1000,1600 100 0.07 150 6 PT21 PT21-1
T133-800 400-800 1270 12 0.90 0.287 200 1000,1600 100 0.035 150 10 PT31
T143-1250 400-800 1750 21 0.79 0.170 200 1000,1600 100 0.030 150 15 PT41
T153-2000 400-800 2883 36 0.83 0.100 200 1000,1600 160 0.018 150 24 PT51
T163-2500 400-800 3191 50 0.82 0.070 200 1000,1600 100 0.016 140 33 PT63
T173-5000 400-800 5595 66 0.85 0.042 200 1000,1600 100 0.010 150 45 PT73
Upto 1800V
T123-320 400-1600 408 5.0 1.04 0.64 200 1000,1600 160 0.08 125 6 PT21 PT21-1
T123-400 800-1200 490 5.5 0.83 0.58 200 1000,1600 100 0.08 130 6 PT21 PT21-1
T233-500 1200-1800 730 9.0 1.08 0.44 200 1000,1600 160 0.04 125 10 PT32
T333-500 1200-1800 804 9.0 1.08 0.44 200 1000,1600 160 0.035 125 10 PT31-1
T133-630 800-1200 915 12 0.85 0.35 200 1000,1600 100 0.04 130 10 PT31
T143-800 1200-1800 969 14 0.88 0.374 200 1000,1600 160 0.032 125 15 PT42
T143-1000 800-1200 1239 19 0.85 0.250 200 1000,1600 100 0.030 130 15 PT41
T253-1250 1200-1800 1587 28 0.95 0.200 200 1000,1600 160 0.020 125 24 PT53
T153-1600 800-1200 2316 30 1.01 0.069 200 1000,1600 160 0.018 130 24 PT51
T163-1600 1200-1800 2023 35 0.95 0.150 200 1000,1600 160 0.016 125 33 PT63
T163-2000 800-1200 2694 40 0.96 0.065 200 1000,1600 120 0.016 130 33 PT63
T173-2500 1200-1600 3224 52 0.95 0.095 200 1000,1600 160 0.010 125 45 PT73
T173-3200 1000-1200 4115 60 0.92 0.053 200 1000,1600 160 0.010 130 45 PT73
T173-4000 800-1000 4778 62 0.84 0.053 200 1000,1600 100 0.010 140 45 PT73
T183-4000 800-1600 4622 70 0.86 0.055 200 1600,2000 160 0.008 125 70 PT83
T293-5000 800-1800 6906 100 0.86 0.043 200 1000,1600 160 0.005 125 80 PT93


Model selection table 2

Type VDRM Irr IT(AV) ITSM VTM/ITM VGT IGT dv/dt di/dt Tjmax Rth(j-c) Weight
(VRRM) (IDRM) (Tc ℃) 10ms
V mA A kA V/A V mA V/mks A/mks ℃/W ℃/W kg
T123-200 400-6500 150 200(95) 4 1.90/628 2.5 ≤200 ≥500 30 125 0.08 0.07
T123-250 400-6500 150 250(92) 4.5 1.75/785 2.5 ≤200 ≥500 30 125 0.08 0.07
T123-320 400-6500 150 320（90） 5 1.75/1005 2.5 ≤200 ≥500 30 125 0.075 0.07
T133-400 400-6500 30 400（93） 8 1.75/1256 2.5 ≤200 ≥500 100 125 0.045 0.018
T133-500 400-6500 50 500（120） 10 1.50/1570 2.5 ≤250 ≥500 100 125 0.035 0.1
T133-630 400-6500 50 630（120） 12 1.45/1980 2.5 ≤250 ≥500 100 125 0.035 0.1
T143-400 400-6500 50 400（96） 9 2.15/1256 2.5 ≤300 ≥1000 250 125 0.034 0.24

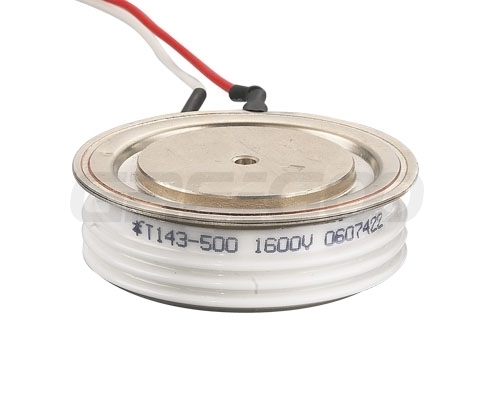

T143-500 400-6500 30 500（94） 11 1.80/1570 2.5 ≤250 ≥1000 250 125 0.034 0.24
T143-630 400-6500 30 630（93） 13 1.65/1978 2.5 ≤250 ≥1000 250 125 0.03 0.24

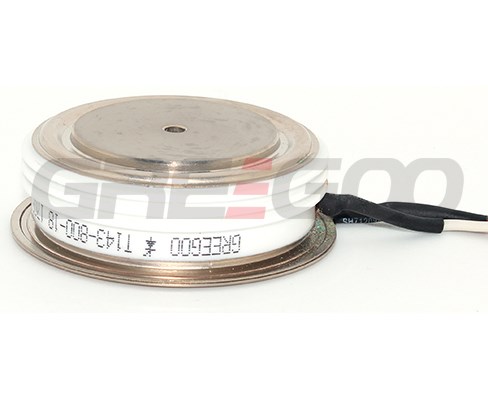

T143-800 400-6500 30 800（85） 14 1.75/2512 2.5 ≤250 ≥1000 250 125 0.03 0.24
T143-1000 400-6500 70 1000（100） 19 1.50/3140 2.5 ≤250 ≥1000 250 125 0.028 0.16

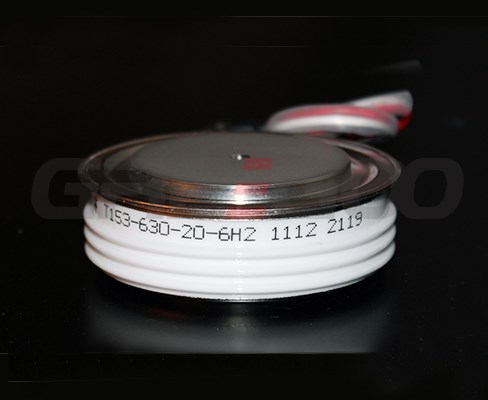

T153-630 400-6500 50 630（93） 15 2.10/1978 2.5 ≤250 ≥1000 250 125 0.024 0.5
T153-800 400-6500 50 800（90） 20 1.90/2512 2.5 ≤250 ≥1000 250 125 0.024 0.5
T153-1600 400-6500 100 1600（100） 30 1.50/5024 2.5 ≤200 ≥1000 250 125 0.016 0.33
T153-2000 400-6500 100 2000(95) 36 1.45/6280 2.5 ≤200 ≥1000 250 125 0.016 0.33
T253-500 400-6500 150 530（80） 10 2.40/1570 2.5 ≤250 ≥1000 250 125 0.026 0.55
T253-800 400-6500 70 800（91） 17 2.10/2500 2.5 ≤250 ≥1000 250 125 0.02 0.55
T253-1000 400-6500 70 1000（88） 22 1.80/3140 2.5 ≤250 ≥1000 250 125 0.02 0.55

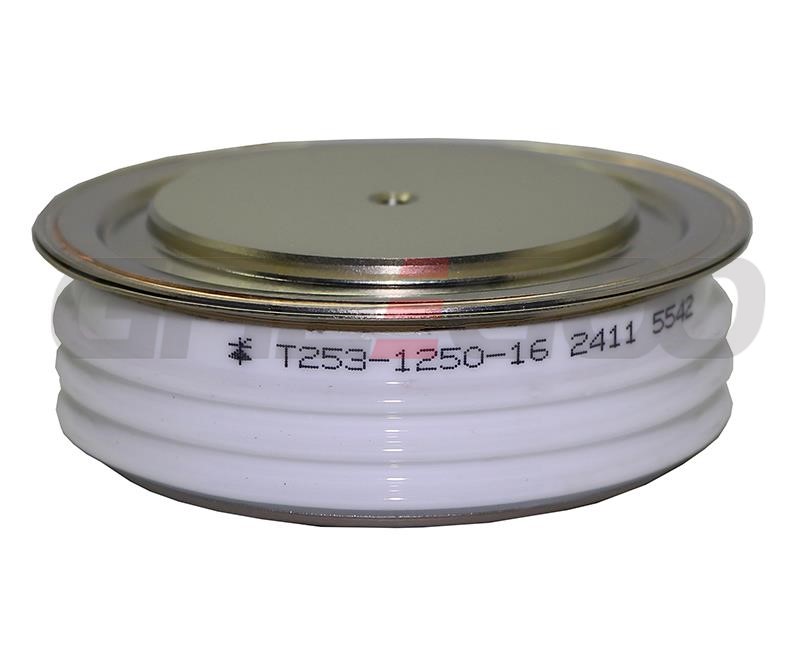

T253-1250 400-6500 70 1250（92） 28 1.60/3925 2.5 ≤250 ≥1000 250 125 0.018 0.55
T173-2000 400-6500 200 2000（90） 49 1.65/6280 2.5 ≤250 ≥1000 250 125 0.011 1.2
T173-2500 400-6500 100 2700（85） 52 1.70/7850 2.5 ≤250 ≥1000 250 125 0.01 1.2
T173-3200 400-6500 200 3360（95） 60 1.50/10050 2.5 ≤250 ≥1000 250 125 0.01 1.2
T173-4000 400-6500 200 4000（85) 62 1.50/12560 2.5 ≤250 ≥1000 250 125 0.01 1.2
