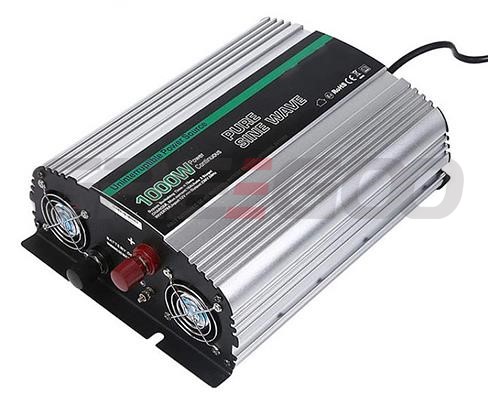

Pure Sine Wave Power Inverter with Battery Charger 1000W
Home Products Electrical Fittings & AccessoriesPower SuppliesPure Sine Wave Power Inverter with Battery Charger 1000W
Pure Sine Wave Power Inverter with Battery Charger 1000W

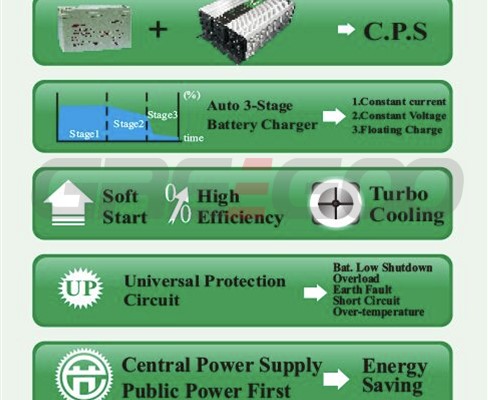

Product Features:
- Both DC and AC inputs
- Surge ratings of 2000W; Maximum bypass current of 10A
- 3 Stage Battery Charger
- AVR Function
-
Compatible with GEL, AGM, Sealed Lead Acid, Flooded Lead Acid batteries.
Specification:
|
Model |
GPS1000-121 |
GPS1000-122 |
GPS1000-241 |
GPS1000-242 |
|
|
Rated power |
1000W |
||||
|
Surge power |
2000W (Few seconds) |
||||
|
Inverter part |
Input voltage |
12V |
24V |
||
|
Output voltage |
110V |
230V |
110V |
230V |
|
|
Charger part |
Input voltage |
90-120VAC |
190-265VAC |
||
|
Output voltage |
12V |
24V |
|||
|
Max. current |
10A |
5A |
|||
|
Transfer time |
15ms |
||||
|
Output waveform |
Pure Sine Wave |
||||
|
Protection function |
Bat. Low voltage alarm & shut down, over temperature, over voltage, short circuit, reverse polarity, erath leakage, overload |
||||
|
Cooling fan |
By load control |
||||
|
AC input protection |
AVR function |
||||
|
Dimension |
33*23*10cm (L*W*H) |
||||
|
N.W/unit |
3560g |
||||
|
QTY/Ctn |
2pcs |
||||
|
Warranty |
24 months |
||||
|
Meas./Ctn |
40*31.5*38cm |
||||
|
Certification |
CE-EMC/LVD, RoHS |
||||
|
Packing |
Gift box |
||||
|
Packing list |
1 * 1000W Power Inverter; 1 * User Manual; Spare fuse; DC connect cable*1 set |
||||
For details, please download the datasheet via the above datasheet button.
