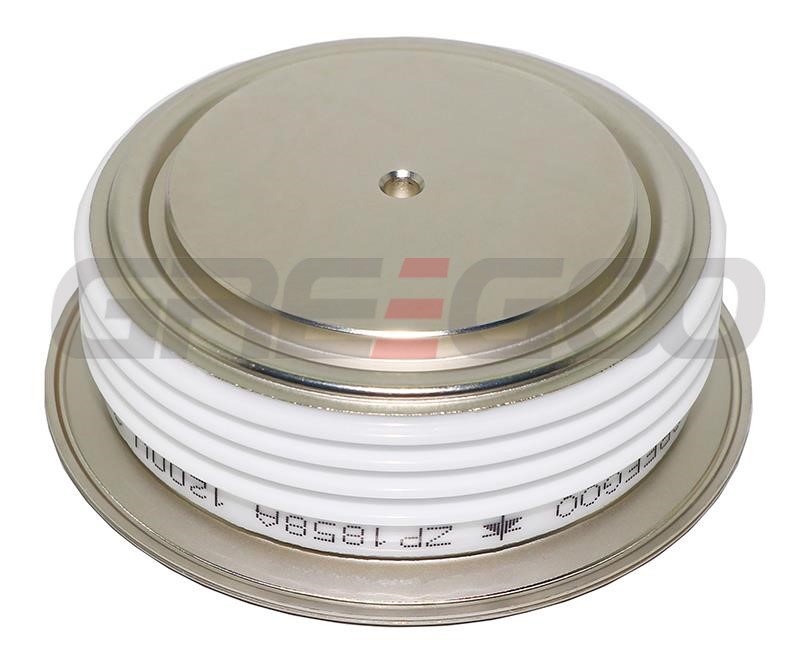

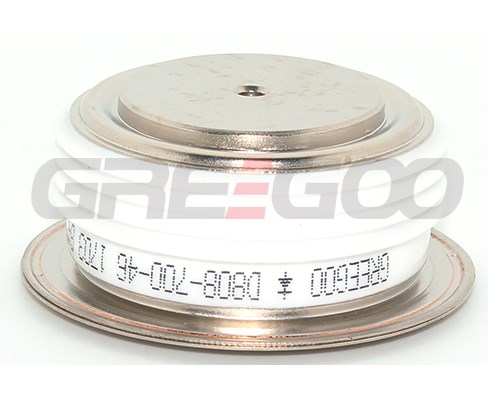

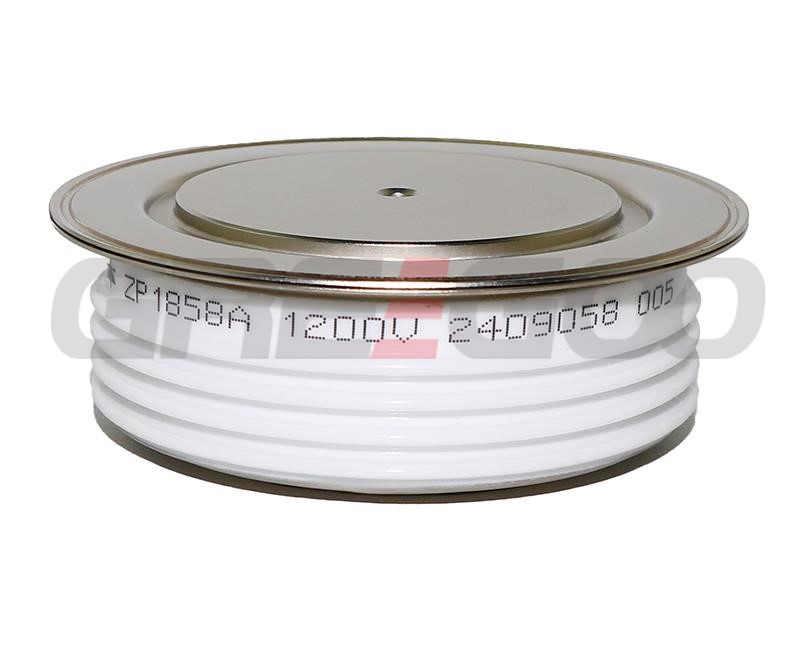

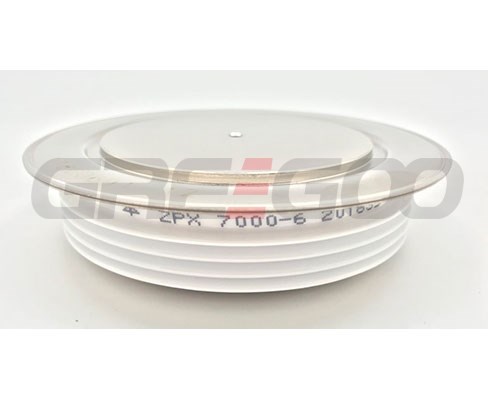

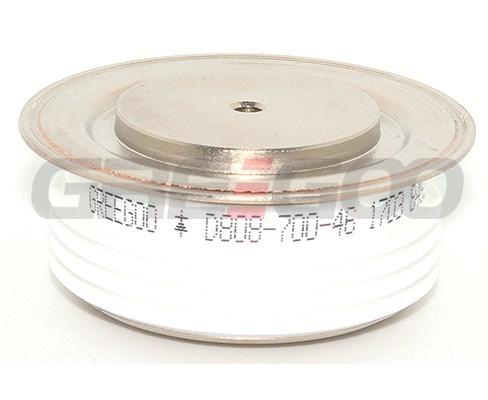

Rectifier Diodes (Alloying Type)
Rectifier Diodes (Alloying Type)
- Locomotive traction and drive
- Hiht Voltage Direct Current Transmission(HVDC)
- SVC
- High current power source
- Eletric motor soft starter
- Industrial drive
- Motor excitation
- Induction heating
Type= VRRM/100 |
IT(AV)@ Tc=70oC |
VDRMVRRM | ITSM@ TVJM &10ms |
VTM@ITM |
VTO@ TVJM |
rT@ TVJM |
TVJM | RthJC | RthCH | F±10% | Outline | |
A | V | kA | A | V | V | mΩ | oC | K/W | K/W | kN | ||
UP to 1400V | ||||||||||||

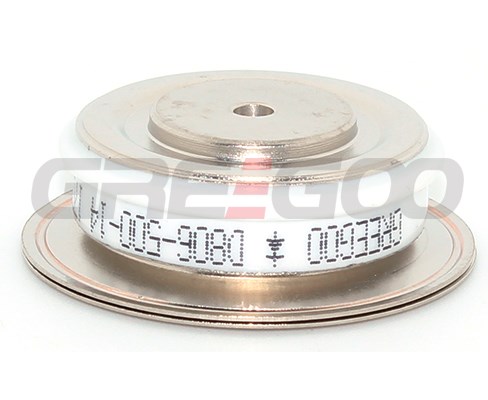

D806-500 | 520 | 600-1400 | 5.9 | 800 | 1.45 | 0.8 | 0.657 | 190 | 0.08 | 0.02 | 5 | 19/42/13 |
D807-1300 | 1360 | 600-1400 | 15.2 | 1500 | 1.3 | 0.78 | 0.257 | 190 | 0.035 | 0.01 | 10 | 29/47/14 |
D808-1500 | 1510 | 600-1400 | 16.8 | 1500 | 1.2 | 0.78 | 0.188 | 190 | 0.035 | 0.008 | 15 | 34/58/26 |
D809-2700 | 2770 | 600-1400 | 31 | 1500 | 1.05 | 0.78 | 0.092 | 190 | 0.02 | 0.005 | 22 | 47/75/26 |
D804-3200 | 3220 | 600-1400 | 35.8 | 3000 | 1.15 | 0.77 | 0.073 | 190 | 0.018 | 0.005 | 30 | 53/85/26 |
D811-4600 | 4650 | 600-1400 | 45 | 3000 | 1.05 | 0.76 | 0.051 | 190 | 0.0125 | 0.004 | 45 | 63/100/26 |
D822-6000 | 6080 | 600-1400 | 60 | 3000 | 1.05 | 0.76 | 0.035 | 190 | 0.01 | 0.003 | 56 | 73/110/26 |
UP to 2200V | ||||||||||||
D806-400 | 410 | 1600-2200 | 4.9 | 800 | 1.85 | 0.82 | 1.11 | 175 | 0.08 | 0.02 | 5 | 19/42/13 |
D807-900 | 990 | 1600-2200 | 12.5 | 1500 | 1.6 | 0.82 | 0.433 | 175 | 0.035 | 0.01 | 10 | 29/47/14 |
D808-1100 | 1100 | 1600-2200 | 13.9 | 1500 | 1.45 | 0.82 | 0.318 | 175 | 0.035 | 0.008 | 15 | 34/58/26 |

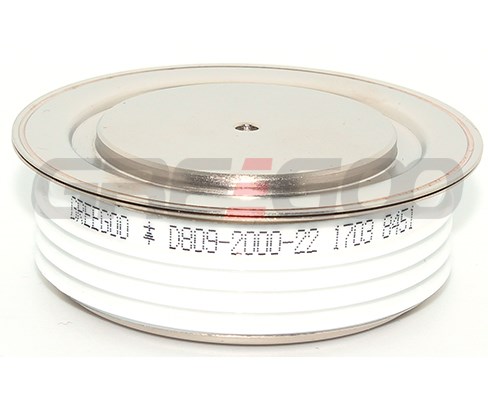

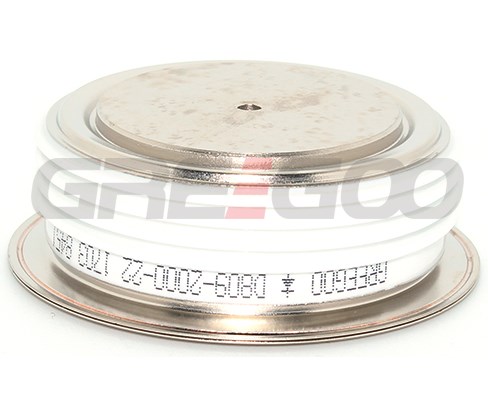

D809-2000 | 2030 | 1600-2200 | 25.7 | 1500 | 1.2 | 0.82 | 0.156 | 175 | 0.02 | 0.005 | 22 | 47/75/26 |
D804-2300 | 2360 | 1600-2200 | 29.8 | 3000 | 1.35 | 0.81 | 0.125 | 175 | 0.018 | 0.005 | 30 | 53/85/26 |
D811-3400 | 3430 | 1600-2200 | 42.2 | 3000 | 1.2 | 0.79 | 0.086 | 175 | 0.0125 | 0.004 | 45 | 63/100/26 |
D822-4400 | 4460 | 1600-2200 | 56.4 | 3000 | 1.15 | 0.81 | 0.059 | 175 | 0.01 | 0.003 | 56 | 73/110/26 |
UP to 3400V | ||||||||||||
D807-800 | 850 | 2400-3400 | 10.8 | 1500 | 1.95 | 0.88 | 0.613 | 175 | 0.035 | 0.01 | 10 | 29/47/14 |
D808-900 | 960 | 2400-3400 | 12 | 1500 | 1.7 | 0.88 | 0.45 | 175 | 0.035 | 0.008 | 15 | 34/58/26 |
D809-1800 | 1830 | 2400-3400 | 23 | 1500 | 1.35 | 0.88 | 0.2 | 175 | 0.02 | 0.005 | 22 | 47/75/26 |
D804-2000 | 2050 | 2400-3400 | 25.8 | 3000 | 1.55 | 0.86 | 0.18 | 175 | 0.018 | 0.005 | 30 | 53/85/26 |
D811-2900 | 2980 | 2400-3400 | 36.5 | 3000 | 1.35 | 0.82 | 0.128 | 175 | 0.0125 | 0.004 | 45 | 63/100/26 |
D822-3900 | 3920 | 2400-3400 | 49.5 | 3000 | 1.25 | 0.85 | 0.084 | 175 | 0.01 | 0.003 | 56 | 73/110/26 |
UP to 4500V | ||||||||||||
D808-600 | 640 | 3600-4500 | 10.6 | 1500 | 2 | 0.96 | 0.604 | 150 | 0.035 | 0.008 | 15 | 34/58/26 |
D809-1200 | 1200 | 3600-4500 | 19.6 | 1500 | 1.55 | 0.96 | 0.296 | 150 | 0.02 | 0.005 | 22 | 47/75/26 |
D804-1300 | 1370 | 3600-4500 | 22.8 | 3000 | 1.8 | 0.96 | 0.235 | 150 | 0.018 | 0.005 | 30 | 53/85/26 |
D811-1900 | 1980 | 3600-4500 | 32 | 3000 | 1.6 | 0.96 | 0.162 | 150 | 0.0125 | 0.004 | 45 | 63/100/26 |
D822-2600 | 2680 | 3600-4500 | 42.6 | 3000 | 1.35 | 0.8 | 0.135 | 150 | 0.01 | 0.003 | 56 | 73/110/26 |
UP to 6500V | ||||||||||||
D822-2100 | 2140 | 4600-5200 | 35 | 3000 | 1.6 | 1 | 0.195 | 150 | 0.01 | 0.003 | 56 | 73/110/26 |
D808-600 | 600 | 5000-6500 | 9.5 | 1500 | 1.9 | 0.95 | 0.8 | 150 | 0.035 | 0.008 | 15 | 34/58/26 |
D809-1000 | 1060 | 5400-6500 | 16.5 | 1500 | 1.7 | 1.05 | 0.45 | 150 | 0.02 | 0.005 | 22 | 47/75/26 |
UP to 8500V | ||||||||||||
D808-500 | 570 | 6600-7200 | 8 | 1500 | 1.95 | 1.1 | 0.85 | 150 | 0.035 | 0.008 | 15 | 34/58/26 |
D809-900 | 960 | 6600-7200 | 11 | 1500 | 1.8 | 1.2 | 0.5 | 150 | 0.02 | 0.005 | 22 | 47/75/26 |
D808-400 | 420 | 7500-8500 | 7 | 1500 | 2 | 1.15 | 0.9 | 150 | 0.035 | 0.008 | 15 | 34/58/26 |
D809-900 | 910 | 7500-8500 | 11 | 1500 | 1.85 | 1.25 | 0.55 | 150 | 0.02 | 0.005 | 22 | 47/75/26 |
