Single phase and 3 phase half controlled bridge rectifier 30A to 500A
Home Products Diode Bridge ModuleHalf Controlled Bridge RectifierSingle phase and 3 phase half controlled bridge rectifier 30A to 500A
Product Details

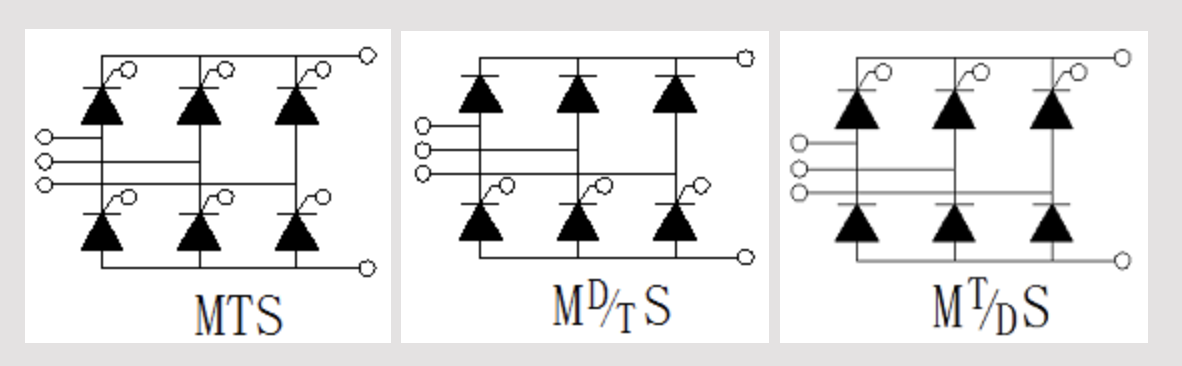

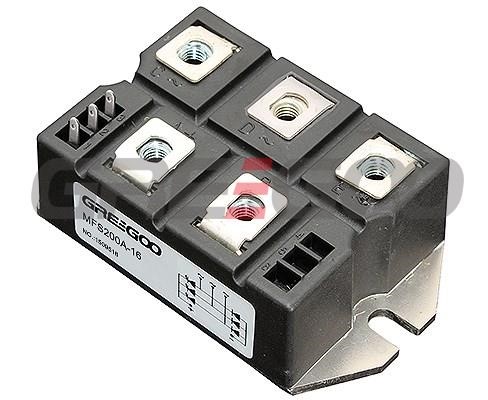

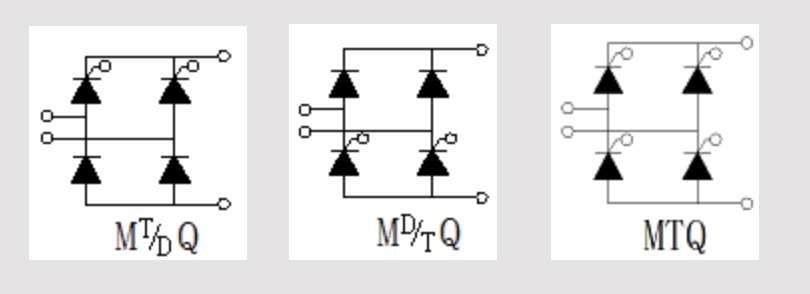

Single phase and 3 phase half controlled bridge rectifier 30A to 500A
Type | VDRM | ID | TC | IFSM | I2t | VT0 | RT0 | VISO | IRRM | VFM | IFM | VGT | IGT | IH | Rth(c-h) | Rth(j-c) |
VRRM | ITSM | (A2S) | VF0 | RF0 | IDRM | VTM | ITM | (℃/W) | ||||||||
(V) | (A) | (℃) | (A) | (V) | (mΩ) | (V) | (mA) | (V) | (A) | (V) | (mA) | (mA) | ||||
MTQ-30 | 600-2500 | 30 | 85 | 570 | 1620 | 0.9 | 7.31 | 2500 | 10 | 1.54 | 45 | 2 | 100 | 100 | 0.1 | 1.018 |
MTQ-60 | 600-2500 | 60 | 85 | 1095 | 5995 | 0.9 | 3.84 | 2500 | 10 | 1.5 | 90 | 2 | 100 | 100 | 0.1 | 0.584 |
MTQ-100 | 600-2500 | 100 | 85 | 1560 | 12200 | 0.8 | 2.72 | 2500 | 10 | 1.48 | 150 | 2 | 100 | 100 | 0.1 | 0.376 |
MTQ-150 | 600-2500 | 150 | 85 | 2680 | 35900 | 0.8 | 1.92 | 2500 | 15 | 1.52 | 225 | 2.5 | 100 | 100 | 0.05 | 0.244 |
MTQ-200 | 600-2500 | 200 | 80 | 4600 | 105800 | 0.8 | 1.64 | 2500 | 15 | 1.62 | 300 | 2.5 | 150 | 150 | 0.05 | 0.195 |
MTQ-250 | 600-2500 | 250 | 80 | 6780 | 229800 | 0.85 | 1.14 | 2500 | 20 | 1.6 | 375 | 2.5 | 150 | 150 | 0.05 | 0.149 |
MTQ-300 | 600-2500 | 300 | 80 | 7800 | 304200 | 0.75 | 1.06 | 2500 | 20 | 1.58 | 450 | 2.5 | 150 | 150 | 0.02 | 0.128 |
MTQ-400 | 600-2500 | 400 | 80 | 8450 | 357000 | 0.75 | 1.02 | 2500 | 30 | 1.64 | 600 | 3 | 200 | 200 | 0.02 | 0.111 |
MTQ-500 | 600-2500 | 500 | 80 | 9880 | 488000 | 0.8 | 0.76 | 2500 | 30 | 1.65 | 750 | 3 | 200 | 200 | 0.02 | 0.102 |
MTS-60 | 600-2500 | 60 | 85 | 510 | 1300 | 0.9 | 7.94 | 2500 | 10 | 1.52 | 75 | 2 | 100 | 100 | 0.1 | 1.153 |
MTS-100 | 600-2500 | 100 | 85 | 920 | 4230 | 0.9 | 4.4 | 2500 | 10 | 1.45 | 120 | 2 | 100 | 100 | 0.1 | 0.749 |
MTS-160 | 600-2500 | 160 | 85 | 1200 | 7200 | 0.9 | 3.38 | 2500 | 10 | 1.48 | 165 | 2 | 100 | 100 | 0.1 | 0.536 |
MTS-200 | 600-2500 | 200 | 85 | 1780 | 15800 | 0.8 | 2.49 | 2500 | 10 | 1.5 | 270 | 2.5 | 100 | 100 | 0.1 | 0.329 |
MTS-300 | 600-2500 | 300 | 85 | 2380 | 28300 | 0.8 | 2.07 | 2500 | 10 | 1.51 | 330 | 2.5 | 150 | 150 | 0.1 | 0.268 |
MTS-400 | 600-2500 | 400 | 85 | 4680 | 110000 | 0.9 | 1.4 | 2500 | 20 | 1.6 | 480 | 2.5 | 150 | 150 | 0.5 | 0.172 |
MTS-500 | 600-2500 | 500 | 85 | 6600 | 218000 | 0.9 | 1.09 | 2500 | 20 | 1.58 | 600 | 2.5 | 150 | 150 | 0.05 | 0.139 |
MTS-600 | 600-2500 | 600 | 85 | 7830 | 307000 | 0.9 | 0.85 | 2500 | 20 | 1.56 | 750 | 2.5 | 200 | 200 | 0.05 | 0.113 |
MTS-700 | 600-2500 | 700 | 85 | 8850 | 392000 | 0.7 | 0.94 | 2500 | 20 | 1.58 | 900 | 3 | 200 | 200 | 0.05 | 0.096 |
MTS-800 | 600-2500 | 800 | 80 | 9800 | 480000 | 0.7 | 0.82 | 2500 | 30 | 1.6 | 1050 | 3 | 250 | 250 | 0.03 | 0.091 |
