SKKD series diode modules
Home Products Thyristor Diode ModuleSemikron Thyristor Diode ModuleSKKD series diode modules
SKKD series diode modules

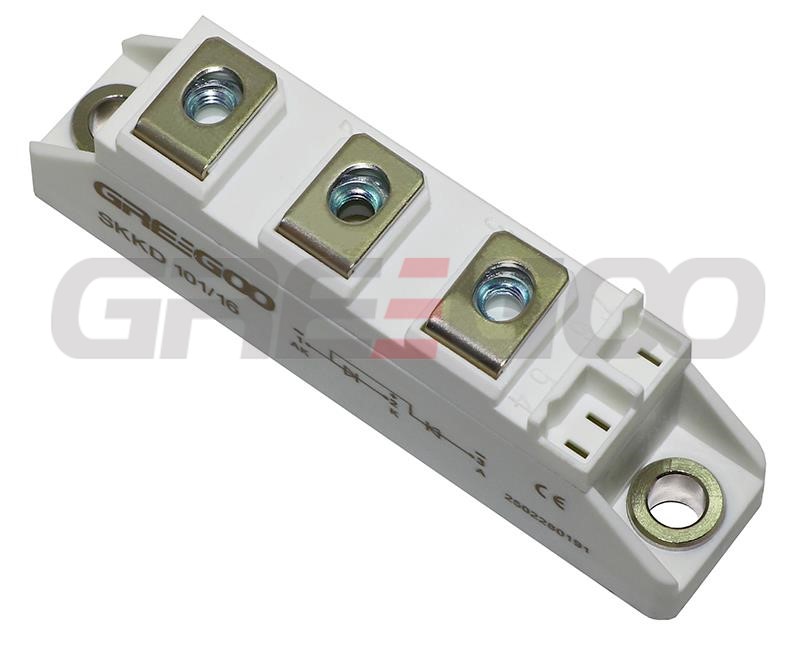

Modules SKKD Semikron are non-controllable rectifiers for AC/DC converters in monolithic design with dual topology of semiconductors (two switches): diode-diode type. Used in DC and AC circuits with loads to 701A and reverse pulse voltages up to 2200V.
SKKD rectifier diode modules are used in various power equipment - power and control units, power regulators, converters, controllers, welding equipment, and as rectifiers for AC converters.
Frame | Type | IFAV (Tcase) |
VBRM | IFSM | I²t | V(TO) | rT | Tvj max |
Rthj-c) (per chip) |
W | Package, Dimensions LxBxH |
A | V | A | kA².s | V | mΩ | ℃ | C/W | g | mm | ||
SKKD26 | SKKD26/12 | 31 (85℃) 26 (93℃) |

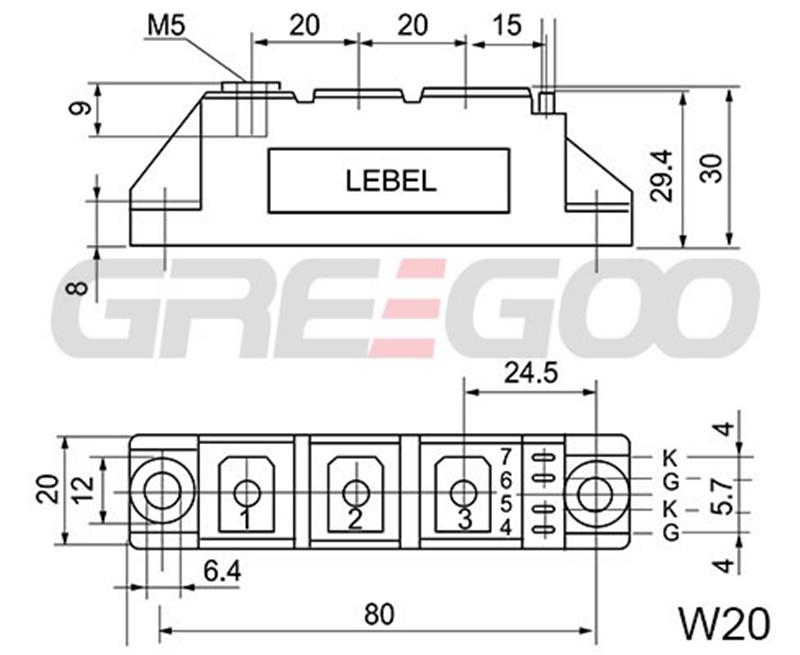

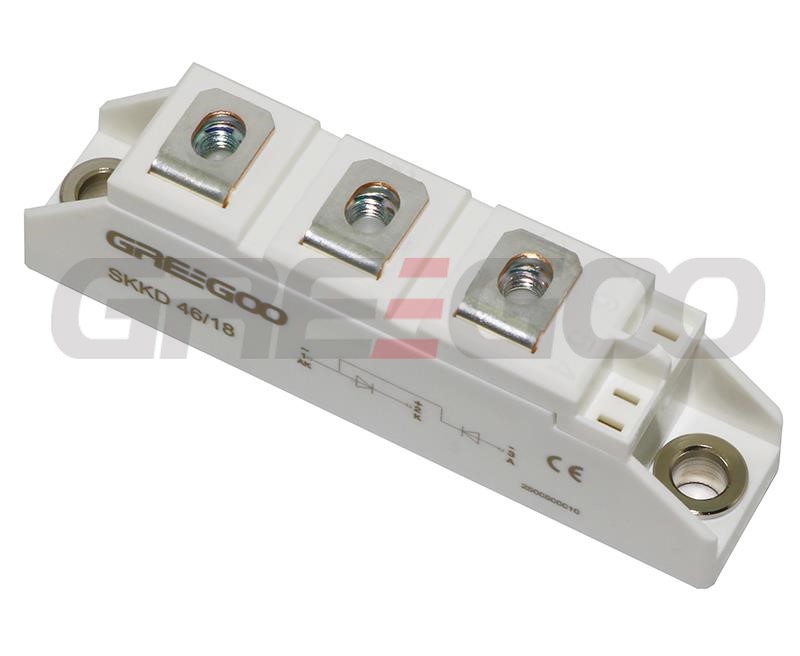

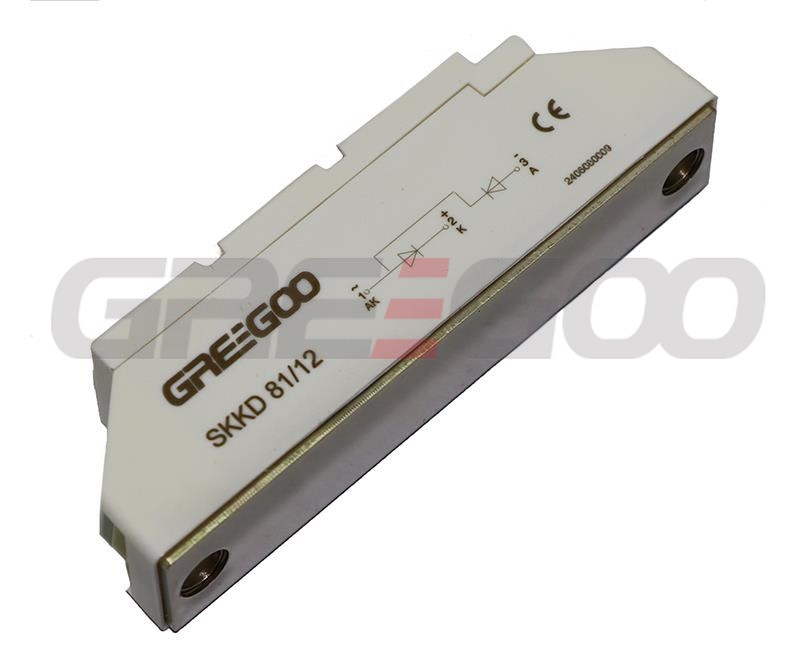

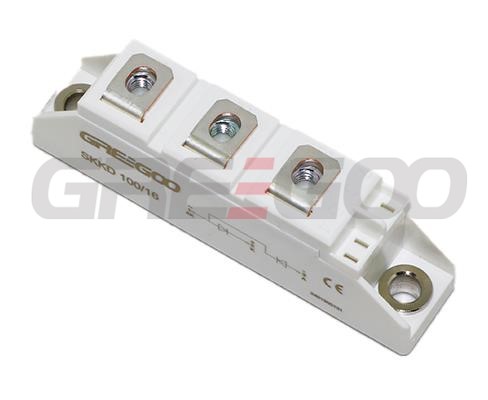

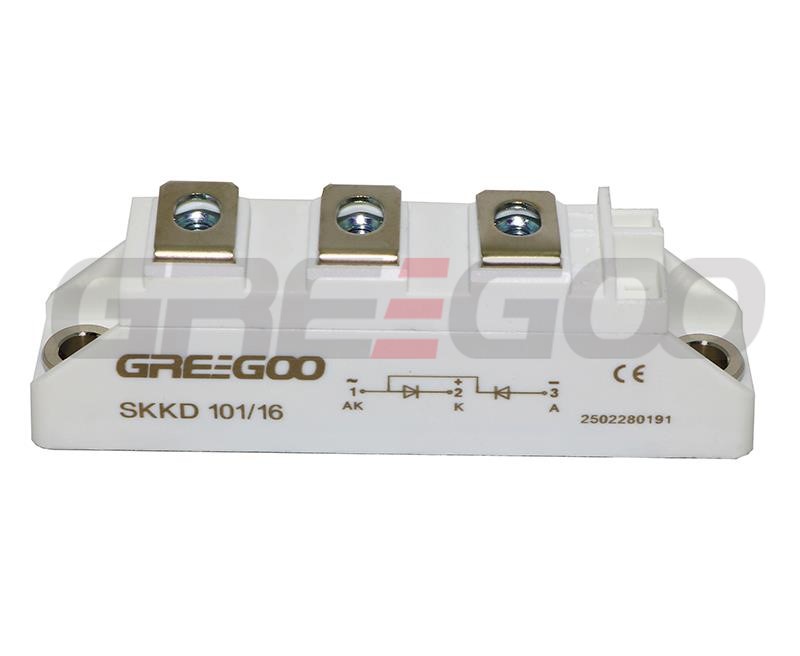

1200-1600 | 480 | 1.15 | 0.85 | 6.0 | 125 | 1.00 | 95 | SEMIPACK1 93x20x30 |
SKKD26/14 | |||||||||||
SKKD26/16 | |||||||||||
SKKD46 | SKKD46/08 | 47 (85℃) 45 (86℃) |
800-1800 | 600 | 1.80 | 0.85 | 5.0 | 125 | 0.06 | 95 | SEMIPACK1 93x20x30 |
SKKD46/12 | |||||||||||
SKKD46/14 | |||||||||||
SKKD46/16 | |||||||||||
SKKD46/18 | |||||||||||
SKKD81 | SKKD81/08 | 82(85℃) 80(87℃) |
800-1800 | 1750 | 15 | 0.85 | 1.8 | 125 | 0.40 | 95 | SEMIPACK1 93x20x30 |
SKKD81/12 | |||||||||||
SKKD81/14 | |||||||||||
SKKD81/16 | |||||||||||
SKKD81/18 | |||||||||||
SKKD81 H4 | SKKD81/20 H4 | 82(85℃) 80(87℃) |
2000-2200 | 1750 | 15 | 0.85 | 1.8 | 125 | 0.40 | 95 | SEMIPACK1 93x20x30 |
SKKD81/22 H4 | |||||||||||
SKKD100 | SKKD100/04 | 100(85℃) 67(100℃) |
400-1800 | 2000 | 20 | 0.85 | 1.3 | 125 | 0.35 | 95 | SEMIPACK1 93x20x30 |
SKKD100/06 | |||||||||||
SKKD100/08 | |||||||||||
SKKD100/12 | |||||||||||
SKKD100/14 | |||||||||||
SKKD100/16 | |||||||||||
SKKD100/18 | |||||||||||
SKKD101 | SKKD101/16 | 134(85℃) 101(100℃) |
1600 | 2000 | 20 | 0.87 | 2.45 | 130 | 0.19 | 75 | SEMIPACK1 93x20x30 |
SKKD152 H1 | SKKD152/16 H1 | 171(85℃) 132(100℃) |

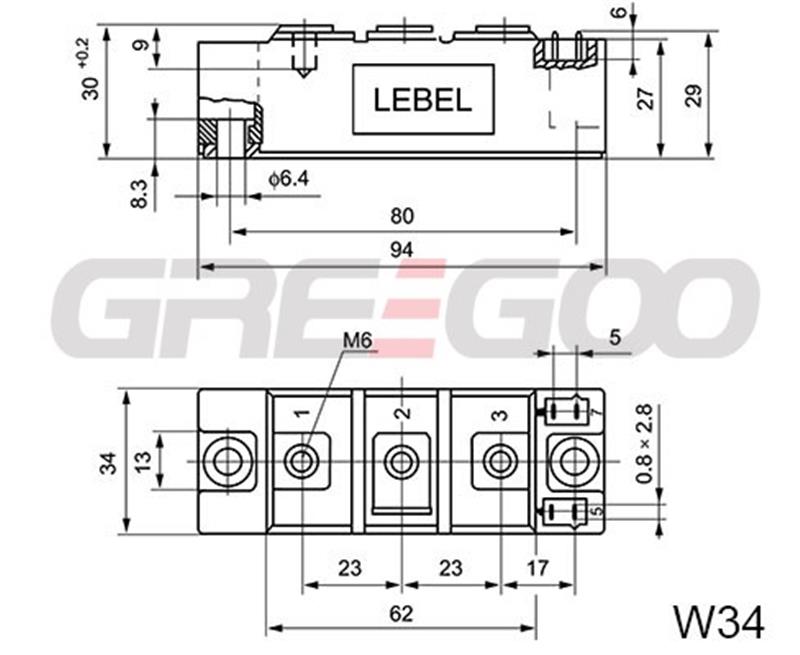

1600 | 4500 | 101 | 0.82 | 1.35 | 135 | 0.20 | 165 | SEMIPACK 2 94x34x30 |
SKKD162 | SKKD162/08 | 195(85℃) 160(95℃) |
800-2200 | 5000 | 125 | 0.85 | 1.20 | 125 | 0.18 | 165 | SEMIPACK2 94x34x30 |
SKKD162/12 | |||||||||||
SKKD162/14 | |||||||||||
SKKD162/16 | |||||||||||
SKKD162/18 | |||||||||||
SKKD162/20 H4 | |||||||||||
SKKD162/22 H4 | |||||||||||
SKKD212 | SKKD212/12 | 212(85℃) 165(100℃) |
1200-1800 | 5500 | 151 | 0.75 | 1.05 | 135 | 0.18 | 165 | SEMIPACK 2 94x34x30 |
SKKD212/14 | |||||||||||
SKKD212/16 | |||||||||||
SKKD212/18 | |||||||||||
SKKD250 | SKKD250/16 | 255(85℃) 199(100℃) |
1600-1800 | 6000 | 180 | 0.77 | 1.00 | 135 | 0.13 | 165 | SEMIPACK2 94x34x30 |
SKKD250/18 | |||||||||||
SKKD260 | SKKD260/08 | 260(85℃) 185(100℃) |

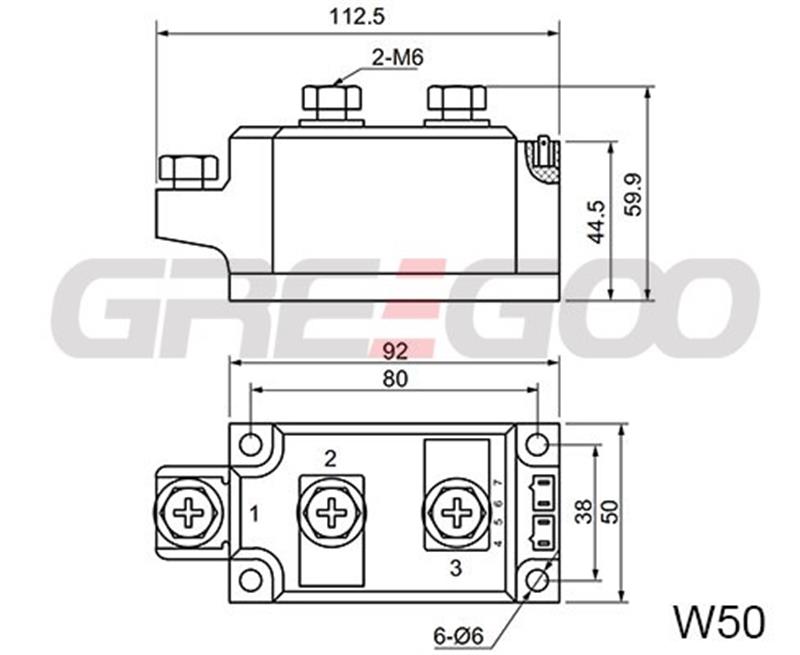

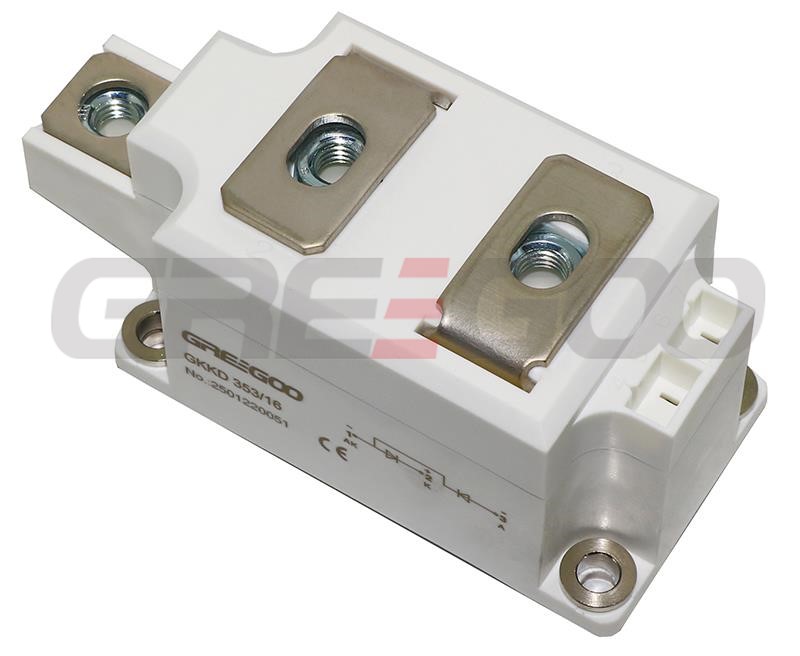

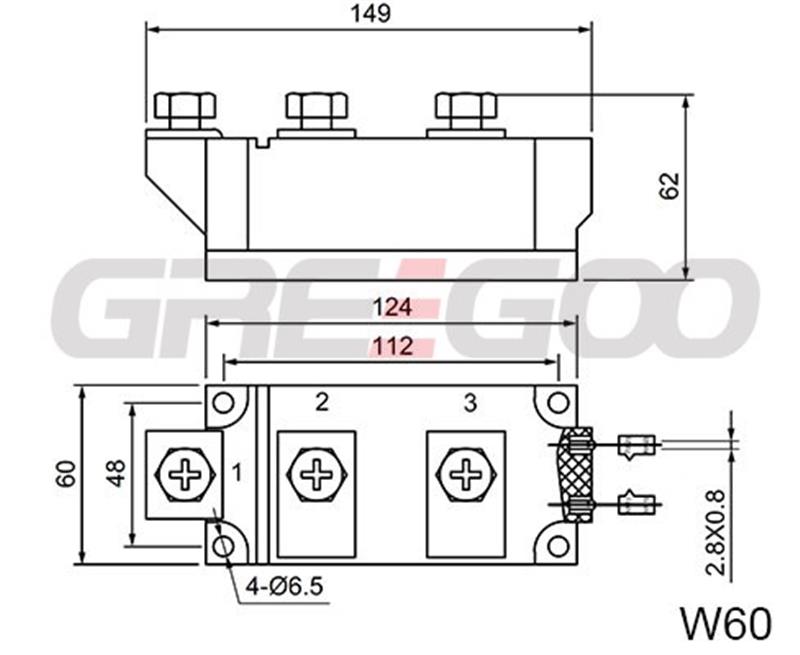

800-2200 | 10000 | 500 | 0.90 | 0.37 | 130 | 0.14 | 600 | SEMIPACK 3 115x50x52 |
SKKD260/12 | |||||||||||
SKKD260/14 | |||||||||||
SKKD260/16 | |||||||||||
SKKD260/18 | |||||||||||
SKKD260/20 H4 | |||||||||||
SKKD260/22 H4 | |||||||||||
SKKD353 | SKKD353/12 | 350(85℃) 260(100℃) |
1200-1800 | 9500 | 451 | 0.84 | 0.75 | 130 | 0.09 | 600 | SEMIPACK 3 115x50x52 |
SKKD353/14 | |||||||||||
SKKD353/16 | |||||||||||
SKKD353/18 | |||||||||||
SKKD380 | SKKD380/08 | 380(100℃) | 800-2200 | 10000 | 500 | 0.80 | 0.35 | 150 | 0.11 | 600 | SEMIPACK 3 115x50x52 |
SKKD380/12 | |||||||||||
SKKD380/14 | |||||||||||
SKKD380/16 | |||||||||||
SKKD380/18 | |||||||||||
SKKD380/20 H4 | |||||||||||
SKKD380/22 H4 | |||||||||||
SKKD700 | SKKD700/08 | 700(100℃) | 800-2200 | 22000 | 2420 | 0.75 | 0.20 | 150 | 0.065 | 1420 | SEMIPACK 5 150x60x52 |
SKKD700/12 | |||||||||||
SKKD700/14 | |||||||||||
SKKD700/16 | |||||||||||
SKKD700/18 | |||||||||||
SKKD700/20 H4 | |||||||||||
SKKD700/22 H4 | |||||||||||
SKKD701 | SKKD701/12 | 701(100℃) 820(85℃) |
1200-2200 | 22500 | 2530 | 0.70 | 0.28 | 160 | 0.072 | 1400 | SEMIPACK 5 150x60x52 |
SKKD701/16 | |||||||||||
SKKD701/18 | |||||||||||
SKKD701/22 H4 |
Need more information?
Contact us to request pricing, availability and customization options.
