SM35 busbar insulator
Home Products MoreFittings and accessoriesSM35 busbar insulator
Product Details

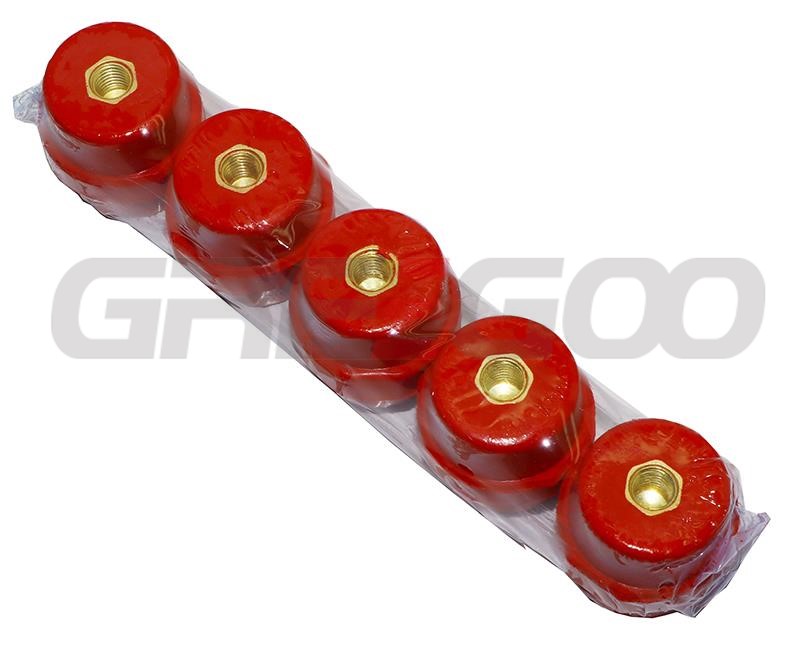

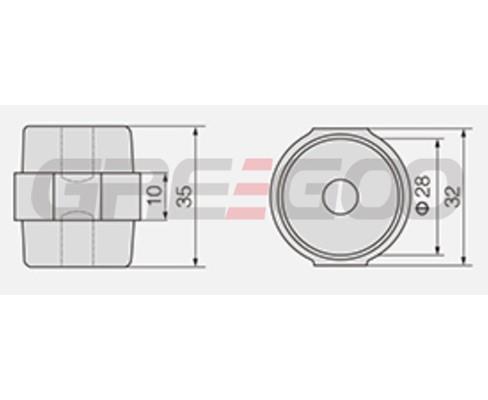

SM35 busbar insulator
|
Model |
SM35-M10, SM35-M8 |
|
Nut Specification |
M8, M10 |
|
Thread Depth |
10mm, 12mm |
|
Nut Material |
Copper |
|
Strength |
|
|
Axial Tensile |
3000N |
|
Bending |
4000N |
|
Tightening Torque |
12N·m |
|
Insulation Resistance |
>500mΩ |
|
Working Voltage |
600V |
|
Impulse Voltage |
5000V |
|
Leakage Current |
<1mA at 2000V Working Voltage |
