Standard Recovery Diode SKN/R45
Home Products Stud Rectifier DiodeSemikron Stud DiodeStandard Recovery Diode SKN/R45
Product Details

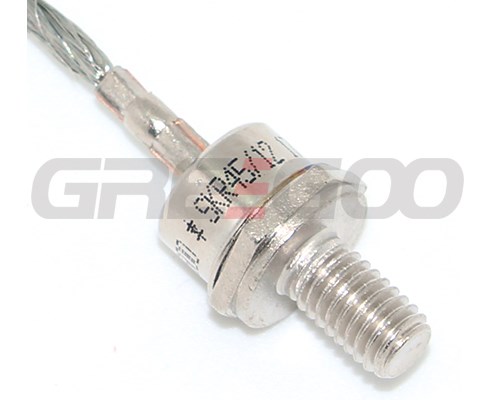

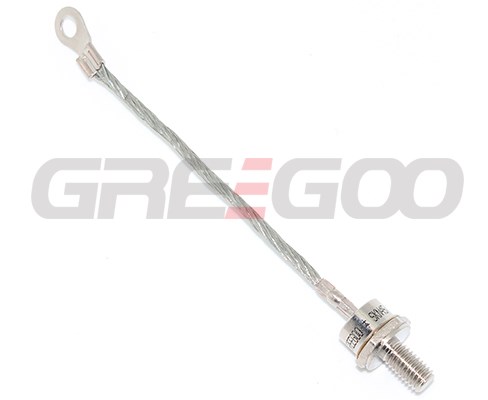

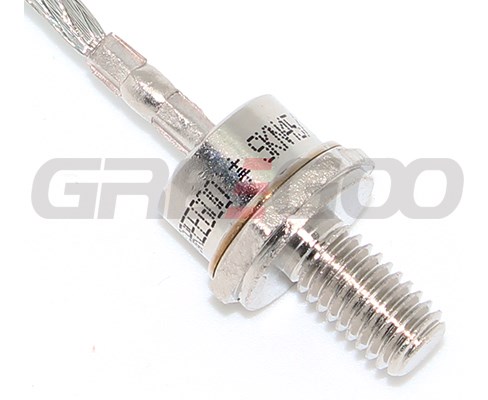

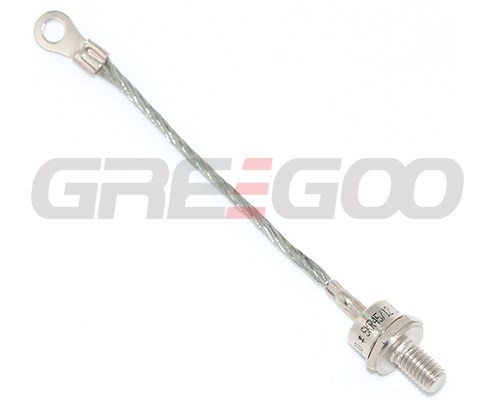

Standard Recovery Diode SKN/R45
Type | IF(AV) | VFM/IFM | IFRMS | VRRM | IRRM | Rjc | M2 | Wt | Outline | |
THS55℃ | 25℃ | |||||||||
A | V | A | A | V | mA | ℃/W | N/m | kg | ||
SKN45 | 45 | 1.4 | 135 | 75 | 200-1600 | ≤10 | ≤1.0 | ≤2.0 | 0.05 | SKD5L |
SKR45 | 45 | 1.4 | 135 | 75 | 200-1600 | ≤10 | ≤1.0 | ≤2.0 | 0.05 |
