Ultra slim 3 phase Diode Bridge Module
Using high thermal conductivity DBC insulation sheet, the insulation is greater than or equal to AC 3000V. The ultra slim MDS200/250-...FS Glass Passivated Three Phase Rectifier Bridge Modul is convenient to install the rectifier bridge together with the IGBT power device DBC board. Small size, light weight, high vacuum welding, excellent temperature characteristics and power cycle capability. The forward voltage drop is small.
Applications:
Three-phase rectifiers for power supplies
Rectifiers for DC motor field supplies
Battery charger rectifiers
Input rectifiers for variable frequency drives
Product Features:
Glass passivated chip
Blocking voltage range: 1200V to 1800V

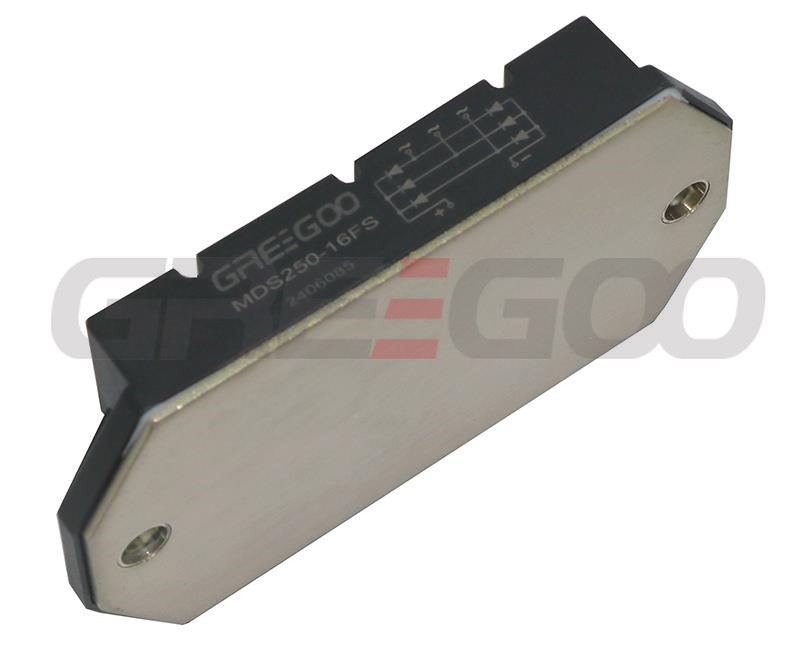

Heat transfer through aluminum oxide DBC ceramic isolated metal baseplate
Part Numbers |
VRRM |
lF(AV) |
Tc |
lfsm 10ms |
I2t 10ms |
Vfo |
Rfo |
Vfm@Ifm Tj=25℃ |
Rth(j-c) per diode |
Rth
|
|
(V) |
(A) |
(℃) |
(A) |
(A²s) |
V |
mQ |
(V) |
(A) |
(℃ /W) |
(℃/w) |
|

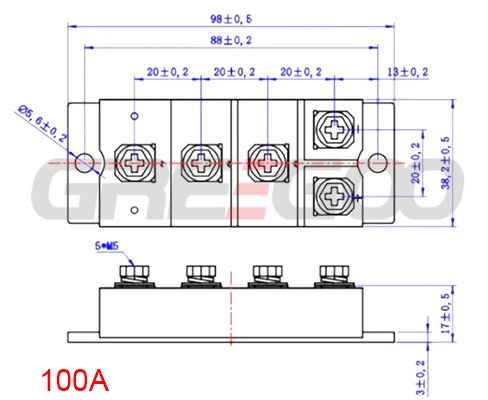

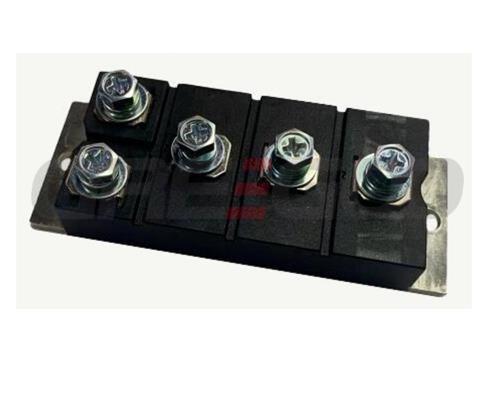

MDS100-16FS | 1600 | 100 | 107 | 940 | 4400 | 1 | 3.2 | 1.35 | 100 | 0.159 | 0.1 |
MDS150-16FS |
1600 |
150 |
90 |
1500 |
11250 |
0.85 |
3.5 |
1.3 |
150 |
0.64 |
0.03 |

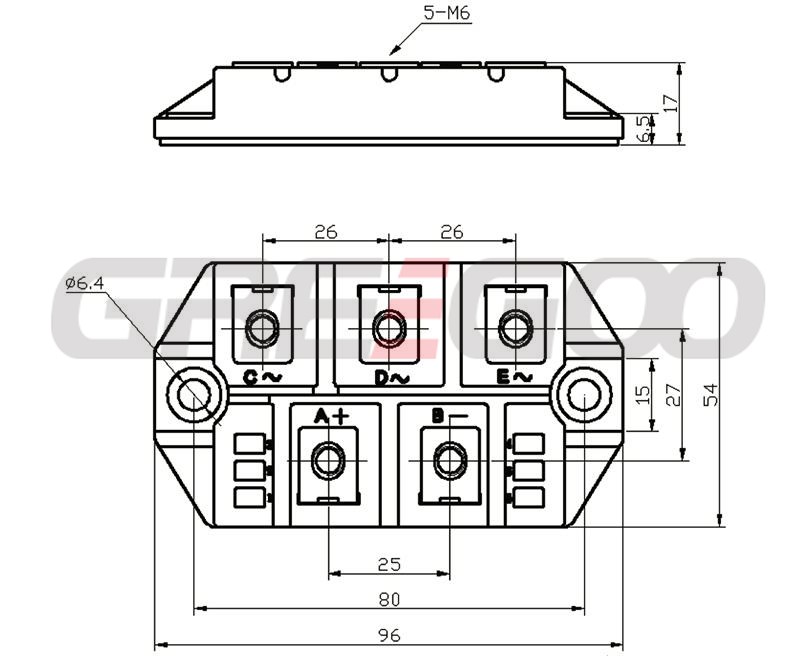

MDS200-16FS |
1600 |
200 |
90 |
2000 |
20000 |
0.85 |
3 |
1.3 |
200 |
0.54 |
0.03 |

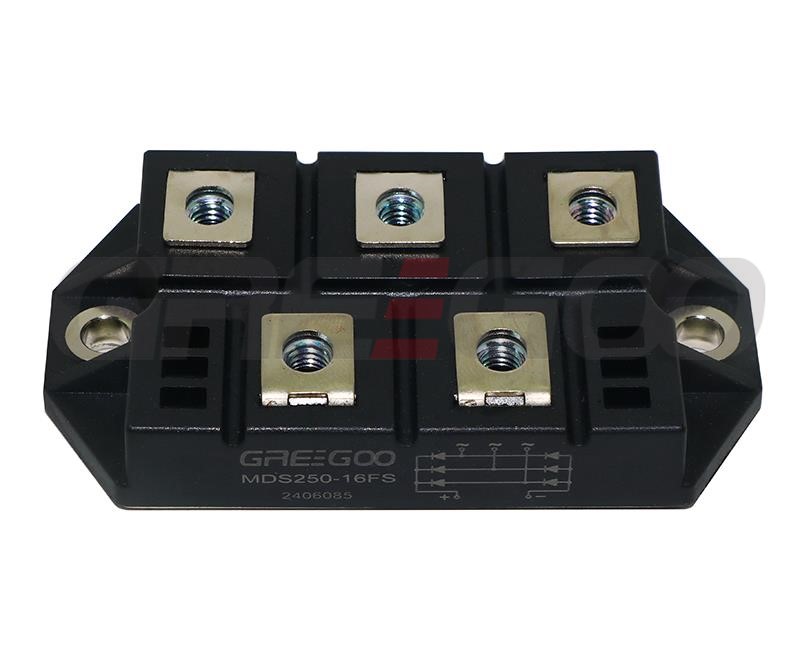

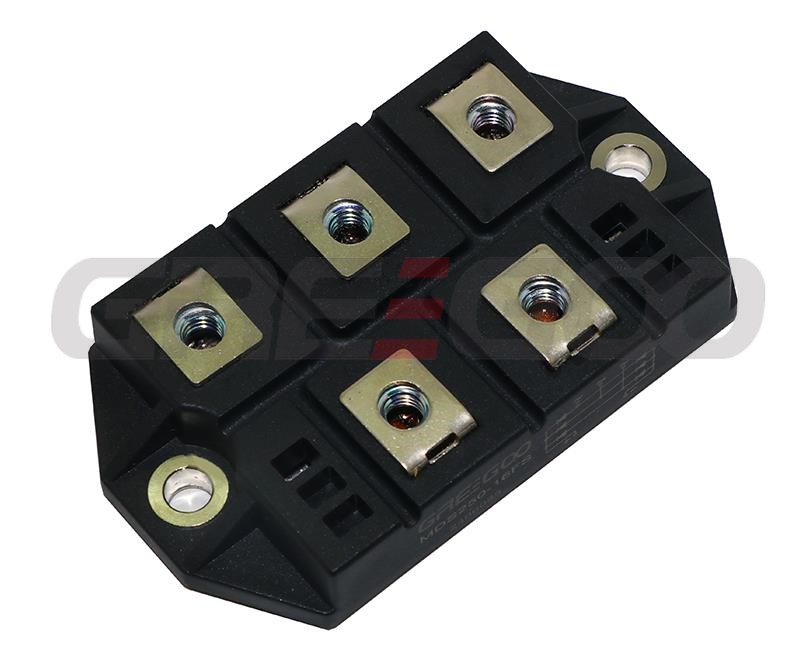

MDS250-16FS |
1600 |
250 |
95 |
2500 |
32000 |
0.85 |
2.7 |
1.45 |
250 |
0.45 |
0.03 |
