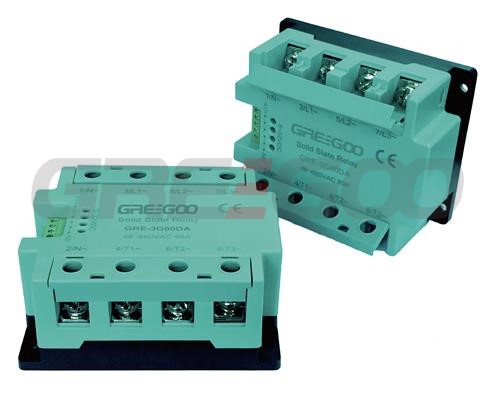

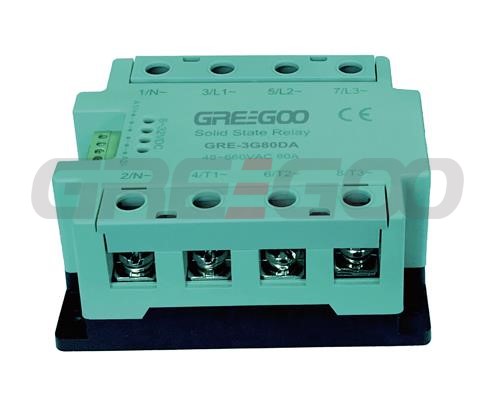

Three phase Industry Solid State Relays

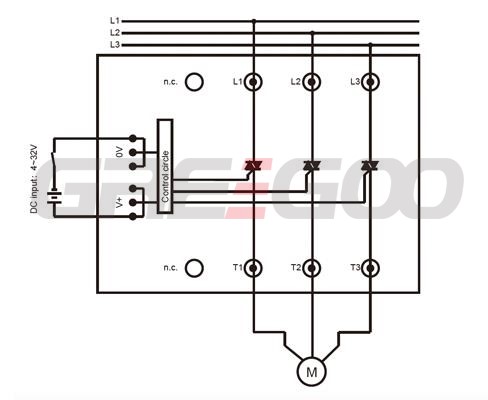

GRE-3G series 3-phase solid state relay is designed for high current application,such as heating, motor driver etc. The maximum current is up to 120Amps.


Model

GRE-3G10DA

GRE-3G40DA

GRE-3G65DA

GRE-3G100DA

Operating Current（Arms）

10A

40A

65A

100A

Model

GRE-3G25DA

GRE-3G50DA

GRE-3G80DA

GRE-3G120DA

Operating Current（Arms）

25A

50A

80A

120A

Input Voltage 4-32VDC 4-32VDC
 4-32VDC
 4-32VDC

Operating Voltage（Vrms）

48 to 660

48 to 660

48 to 660

48 to 660

Must turn on voltage ＞2.5VDC

＞2.5VDC

＞2.5VDC
 ＞2.5VDC
Must turn off voltage
 <1VDC
 <1VDC
 <1VDC
 <1VDC

Repetitive peak off-state voltage（Vpk）

1600

1600

1600

1600

Surge peak on-state current＠10ms（Apk）

600

850

1350

1950

Peak on-state voltage（Vpk）

<1.8v

<1.8v

<1.8v

<1.8v

Thermal resistance（Rjc）（℃／W）

0.35

0.2

0.13

0.13

I2t Value for fusing／12t＠10ms（A2S）

1600

3250

12000

18000

Off-state Leakage current（mA）

<1

<1

<1

<1

Critical rate of rise of voltage dv／dt（V／us）

≥1000

≥1000

≥1000

≥1000

Maximum Turn-On Time

1/2 cycle

1/2 cycle

1/2 cycle

1/2 cycle

Maximum Turn-Off Time

1/2 cycle

1/2 cycle

1/2 cycle

1/2 cycle

Dielectric Strength

2500Vrms

2500Vrms
 2500Vrms
 2500Vrms

Insulation Resistance

50MΩ @500Vdc

50MΩ @500Vdc
 50MΩ @500Vdc
 50MΩ @500Vdc

Insulation Resistance

-30 to 80℃
 -30 to 80℃
 -30 to 80℃
 -30 to 80℃

Storage Temperature

-40 to 125℃
 -40 to 125℃
 -40 to 125℃
 -40 to 125℃

Weight

243g 243g
 243g
 243g
